American Terminal REALYM 25-Pack 12V 5-Pin SPDT Automotive Relay & Socket Kit - 30/40 Amp Bosch/Tyco Style Relays with Metal Mounting Tabs for Cars, Trucks, RVs, Marine & Powersports

The American Terminal REALYM 25-Pack Relay Kit includes ten heavy-duty 12V 5-pin SPDT automotive relays and ten matching relay sockets with pre-wired pigtails, making it the ideal solution for automotive, marine, RV, ATV, UTV, motorcycle, trailer, and industrial electrical installations. Designed in the industry-standard Bosch/Tyco configuration, each relay supports 40A Normally Open (NO) and 30A Normally Closed (NC) switching, making them perfect for controlling high-current accessories such as LED lights, horns, fuel pumps, cooling fans, power windows, door locks, and security systems.

Key Features

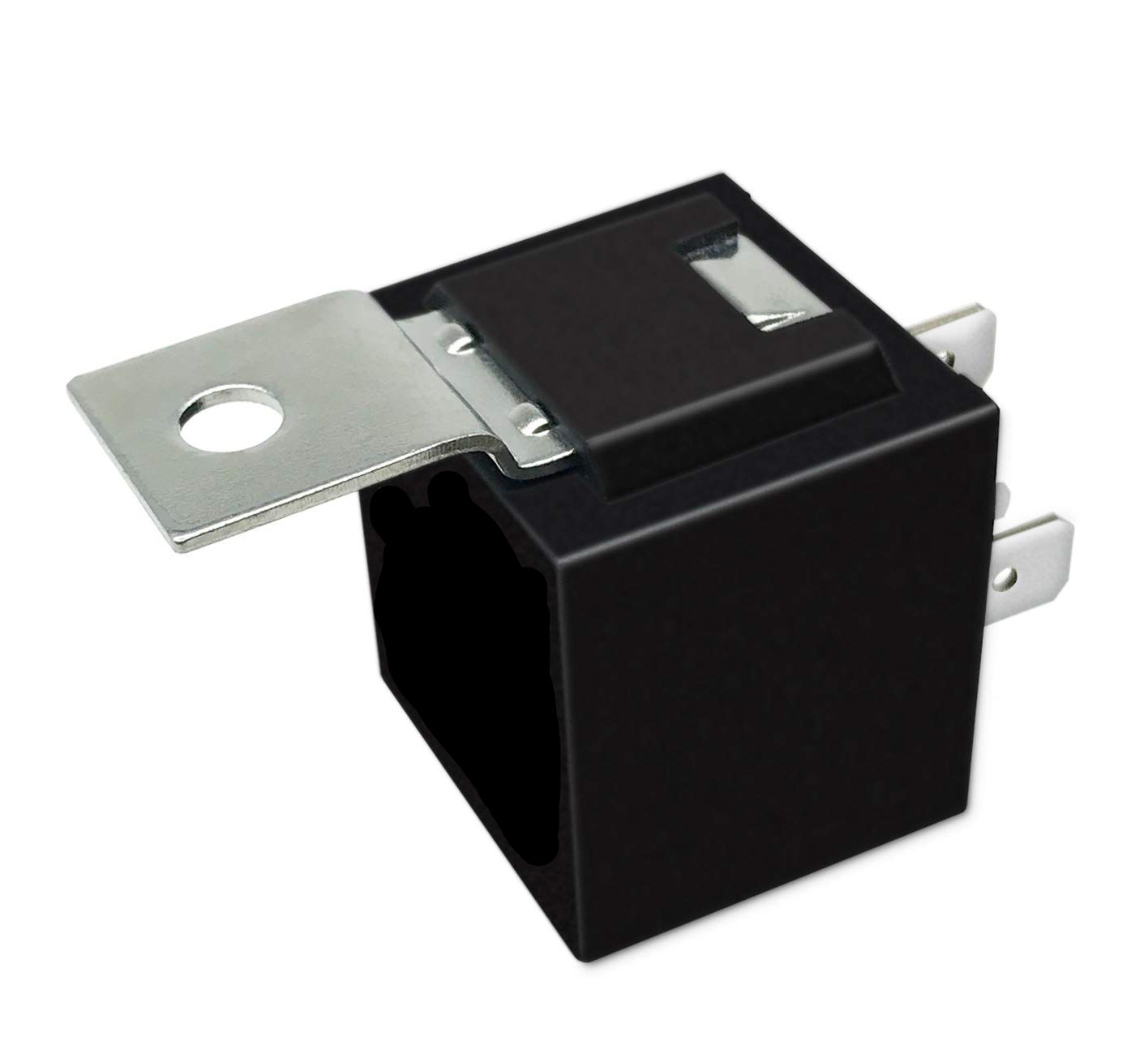

⚡ 10 COMPLETE RELAYS - Includes ten 12V 5-pin SPDT relays, with integrated metal mounting tabs for fast, professional installation.

🔌 STANDARD BOSCH/TYCO STYLE DESIGN - Universal 5-pin SPDT relay configuration is compatible with most automotive, marine, and industrial relay applications.

🚗 30/40 AMP HIGH-CURRENT SWITCHING - Rated for 40A Normally Open (NO) and 30A Normally Closed (NC) operation for dependable control of high-power electrical accessories.

🛡 HEAVY-DUTY PRE-WIRED SOCKETS - Durable impact-resistant relay sockets include color-coded wiring for simplified installation and secure electrical connections.

🔧 VERSATILE 12V APPLICATIONS - Ideal for LED light bars, fog lights, horns, cooling fans, fuel pumps, air horns, door locks, power windows, alarm systems, trailers, marine electronics, RVs, and custom wiring projects.

Product Description

The American Terminal REALYM Relay Kit is engineered for professional installers and DIY enthusiasts who require reliable high-current switching performance. Each relay features a Single Pole Double Throw (SPDT) configuration, allowing both Normally Open and Normally Closed operation for maximum installation flexibility.

Built using the widely accepted Bosch/Tyco-style footprint, these relays fit most standard relay sockets.

Designed for long service life under demanding conditions, these relays are suitable for automotive, marine, RV, off-road, commercial, agricultural, and industrial electrical systems.

General Features

• 25-Pack Automotive Relay Kit

• Includes 25 Relays

• Bosch/Tyco Style Relay Design

• 12 Volt DC Operation

• Single Pole Double Throw (SPDT)

• 5-Pin Configuration

• Integrated Metal Mounting Tabs

• High Current Switching Capability

• Professional Installation Grade

• Universal Automotive Compatibility

Specifications

Relay

• Operating Voltage: 12V DC

• Relay Type: SPDT (Single Pole Double Throw)

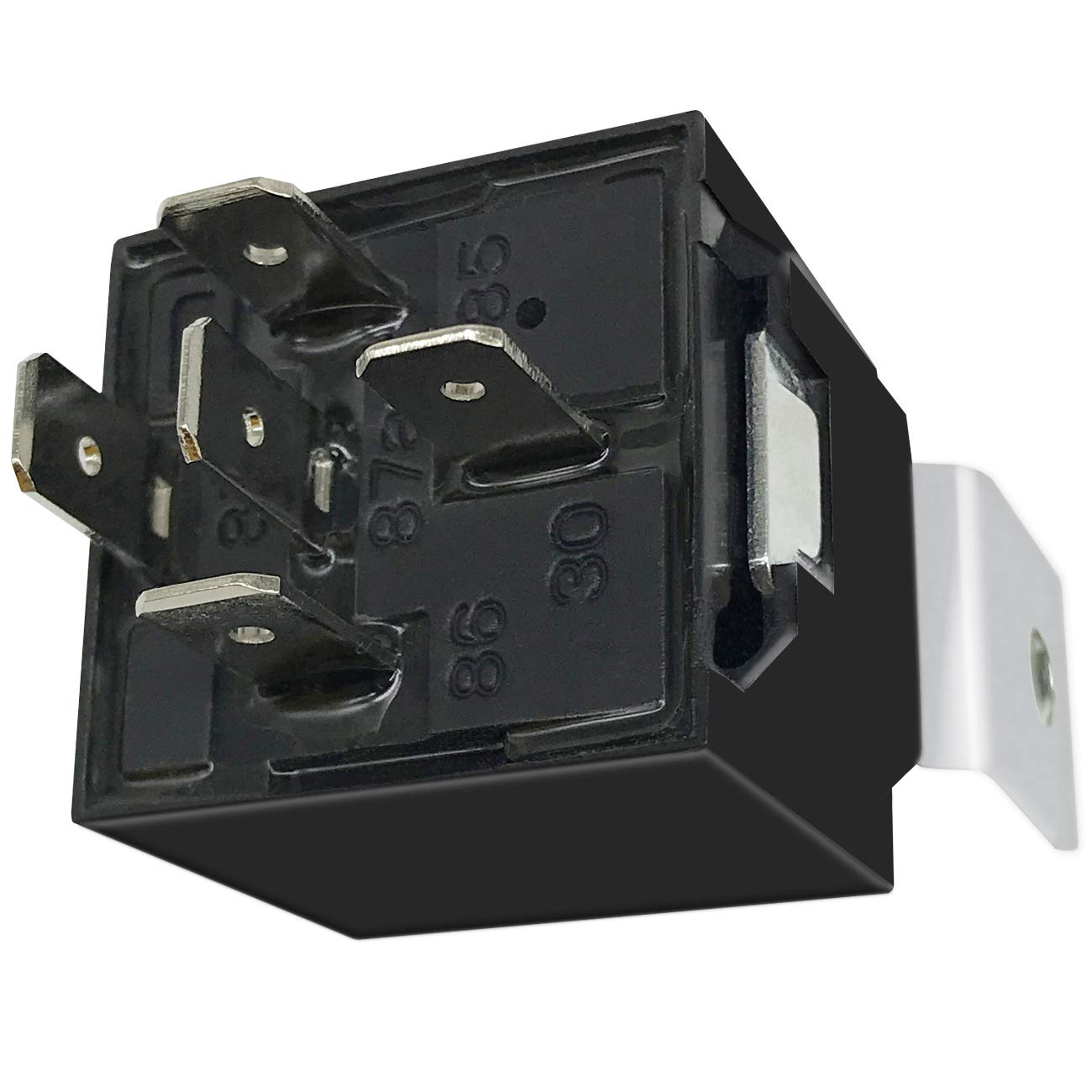

• Pin Configuration: 5-Pin

• Normally Open Rating: 40A @ 14V DC

• Normally Closed Rating: 30A @ 14V DC

• Maximum Operating Voltage: 27V DC

• Maximum Operating Current: 40A

Performance

• Operating Temperature: -40°C to +85°C

• Operate Time: 10 ms

• Release Time: 10 ms

• Mechanical Life: 1,000,000 Operations

• Electrical Life: 100,000 Operations

• Insulation Resistance: 100 MΩ

• Dielectric Strength: 500 VAC

Dimensions

• Relay Size: 28 × 28 × 25 mm

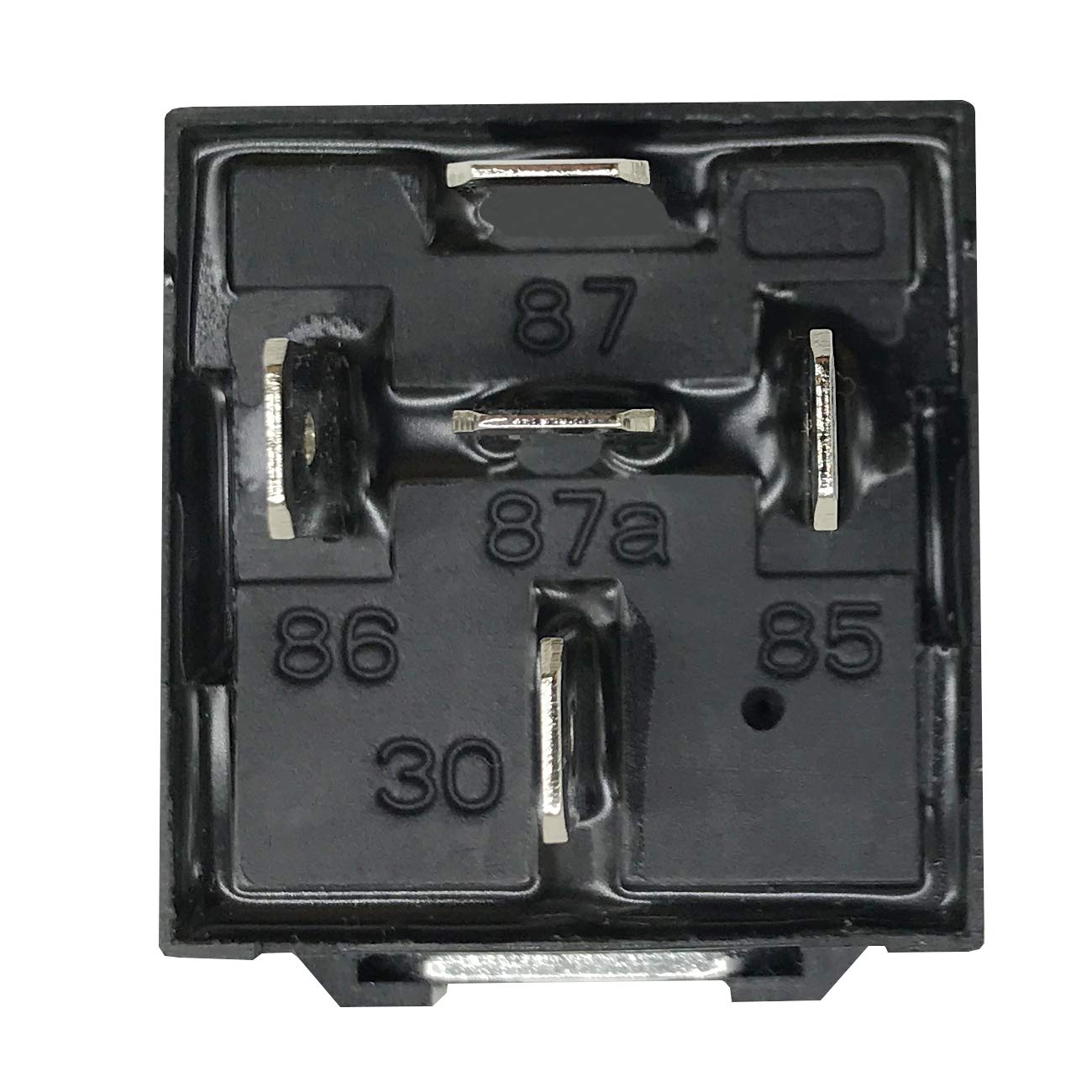

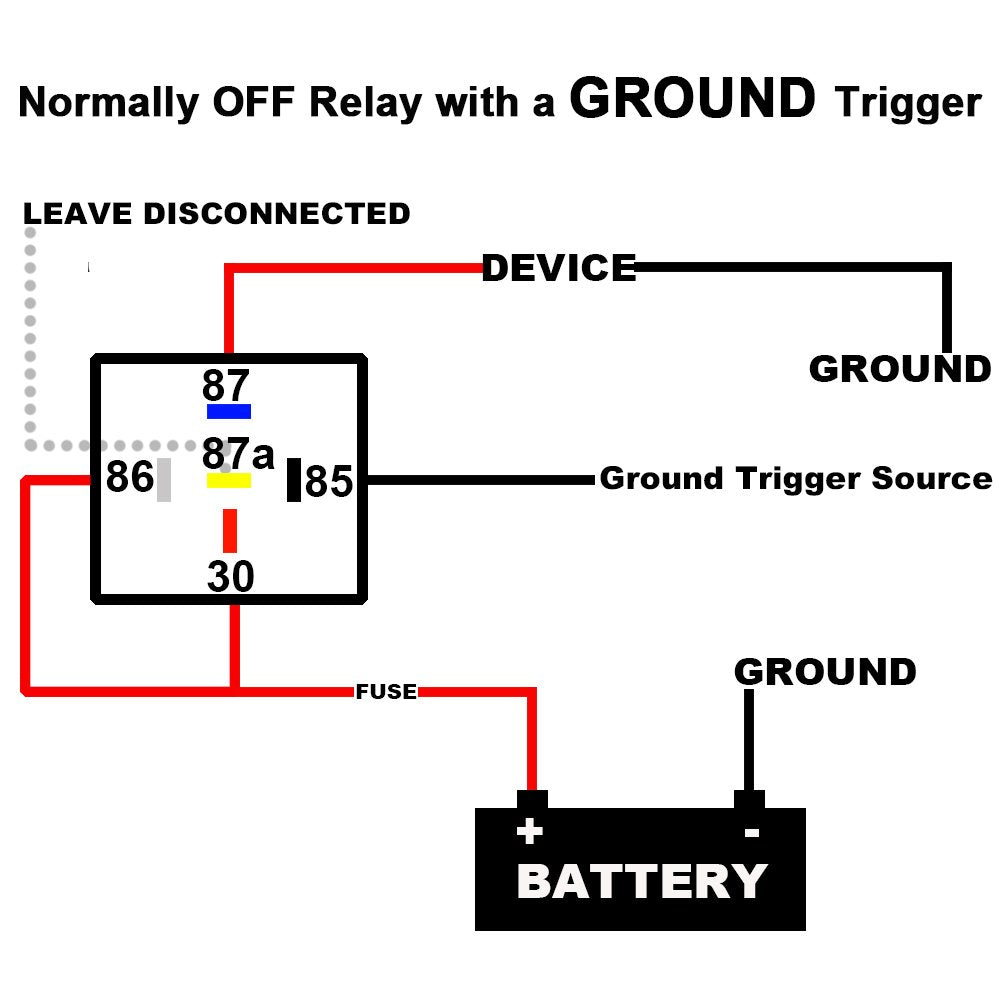

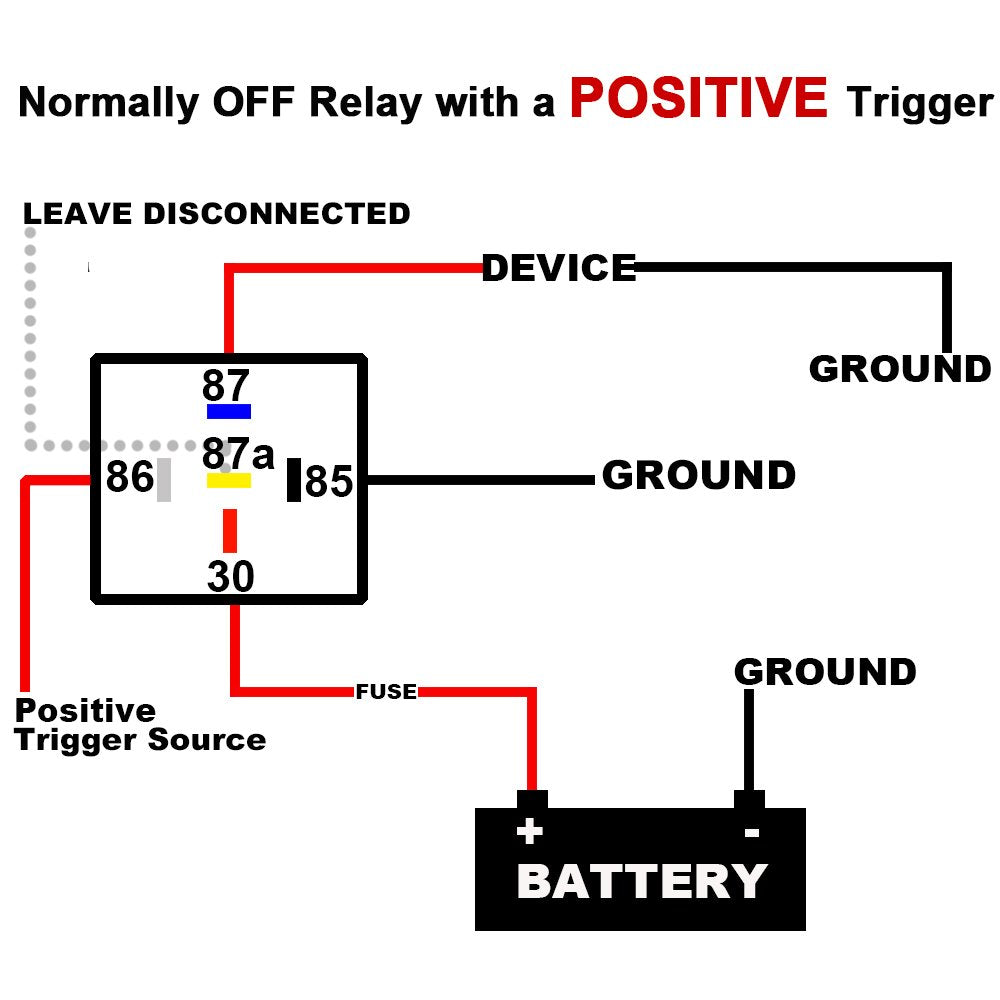

Socket Wire Identification

• Yellow - Pin 87 (Normally Open)

• Red - Pin 87a (Normally Closed)

• White - Pin 86 (Trigger)

• Blue - Pin 30 (Power Input)

• Black - Pin 85 (Ground)

Perfect For

• Cars

• Trucks

• SUVs

• RVs

• Boats

• Marine Applications

• ATVs

• UTVs

• Motorcycles

• Off-Road Vehicles

• Trailer Wiring

• LED Light Bars

• Driving Lights

• Cooling Fans

• Fuel Pumps

• Air Horns

• Door Locks

• Power Windows

• Car Alarm Systems

• Custom 12V Electrical Projects

Package Includes

• (12) American Terminal REALYM 12V 5-Pin SPDT Automotive Relays

Warranty

1-Year Manufacturer's Warranty
