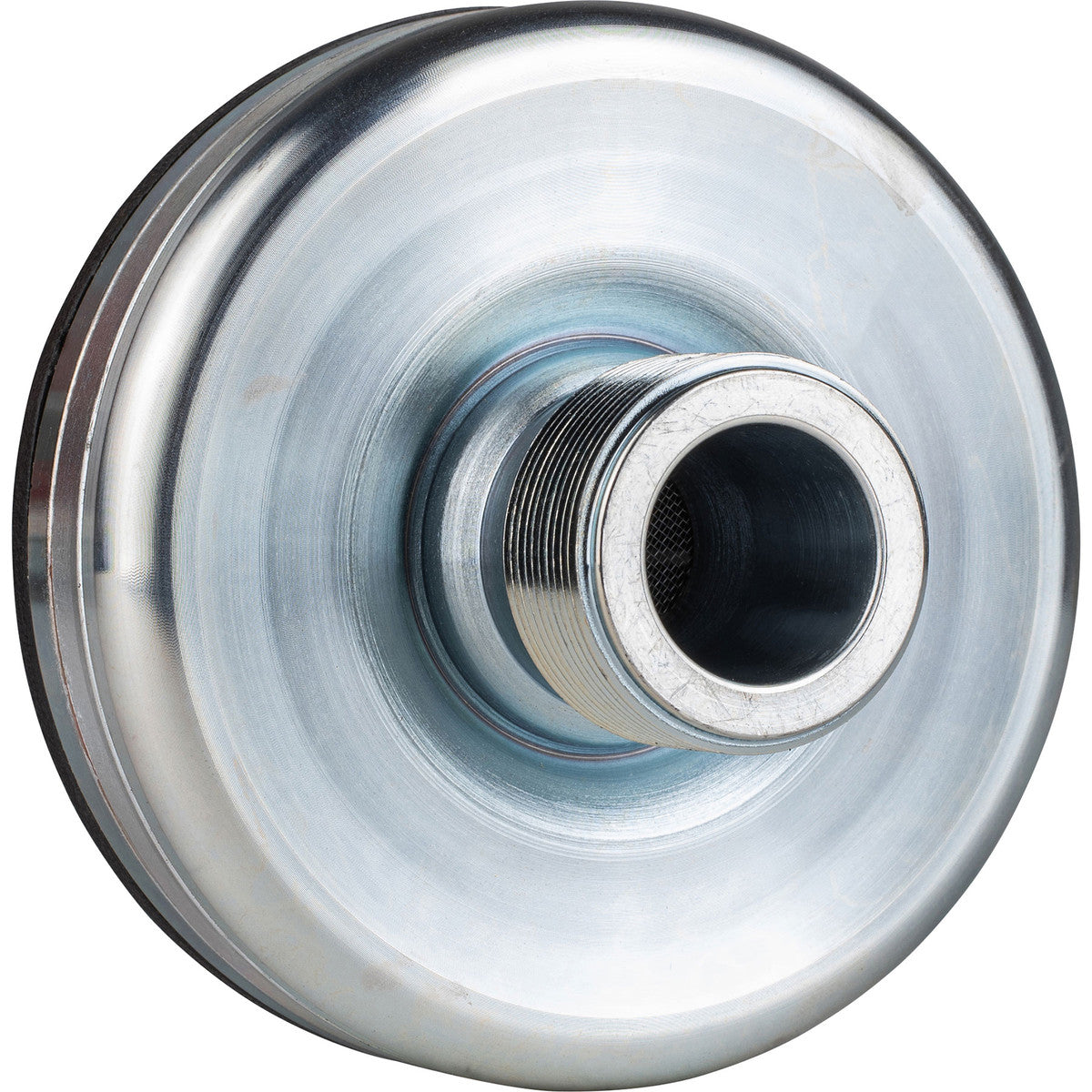

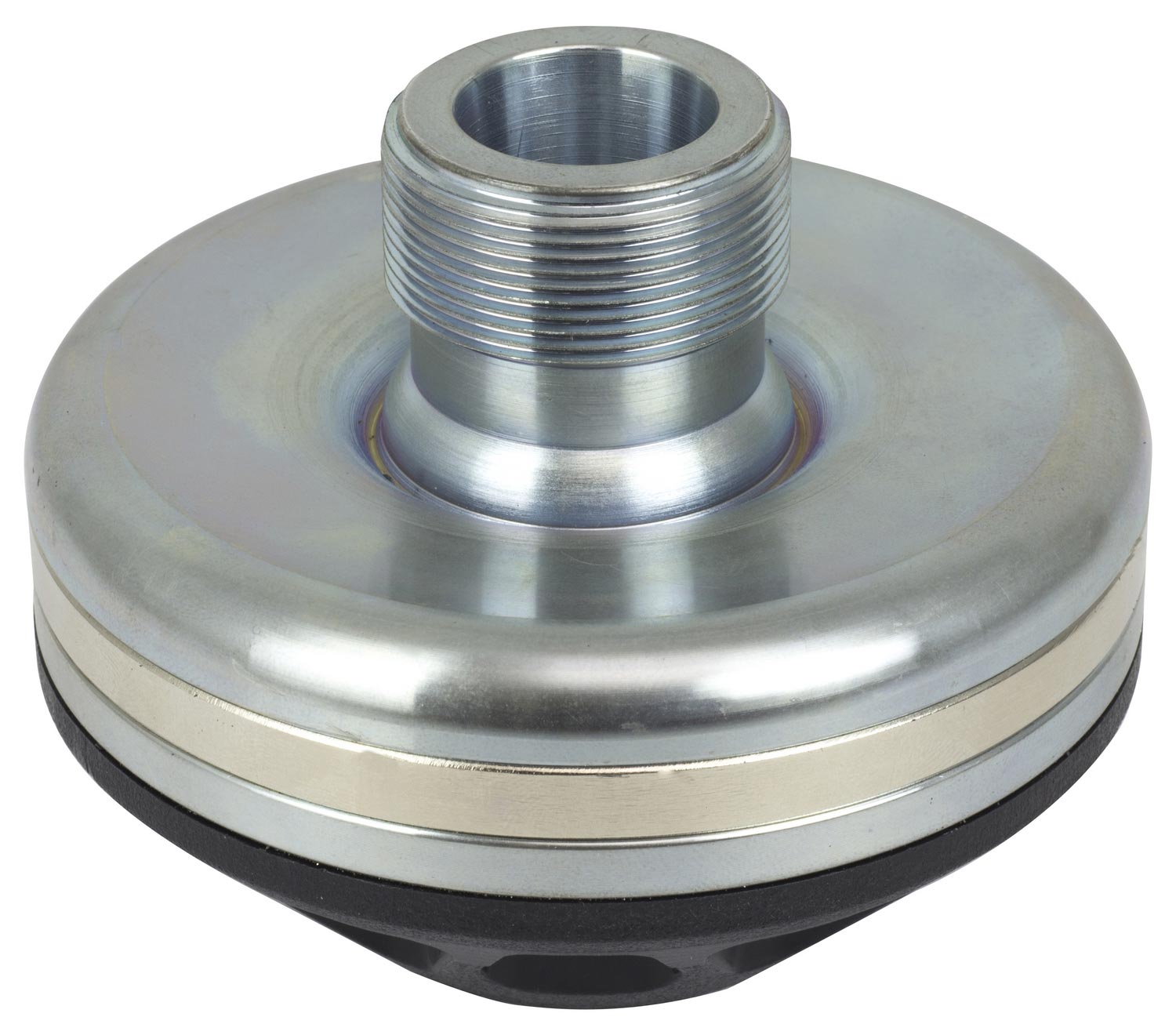

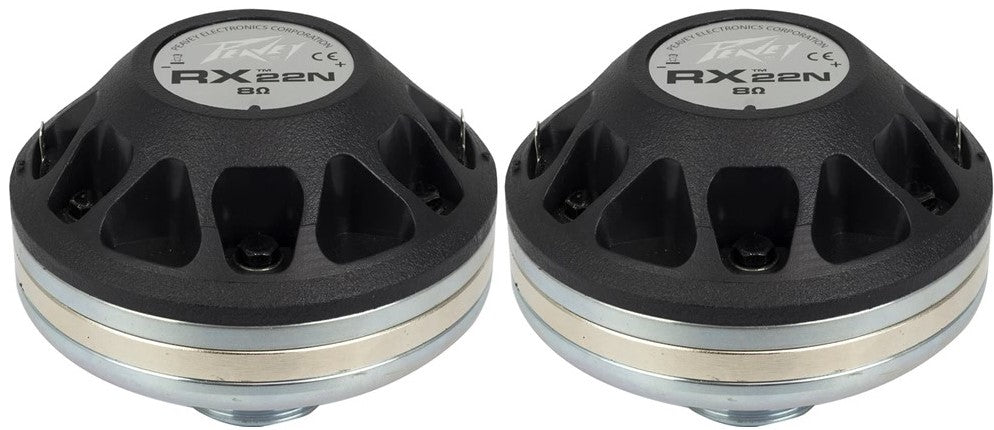

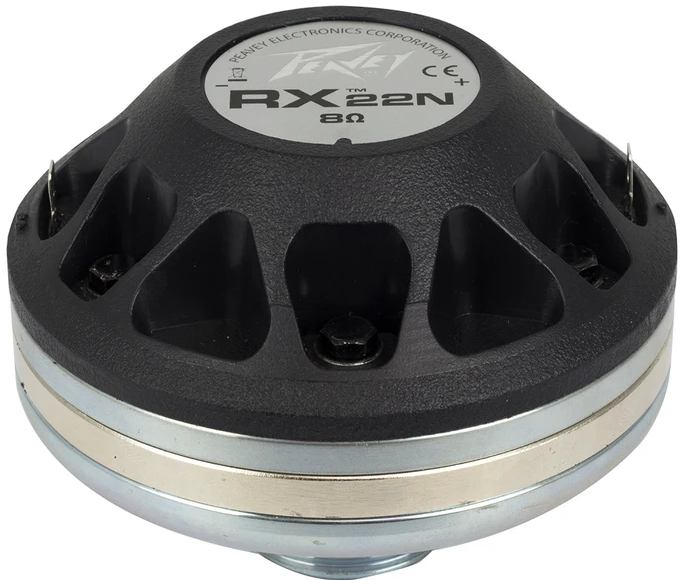

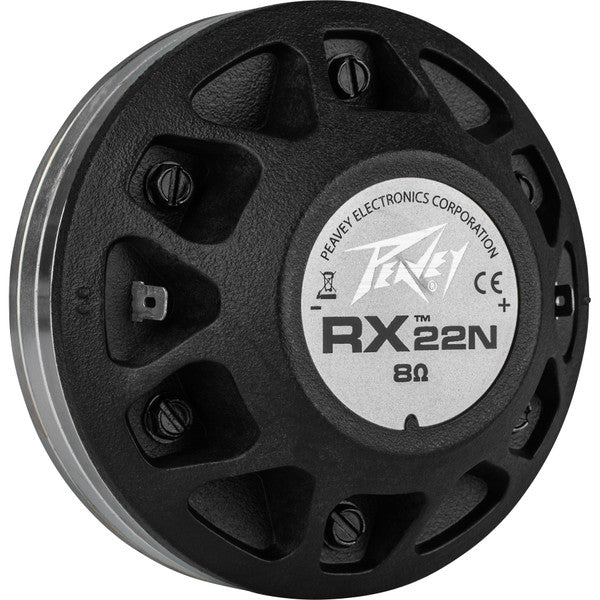

2 Peavey RX22N High-Frequency Compression Horn Driver RX22HF RX22

This is a direct replacement from Peavey. Let us know if you want more pictures or information about this item. We deal directly with Peavey, so let us know if you need more parts for your Peavey equipment. We carry Crossovers, full speakers, and all accessories!

General Features:

• 2" edge wound voice coil with ferrofluid cooling improves power handling

• Screw on 1-3/8" 18 TPI mount is compatible with most popular horns
• Throat Parameter: .875" / 22 mm
• Nominal Impedance: 8 Ohms
• Minimum Impedance: 5.1 Ohms
• DC Resistance: 4.7 Ohms
• Power Capacity 1000 Hz to 20,000 Hz: 280 W peak 140 W program 70 W continuous using pink noise band-limited from 1000 Hz to 20 kHz(AES 2-1984)
• Power Capacity 500 Hz to 20,000 Hz: 240 W peak 120 W program 60 W continuous using pink noise band-limited from 500 Hz to 20 kHz
• Sensitivity: 111 dB / 1 Watt at 1 meter On-axis on 90º H x 45º V horn
• Nominal Efficiency: 30%
• Frequency Response: 500 Hz to 20,000 Hz
• Recommended Crossover: 1200 Hz at 12 dB / Octave
• Lowest Recommended Crossover: 500 Hz at 12 dB / Octave
• Diaphragm: Commercially pure titanium
• Voice Coil Diameter: 2.0" / 50.8 mm
• Voice Coil Material: Edge-wound copper-clad aluminum ribbon with a temp composite bobbin
• Flux Density: 17,500 gausses (1.75T)
• Dimensions: 5.250" (133.3 mm) diameter x 3.05" (77.4 mm) depth
• Horn Coupling Diameter: 7/8: (22.2 mm)
• Horn Coupling Threads: Standard 1 3/8" / 18"
• Net Weight: 5 lbs. 6 oz.
• Shipping Weight: 6 lbs. 5.5 oz.
• Voice Coil Cooling: Ferrofluid
• Weight Unpacked: 5.50 lb(2.493 kg)
• Weight Packed: 6.48 lb(2.938 kg)
• Width Packed: 8.25"(20.955 cm)
• Height Packed: 8.25"(20.955 cm)
• Depth Packed: 4.75"(12.065 cm)
