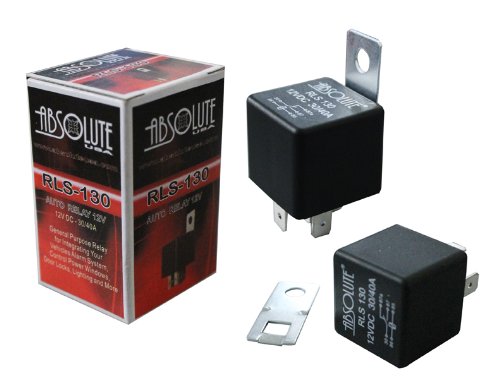

Absolute USA RLS-130 12V 40A Bosch/Tyco Style 5-Pin SPDT Automotive Relay with Metal Mounting Bracket

The Absolute USA RLS-130 is a heavy-duty 12-volt 5-pin SPDT automotive relay designed for high-current switching applications in automotive, marine, RV, powersports, industrial, and 12V electrical systems. Built in the popular Bosch/Tyco-style configuration, the RLS-130 features a rugged housing, integrated metal mounting bracket, and reliable 30/40-amp switching capability for controlling lights, horns, cooling fans, fuel pumps, power windows, door locks, security systems, and other electrical accessories.

Key Features

⚡ HEAVY-DUTY 30/40 AMP RELAY - Handles up to 40A Normally Open (NO) and 30A Normally Closed (NC) loads for dependable high-current switching.

🔌 STANDARD BOSCH/TYCO 5-PIN DESIGN - Universal Bosch/Tyco-style SPDT relay fits most automotive relay sockets and wiring harnesses for easy replacement or new installations.

🚗 VERSATILE 12V AUTOMOTIVE APPLICATIONS - Perfect for controlling auxiliary lighting, LED light bars, horns, cooling fans, fuel pumps, door locks, power windows, alarm systems, and other 12V accessories.

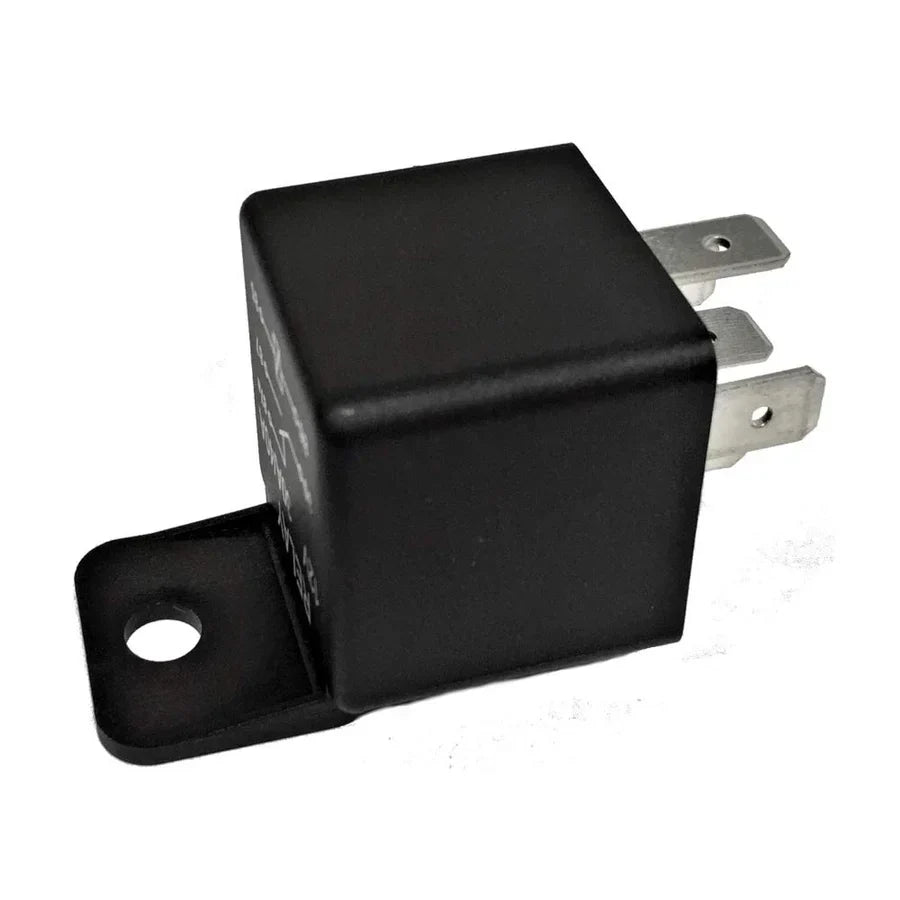

🛡 INTEGRATED METAL MOUNTING BRACKET - Includes a durable metal mounting tab for secure installation in engine bays, fuse panels, and custom electrical systems.

🔧 COMPATIBLE WITH RELAY SOCKETS - Works with Absolute USA SRS103 and SRS105 relay sockets, as well as most standard Bosch-style 5-pin relay harnesses.

Product Description

The Absolute USA RLS-130 12V Automotive Relay is engineered for reliable switching performance in demanding automotive and electrical applications. Featuring a Single Pole Double Throw (SPDT) configuration, this relay allows both Normally Open (NO) and Normally Closed (NC) circuit operation, making it suitable for a wide variety of custom wiring projects.

Its universal Bosch/Tyco-style footprint provides direct compatibility with most standard 5-pin relay sockets, while the integrated metal mounting bracket allows secure installation in vehicles, boats, RVs, motorcycles, off-road vehicles, and industrial equipment.

Designed for long service life and dependable performance, the RLS-130 is ideal for both professional installers and DIY electrical upgrades.

General Features

• 12 Volt DC Automotive Relay

• Bosch/Tyco Style Relay

• Single Pole Double Throw (SPDT)

• 5-Pin Configuration

• Heavy-Duty Metal Mounting Bracket

• 40A Normally Open Contact

• 30A Normally Closed Contact

• High Current Switching Capability

• Compact Industrial Design

• Compatible with Standard Bosch Relay Sockets

• Works with Absolute USA SRS103 & SRS105 Relay Sockets

• Professional Installation Grade

Specifications

Electrical

• Operating Voltage: 12V DC

• Contact Configuration: SPDT (Single Pole Double Throw)

• Contact Rating (NO): 40A @ 14V DC

• Contact Rating (NC): 30A @ 14V DC

• Maximum Operating Voltage: 27V DC

• Maximum Operating Current: 40A

• Coil Insulation Resistance: 100 MΩ

• Dielectric Strength (Coil to Contact): 500 VAC

Performance

• Operating Temperature: -40°C to +85°C (-40°F to +185°F)

• Operate Time: 10 ms

• Release Time: 10 ms

• Mechanical Life: 1,000,000 Operations

• Electrical Life: 100,000 Operations

Physical

• Dimensions: 28 × 28 × 25 mm

• Mounting: Integrated Metal Bracket

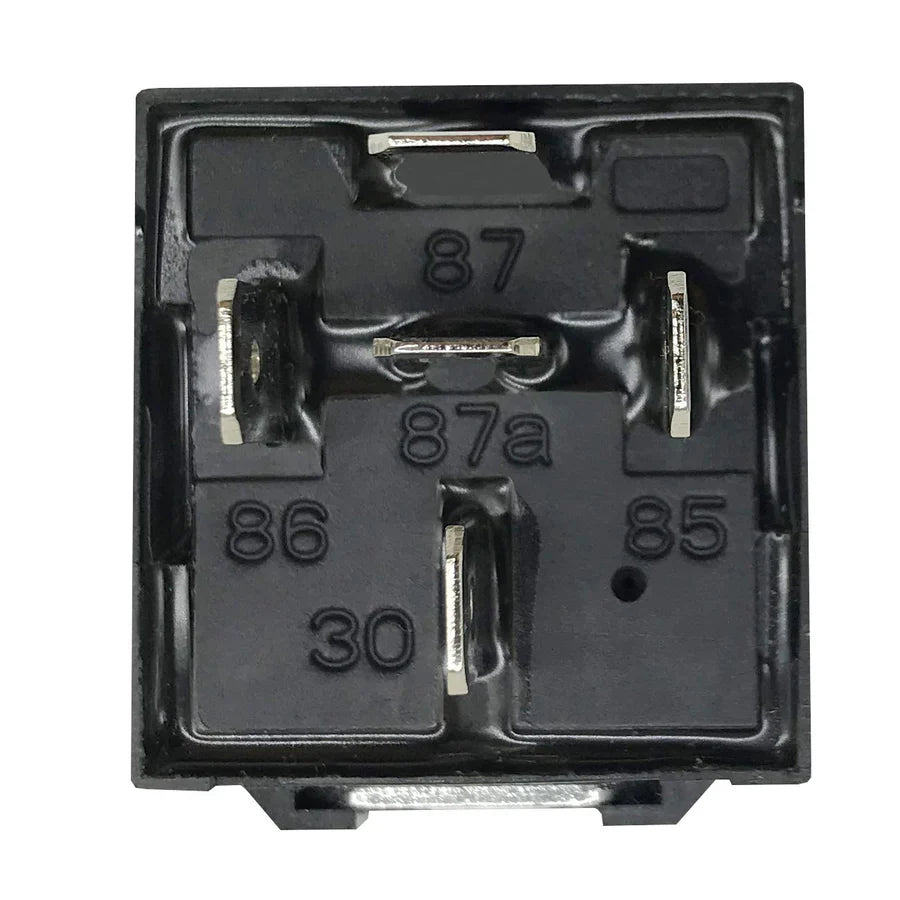

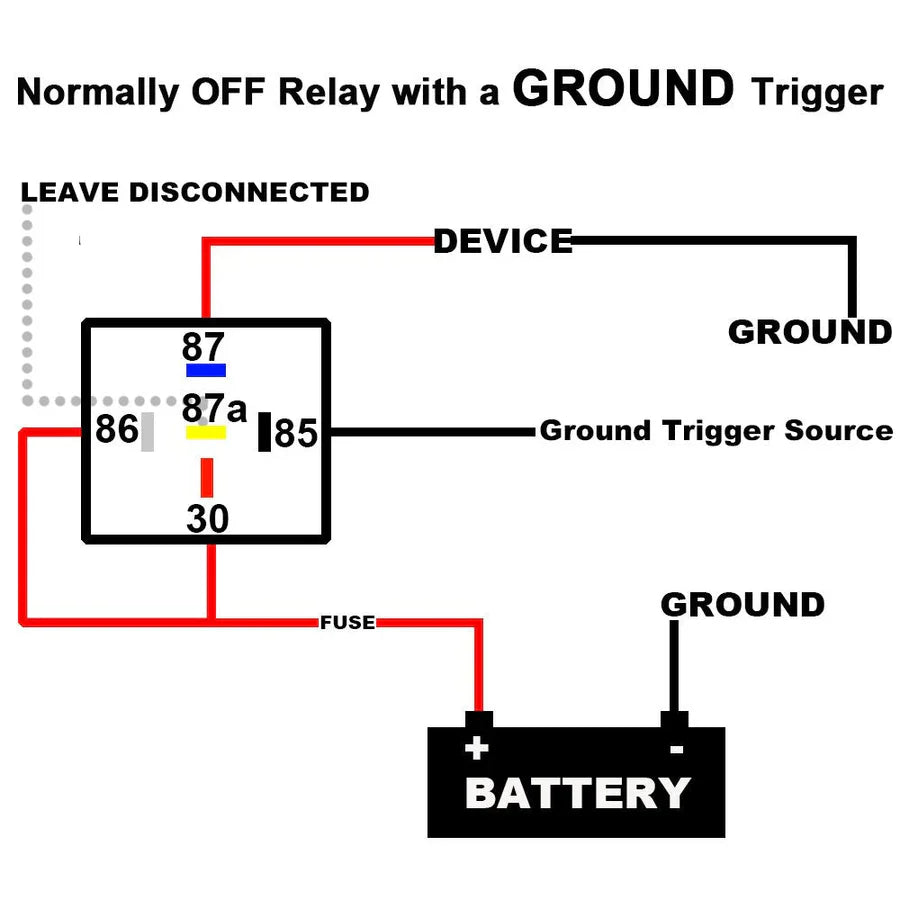

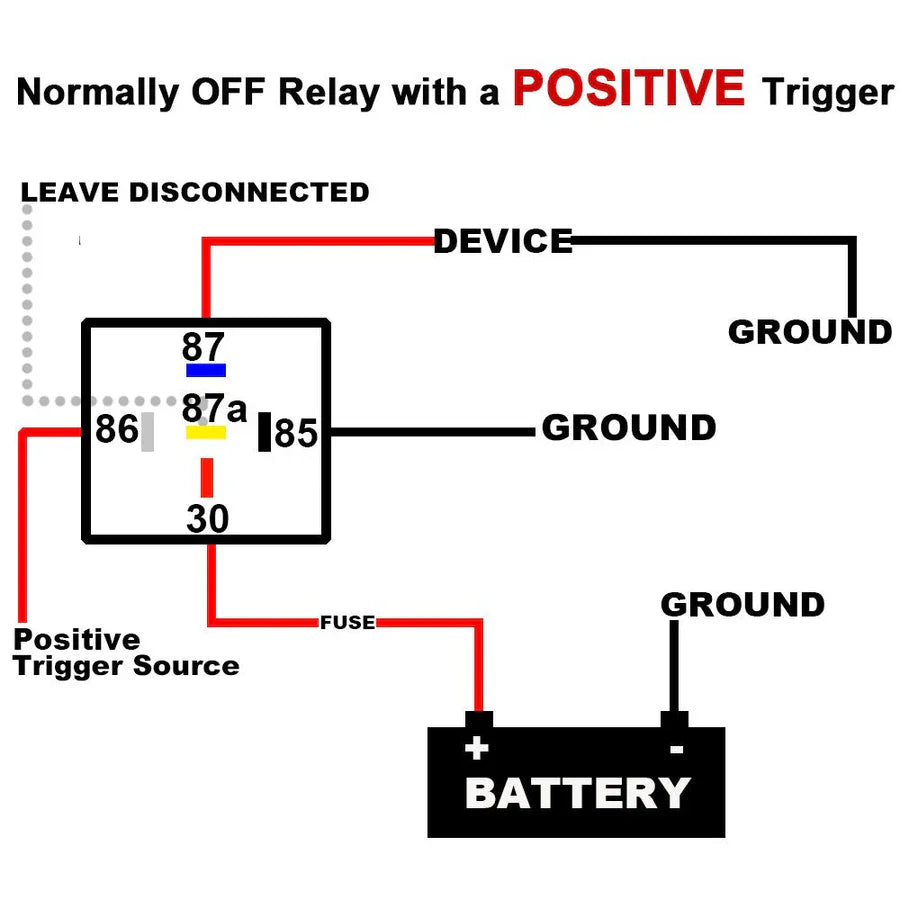

Standard Pin Configuration

• Pin 30 - Common Power Input

• Pin 85 - Coil Ground

• Pin 86 - Coil Trigger

• Pin 87 - Normally Open (NO)

• Pin 87a - Normally Closed (NC)

Perfect For

• Automotive Electrical Systems

• Auxiliary LED Lighting

• Light Bars

• Horn Circuits

• Cooling Fans

• Fuel Pumps

• Power Windows

• Door Locks

• Car Alarm Systems

• Marine Applications

• RV Electrical Systems

• Off-Road Vehicles

• Industrial 12V Controls

Package Includes

• (1) Absolute USA RLS-130 12V 40A 5-Pin SPDT Automotive Relay

• Integrated Metal Mounting Bracket

Warranty

1-Year Manufacturer's Warranty
