Alpine R2-A150M + 2 RS-SB12 + RUX-KNOB.2 1500W Mono Amplifier with Dual 12" R-Series Preloaded Subwoofer Enclosures & Accessory Bundle

Build a powerful Alpine R-Series bass system with this complete package featuring the Alpine R2-A150M Class-D mono subwoofer amplifier, two Alpine RS-SB12 12-inch Halo R-Series R2 preloaded subwoofer enclosures, Alpine RUX-KNOB.2 remote bass control, Absolute TW500 Super Tweeters, BT1700 electrical tape, and a universal mobile phone holder. With up to 1,500 watts RMS amplifier output, two high-excursion 12-inch loaded enclosures, and convenient in-cabin bass adjustment, this bundle is designed for serious low-frequency performance.

General Features

• Alpine R2-A150M R-Series Mono Subwoofer Amplifier

• Two Alpine RS-SB12 12" Halo R-Series R2 Preloaded Enclosures

• Alpine RUX-KNOB.2 Remote Bass Control

• Class-D Mono Amplifier Design

• Up to 1,500 Watts RMS at 1 Ohm

• 1,200 Watts RMS at 2 Ohms

• 700 Watts RMS at 4 Ohms

• 750 Watts RMS Power Handling Per Subwoofer Enclosure

• 2,250 Watts Peak Power Handling Per Enclosure

• 20mm Linear Subwoofer Excursion

• Double-Stacked Magnet Structure

• Alpine ProLink Enclosure Design

• Variable Low-Pass Filter

• Variable Subsonic Filter

• Adjustable Gain

• Bass EQ

• High-Level Input with Automatic Power-On

• Remote Bass Control Ready

• Absolute TW500 Super Tweeters

• Absolute BT1700 Electrical Tape

• Universal Mobile Phone Holder

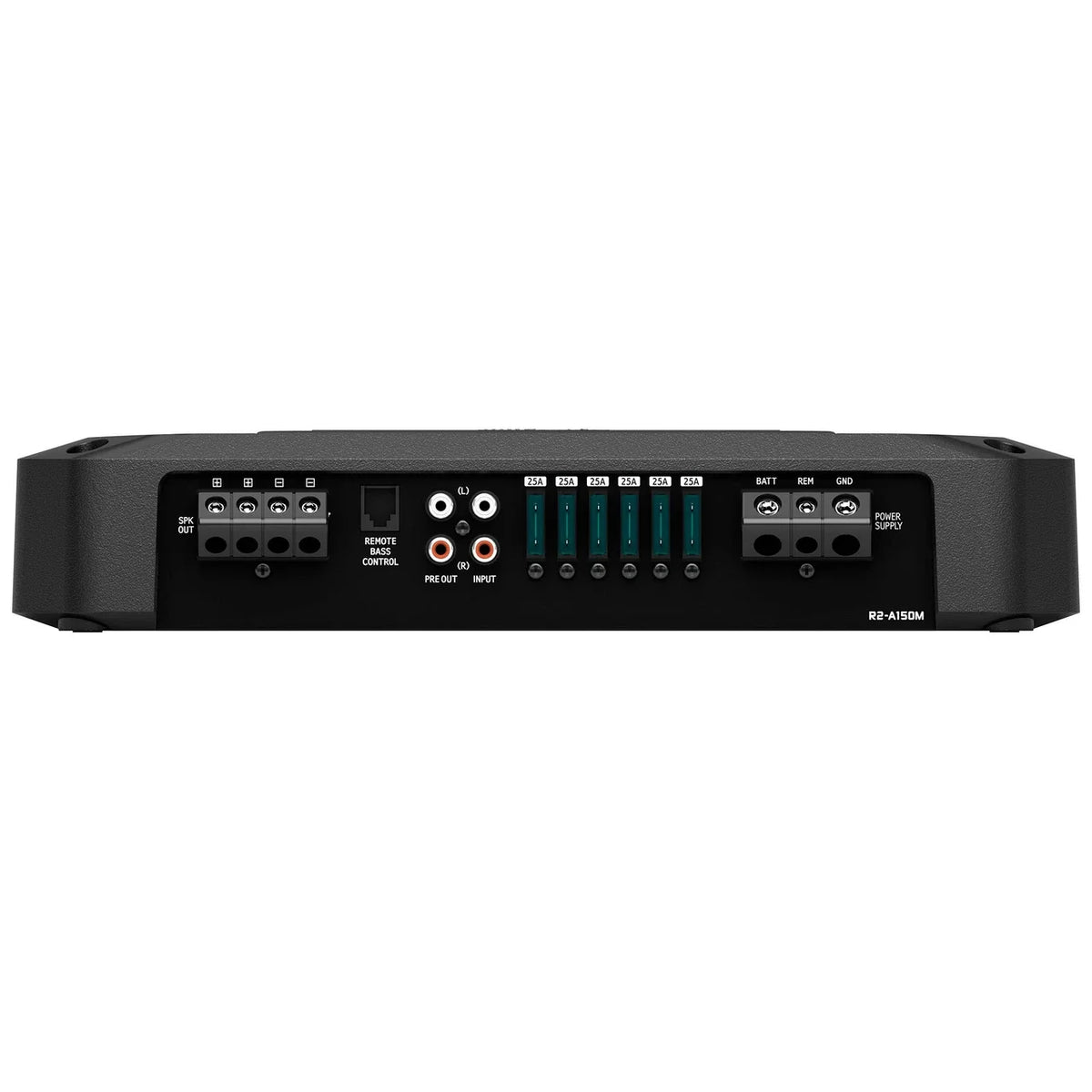

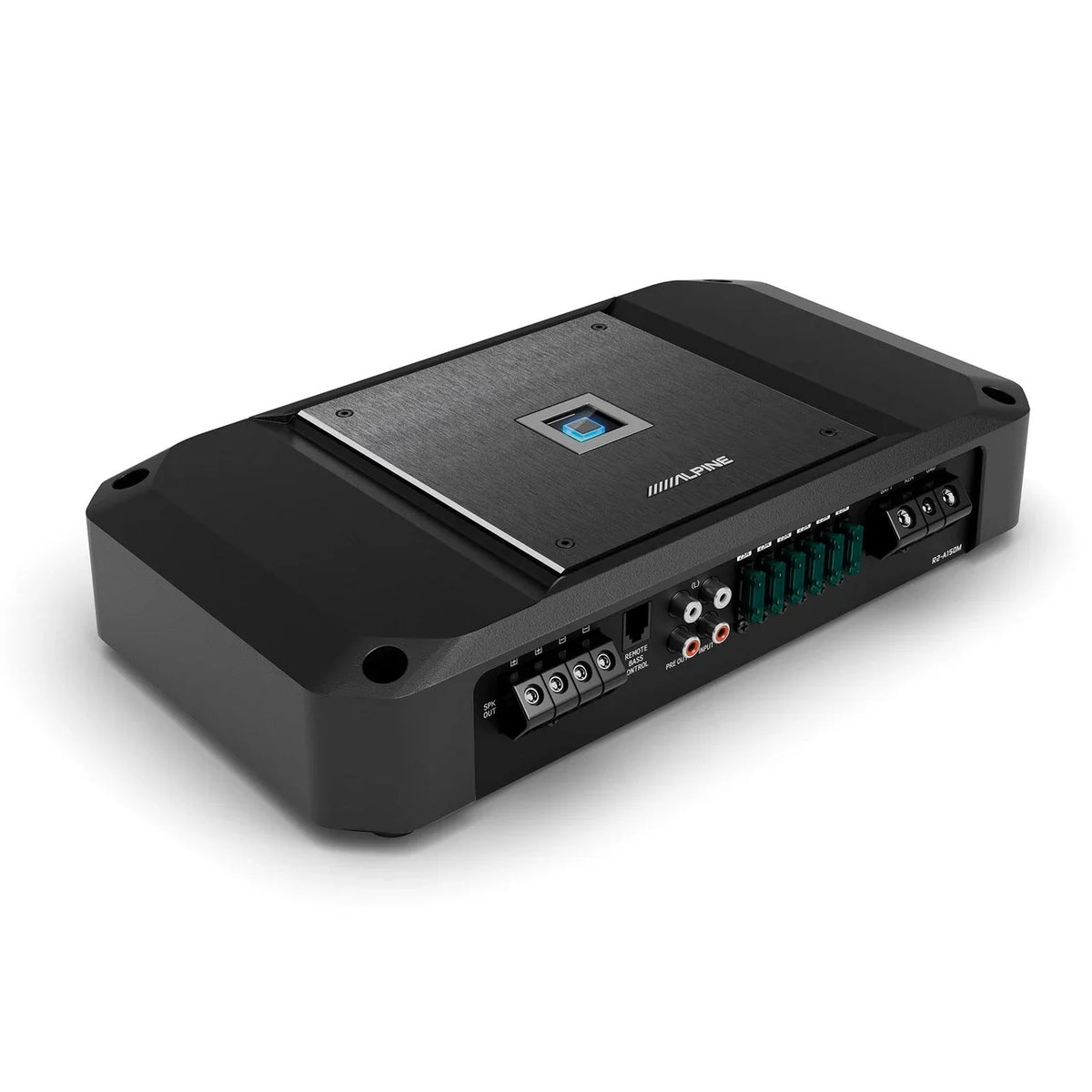

Alpine R2-A150M R-Series Mono Subwoofer Amplifier

The Alpine R2-A150M is a high-output Class-D mono amplifier designed for powerful subwoofer systems. It delivers up to 1,500 watts RMS at 1 ohm while maintaining a compact chassis designed to simplify installation in space-limited vehicle applications.

R2-A150M Power Output

• 1,500 Watts RMS x 1 at 1 Ohm @ 14.4V

• 1,200 Watts RMS x 1 at 2 Ohms @ 14.4V

• 700 Watts RMS x 1 at 4 Ohms @ 14.4V

• Total Maximum Power: 2,300 Watts

• Class-D Mono Amplification

R2-A150M Features

• One-Side Terminal Layout

• Screw-Type Power Terminals

• Screw-Type Speaker Terminals

• Top-Mounted Amplifier Controls

• Top-Mounted LED Power / Status Indicator

• Adjustable Input Gain

• Bass EQ

• Variable Low-Pass Filter

• Adjustable Subsonic Filter

• Speaker-Level Input

• Automatic Power-On with High-Level Input

• Thermal Management System

• Remote Bass Control Ready

R2-A150M Specifications

• Amplifier Type: Class-D

• Channels: Mono

• Maximum Power: 2,300 Watts

• RMS at 1 Ohm: 1,500 Watts x 1

• RMS at 2 Ohms: 1,200 Watts x 1

• RMS at 4 Ohms: 700 Watts x 1

• Frequency Response: 10Hz-400Hz

• Variable Low-Pass Filter: 50Hz-400Hz

• LPF Slope: -24dB/Octave

• Variable Subsonic Filter: 8Hz-40Hz

• Subsonic Filter Slope: -24dB/Octave

• RCA Input Sensitivity High Range: 0.4-10V

• RCA Input Sensitivity Low Range: 0.1-4.0V

• High-Level Input: Yes

• Automatic Power-On: Yes

• THD+N: Less Than 0.04% at 10W into 4 Ohms

• Damping Factor: Greater Than 250

• Recommended Power Cable: 4 AWG

• Recommended Speaker Cable: 8 AWG

• Operating Voltage: 9-16V DC

• Rated Voltage: 14.4V DC

• Dimensions: 341 x 65 x 185mm

• Weight: Approximately 5kg

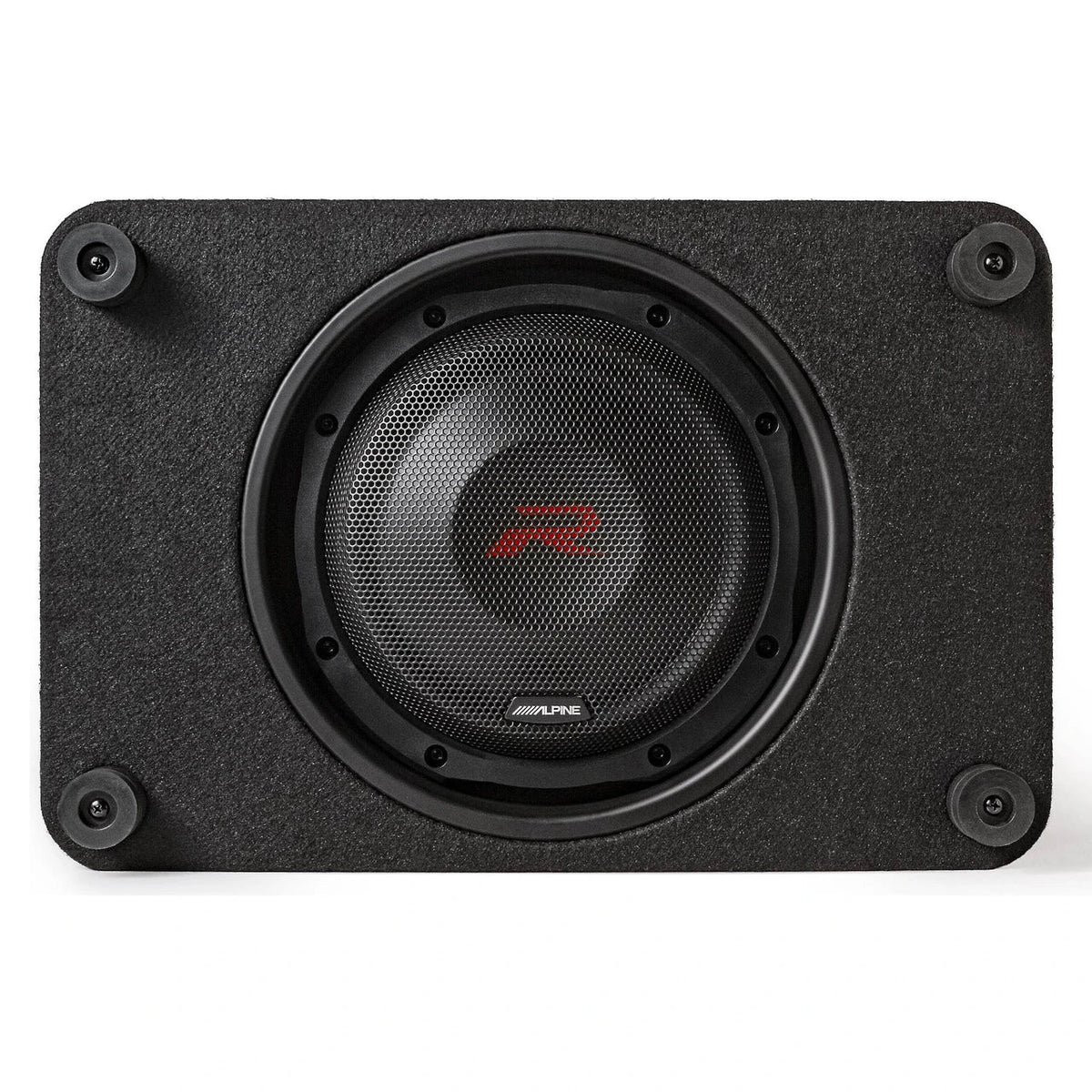

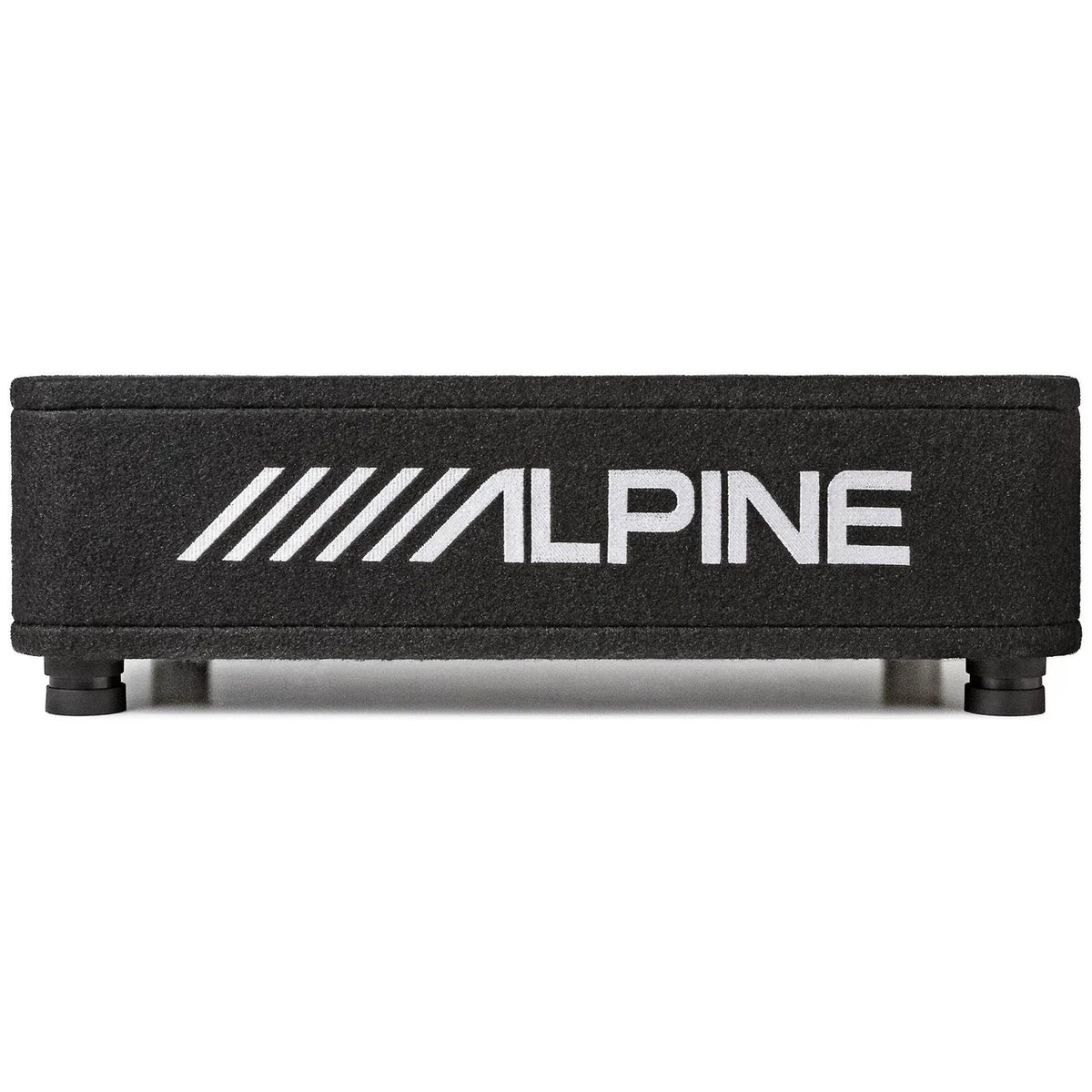

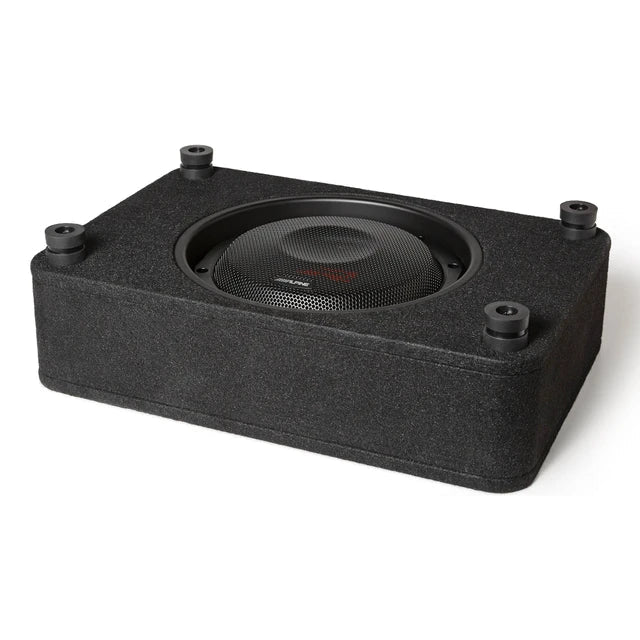

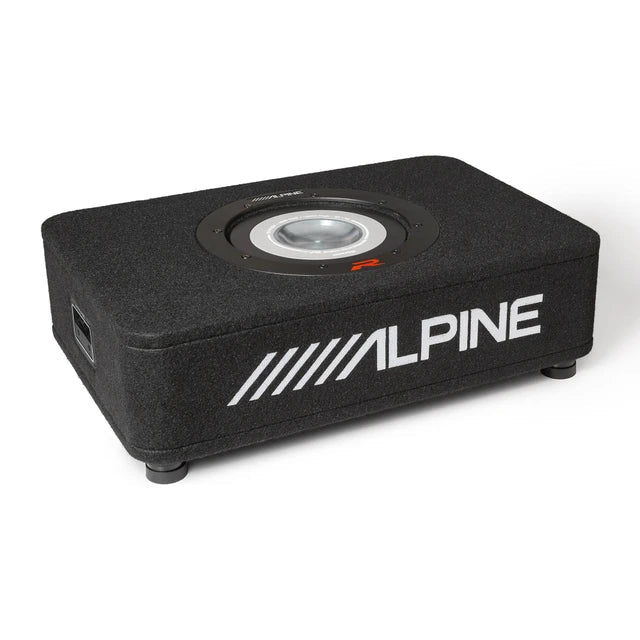

Dual Alpine RS-SB12 12" Halo R-Series R2 Preloaded Subwoofer Enclosures

This package includes two Alpine RS-SB12 preloaded enclosures, each featuring a 12-inch R-Series R2 subwoofer designed for high-output, controlled bass reproduction.

RS-SB12 Features

• Two 12" Preloaded Subwoofer Enclosures

• R-Series R2 Subwoofer Design

• 750 Watts RMS Power Handling Per Enclosure

• 2,250 Watts Peak Power Handling Per Enclosure

• Recommended Power Range: 300-750 Watts RMS

• 26Hz-200Hz Frequency Response

• 20mm Linear Excursion

• 72mm Mechanical Travel

• Large Double-Stacked Magnet Structure

• 144 oz Magnet Weight

• 2.6" Voice Coil

• Alpine ProLink Design

• Halo-Inspired Enclosure Styling

• Curved Exterior Profile

• Silver Trim

• Metallic Front Baffle

High-Excursion R-Series Performance

The R-Series R2 subwoofer design uses larger double-stacked magnets to provide increased motor force for deeper bass and improved cone control.

• 20mm Xmax Linear Excursion

• 72mm Mechanical Travel

• Designed for High-Output Bass

• Increased Motor Force

• Designed for Deeper Low-Frequency Performance

• Designed for Tighter Bass Control

RS-SB12 Specifications

• Quantity: 2 Enclosures

• Subwoofer Size: 12"

• RMS Power Handling: 750 Watts Each

• Peak Power Handling: 2,250 Watts Each

• Recommended Power Range: 300-750 Watts RMS

• Frequency Response: 26Hz-200Hz

• Sensitivity: 85dB at 1W/1m

• Magnet Weight: 144 oz

• Voice Coil Diameter: 65.5mm / 2.6"

• Linear Excursion Xmax: 20mm

• Mechanical Travel Xmech: 72mm

• Free-Air Resonance Fs: 29Hz

• Mechanical Q Qms: 6.32

• Electrical Q Qes: 0.44

• Total Q Qts: 0.41

• Cone Area Sd: 479 cm²

• Enclosure Dimensions: Approximately 17" x 25" x 15"

• Weight: Approximately 48.4 lb each

• ProLink: Yes

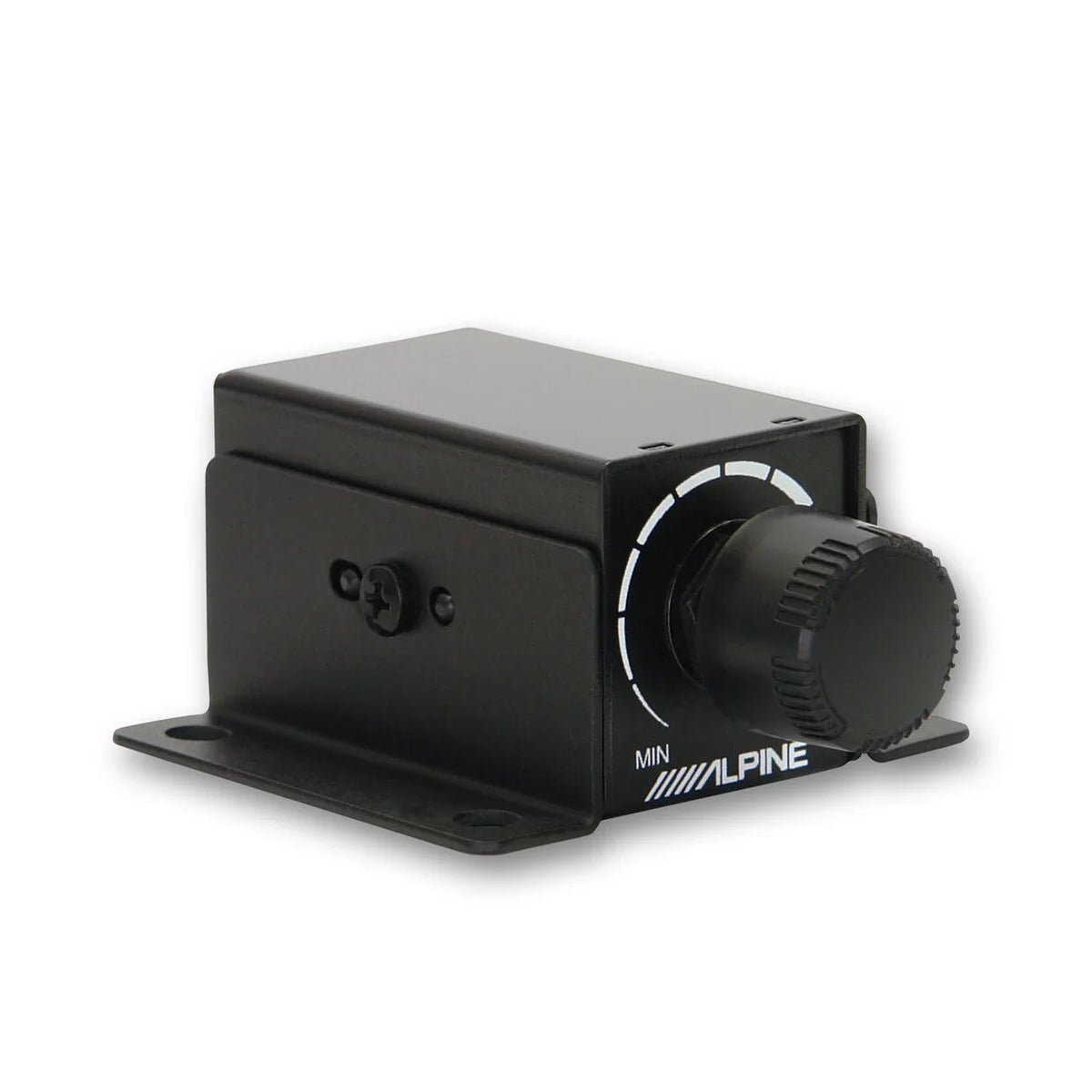

Alpine RUX-KNOB.2 Remote Bass Control

The included Alpine RUX-KNOB.2 provides convenient in-cabin bass adjustment with compatible Alpine amplifiers, allowing the driver to change bass output without accessing the amplifier directly.

RUX-KNOB.2 Features

• Remote Bass Gain Control

• In-Cabin Bass Adjustment

• Driver-Accessible Control

• Designed for Compatible Alpine Amplifiers

• Multiple Amplifier Control Supported with Compatible Telephone Cord Adapters

Listed RUX-KNOB.2 Compatible Amplifiers

• Alpine MRX-M50

• Alpine MRX-M100

• Alpine MRX-V60

• Alpine PDX-M12

• Alpine PDX-M6

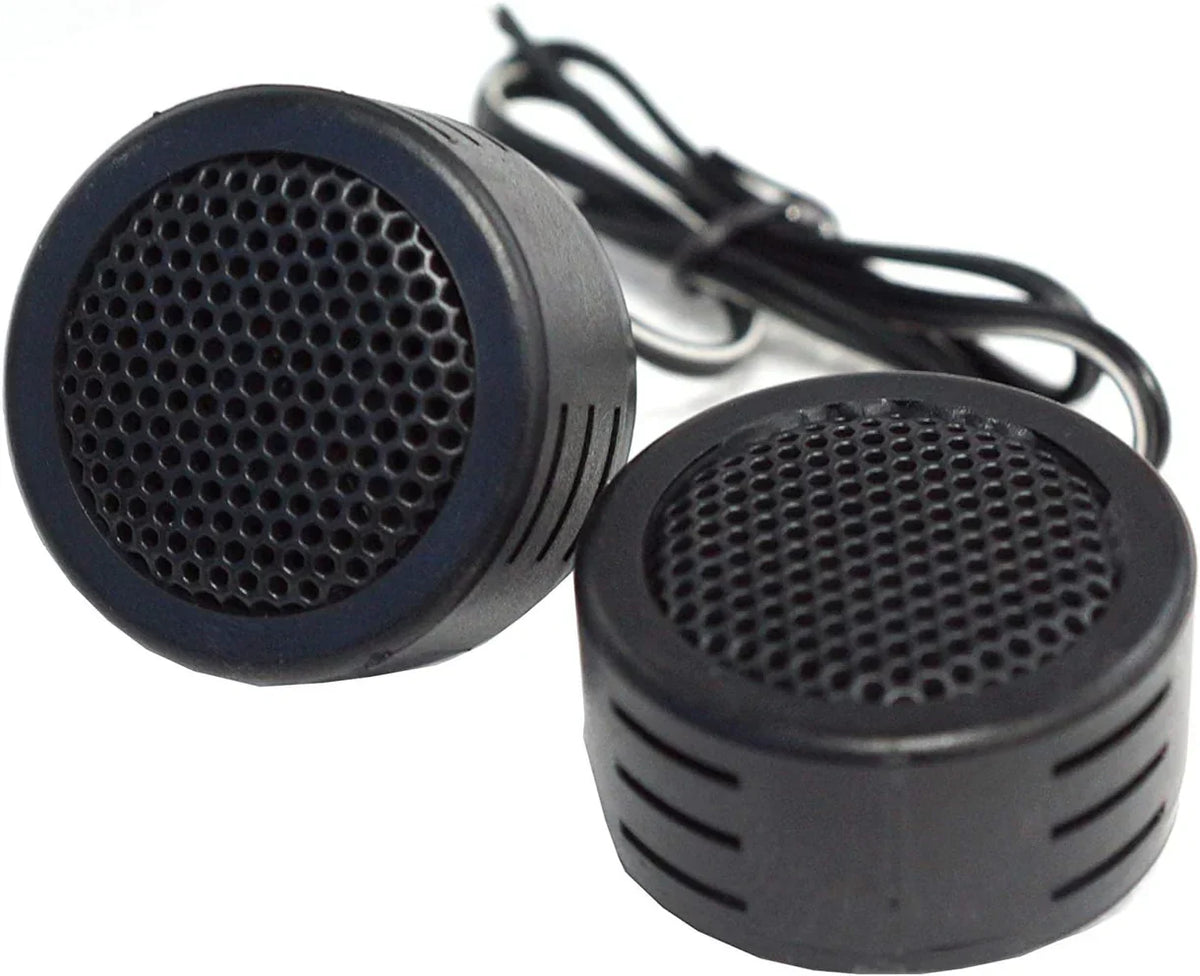

Absolute TW500 Super Tweeters

The included Absolute TW500 Super Tweeters are designed to add additional high-frequency output and presence to compatible automotive audio systems.

• One Pair of Super Tweeters

• High-Efficiency High-Frequency Design

• Compact Construction

• Factory & Aftermarket Audio Compatible

• Designed for Custom Car Audio Installations

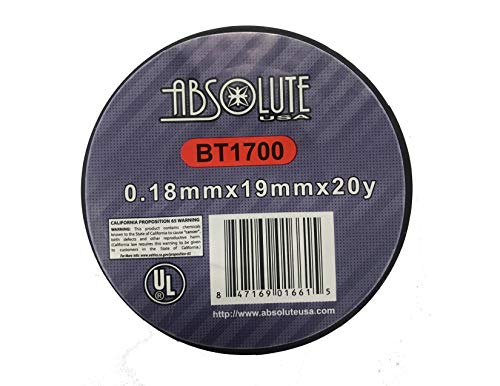

Absolute BT1700 Electrical Tape

The included Absolute BT1700 electrical tape is useful for insulating, securing, and organizing compatible automotive wiring connections during installation.

• Automotive Electrical Tape

• High-Adhesion Design

• Heat-Resistant Construction

• Flexible PVC Material

• Ideal for Car Audio Installation Wiring

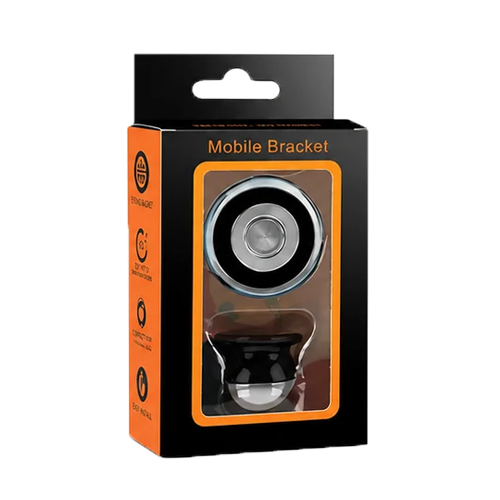

Universal Mobile Phone Holder

The included universal mobile phone holder provides a convenient mounting solution for keeping a compatible smartphone accessible inside the vehicle.

• Universal Smartphone Compatibility

• Adjustable Viewing Angle

• Secure Grip Design

• Convenient In-Vehicle Installation

• Suitable for Navigation & Everyday Phone Access

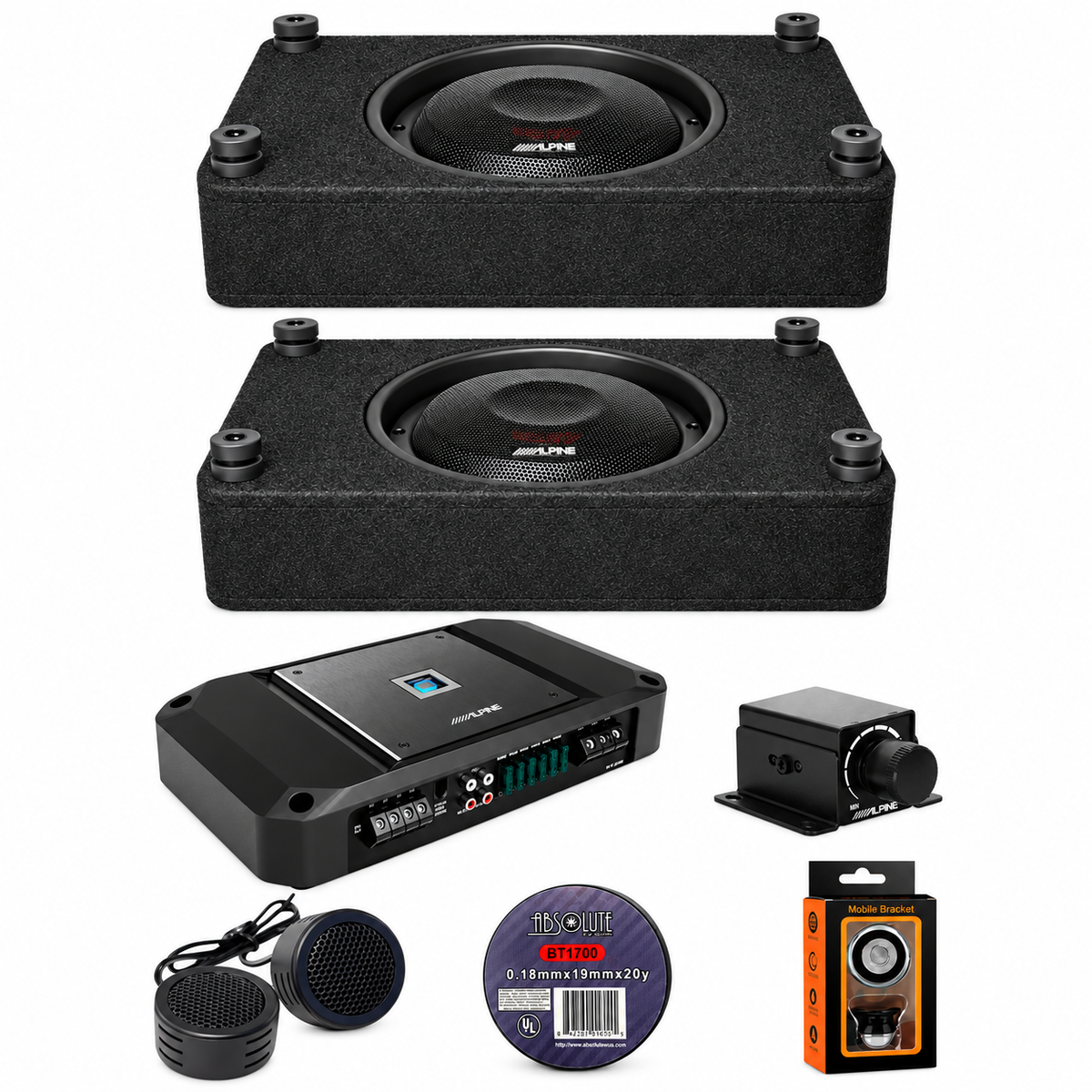

What's in this Package

• (1) Alpine R2-A150M R-Series Mono Subwoofer Amplifier

• (2) Alpine RS-SB12 12" Halo R-Series R2 Preloaded Subwoofer Enclosures

• (1) Alpine RUX-KNOB.2 Remote Bass Control

• (1 Pair) Absolute TW500 Super Tweeters

• (1) Absolute BT1700 Electrical Tape

• (1) Universal Mobile Phone Holder

Installation Notes

• Proper final subwoofer impedance must be confirmed before wiring the two enclosures to the amplifier. The supplied RS-SB12 specifications do not state each enclosure's final impedance.

• The R2-A150M is rated for 1,500 watts RMS at 1 ohm, 1,200 watts RMS at 2 ohms, and 700 watts RMS at 4 ohms.

• Do not assume a 1-ohm final system load without confirming the actual impedance and wiring configuration of both enclosures.

• The supplied description states that the R2-A150M is ready for the RUX-KNOB.2 , while the separate RUX-KNOB.2 compatibility section specifically lists MRX-M50, MRX-M100, MRX-V60, PDX-M12, and PDX-M6. Verify RUX-KNOB.2 compatibility with the R2-A150M before installation or fulfillment.

• The supplied source refers to RS-SB12 enclosures but also references R2-SB12V when describing ProLink operation. Verify the exact enclosure model before fulfillment.

• Additional 4-gauge amplifier power wiring, fuse protection, ground cable, signal cables, speaker wire, and installation hardware may be required and are sold separately unless otherwise included.

• Verify cargo space for two approximately 17" x 25" x 15" enclosures before ordering.

• Professional installation is recommended for proper impedance wiring, amplifier setup, gain adjustment, crossover configuration, and safe power-system installation.
