Alpine UTE-63BT Single-DIN Bluetooth Digital Media Receiver with PAC SWI-CP2 Steering Wheel Control Interface

Upgrade your car audio system with the Alpine UTE-63BT Digital Media Receiver and PAC SWI-CP2 ControlPRO Steering Wheel Control Interface. This bundle combines Bluetooth hands-free calling, wireless music streaming, USB playback, Pandora control, and Alpine audio tuning with an interface designed to retain compatible factory steering wheel audio controls.

General Features

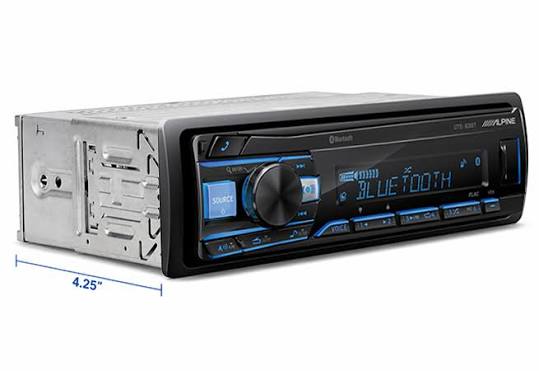

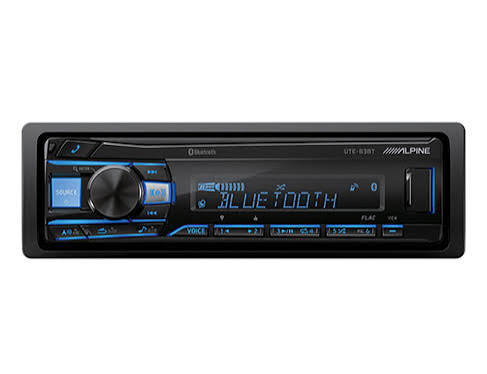

• Alpine UTE-63BT Single-DIN Digital Media Receiver
• PAC SWI-CP2 ControlPRO Steering Wheel Control Interface
• Single-DIN Mechless Design
• Built-In Bluetooth
• Hands-Free Calling
• Wireless Bluetooth Audio Streaming
• Front USB Input
• FLAC Audio Playback
• Pandora Compatible
• Detachable Faceplate
• High-Contrast LCD Display
• Blue Button Illumination
• 50 Watts x 4 Peak Power
• 18 Watts x 4 RMS Power
• CEA-2006 Compliant Amplifier
• AM/FM Tuner
• 3-Band Parametric Equalizer
• Adjustable High-Pass & Low-Pass Filters
• Steering Wheel Control Retention for Compatible Vehicles

Alpine UTE-63BT Features

• Bluetooth Hands-Free Calling
• Bluetooth Wireless Audio Streaming
• Pandora Internet Radio Control
• Smartphone & Digital Media Playback
• USB Drive Playback
• FLAC Audio Support
• Detachable Faceplate
• White LCD Text Display
• 50W x 4 Peak Output
• 18W x 4 RMS Output
• 12 FM / 6 AM Presets
• Local / Distance Tuning
• 3-Band Parametric EQ
• 7 Selectable Tone Curves
• 6 Preset EQ Settings
• 1 User EQ Setting
• Loudness Control
• Audio Mute
• Wireless Remote Control Sold Separately

Crossover Settings

• High-Pass Filter: 60Hz / 80Hz / 120Hz / 160Hz / Off
• Low-Pass Filter: 60Hz / 80Hz / 120Hz / 160Hz / Off

PAC SWI-CP2 ControlPRO Steering Wheel Control Interface

The PAC SWI-CP2 is a universal steering wheel control interface designed to retain compatible factory steering wheel audio controls when installing an aftermarket radio.

• Works with Analog / Resistive Steering Wheel Control Systems
• Works with Compatible Data-Bus Steering Wheel Control Systems
• CAN-Bus Support
• DIP-Switch Vehicle Selection
• Vehicle Configuration Through ControlPRO Applications
• PC, iOS & Android Configuration Support
• Direct Flash Through ControlPRO PC Application
• USB Connection Required for Direct Flash
• Button Learning Mode
• Customizable Button Functions
• Provides 2-Amp 12V ACC Output on Compatible Data-Bus Applications

SWI-CP2 Compatibility Notes

• Vehicle-specific wiring and configuration settings must be confirmed before installation.
• The SWI-CP2 does not retain HVAC controls found in certain General Motors vehicles.
• Compatibility varies by vehicle, factory steering wheel controls, and radio configuration.

What's in this Package

• (1) Alpine UTE-63BT Bluetooth Digital Media Receiver
• (1) Detachable Faceplate
• (1) Installation Sleeve
• (1) Trim Ring
• (1) Wiring Harness
• (1) External Microphone with Bracket
• Receiver Installation Hardware
• (1) PAC SWI-CP2 Steering Wheel Control Interface Module
• (1) 2' PAC Wiring Harness
• (1) 2' Steering Wheel Control Harness

Installation Notes

• The Alpine UTE-63BT is a mechless digital media receiver and does not include a CD player.
• The UTE-63BT listing does not include an AUX input .
• Wireless remote control is sold separately.
• Vehicle-specific dash kit, wiring harness, antenna adapter, or factory amplifier interface may be required and are sold separately unless otherwise included.
• Confirm PAC SWI-CP2 compatibility for your exact vehicle before installation.
