Antari AF-14 IP Effects Fan
- Regular price
- $1,979.99
- Sale price
- $1,979.99
- Regular price
-
$2,479.99

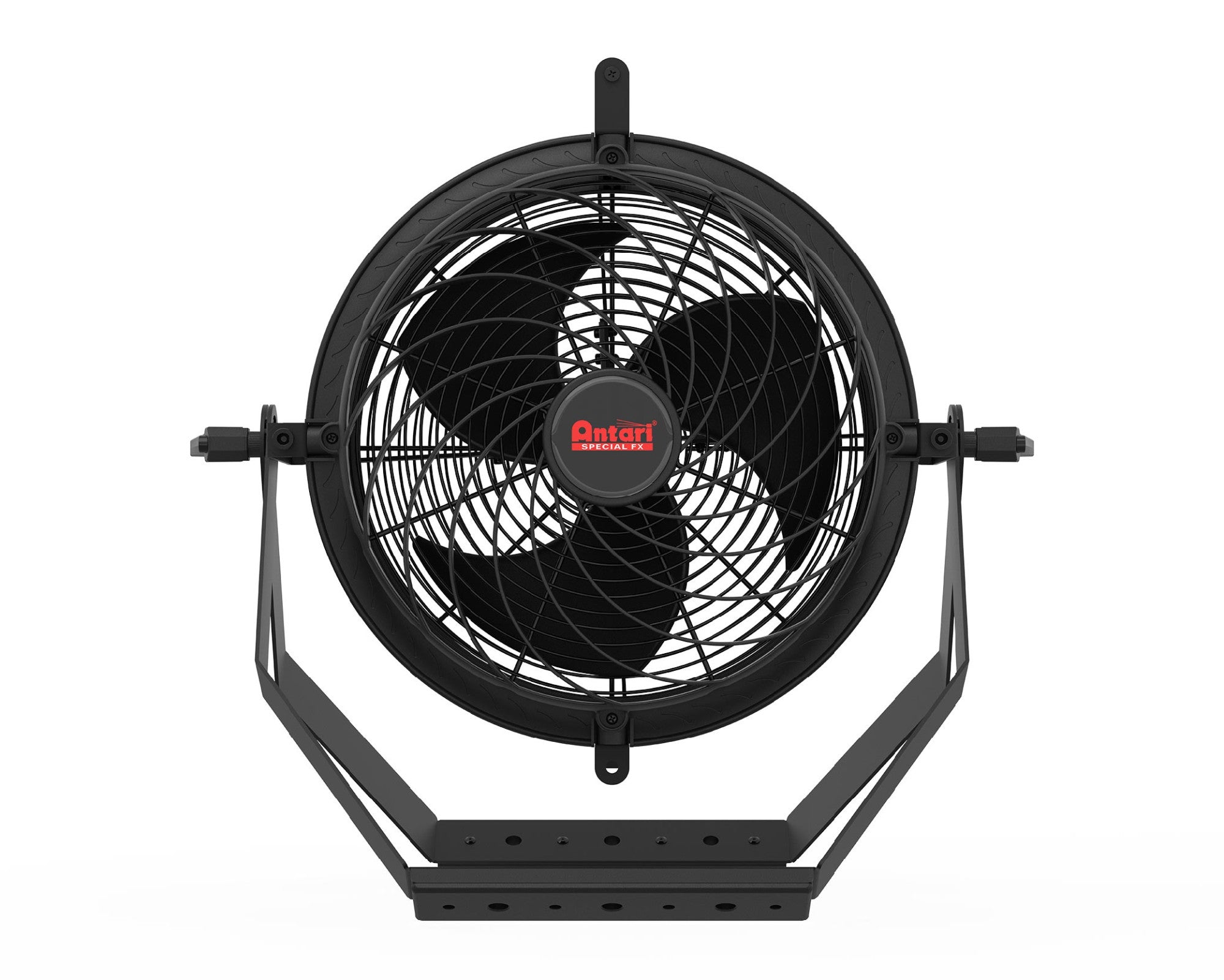

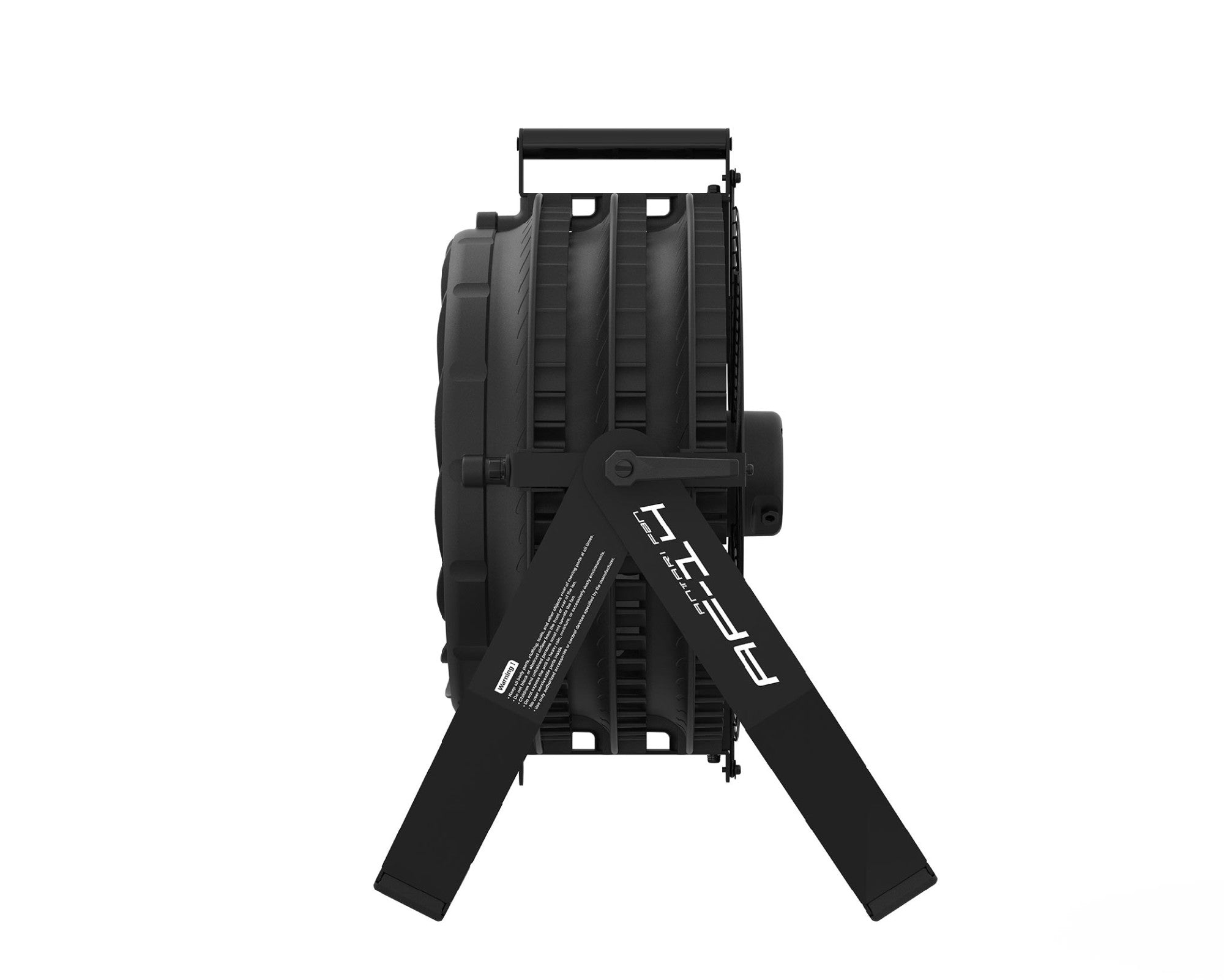

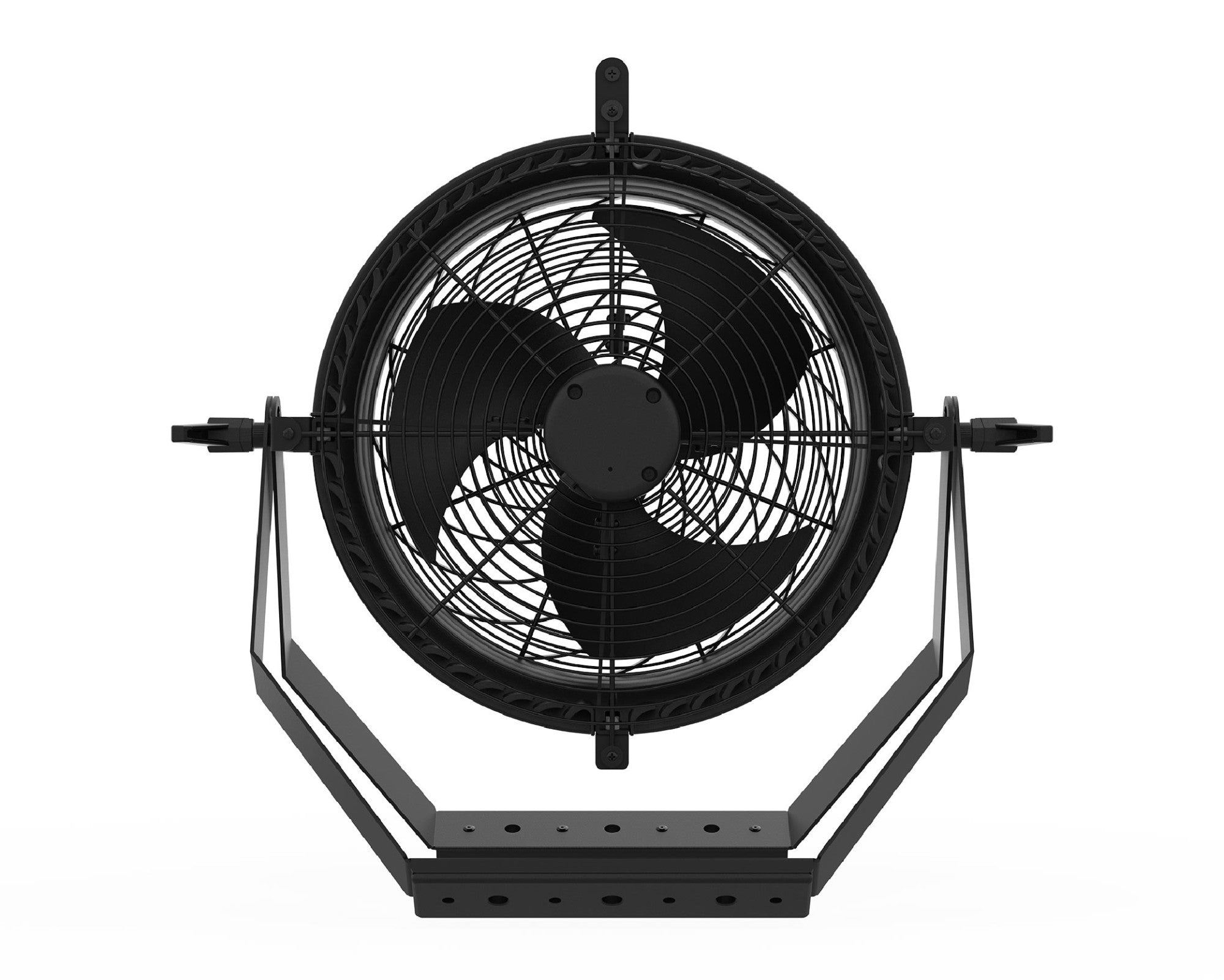

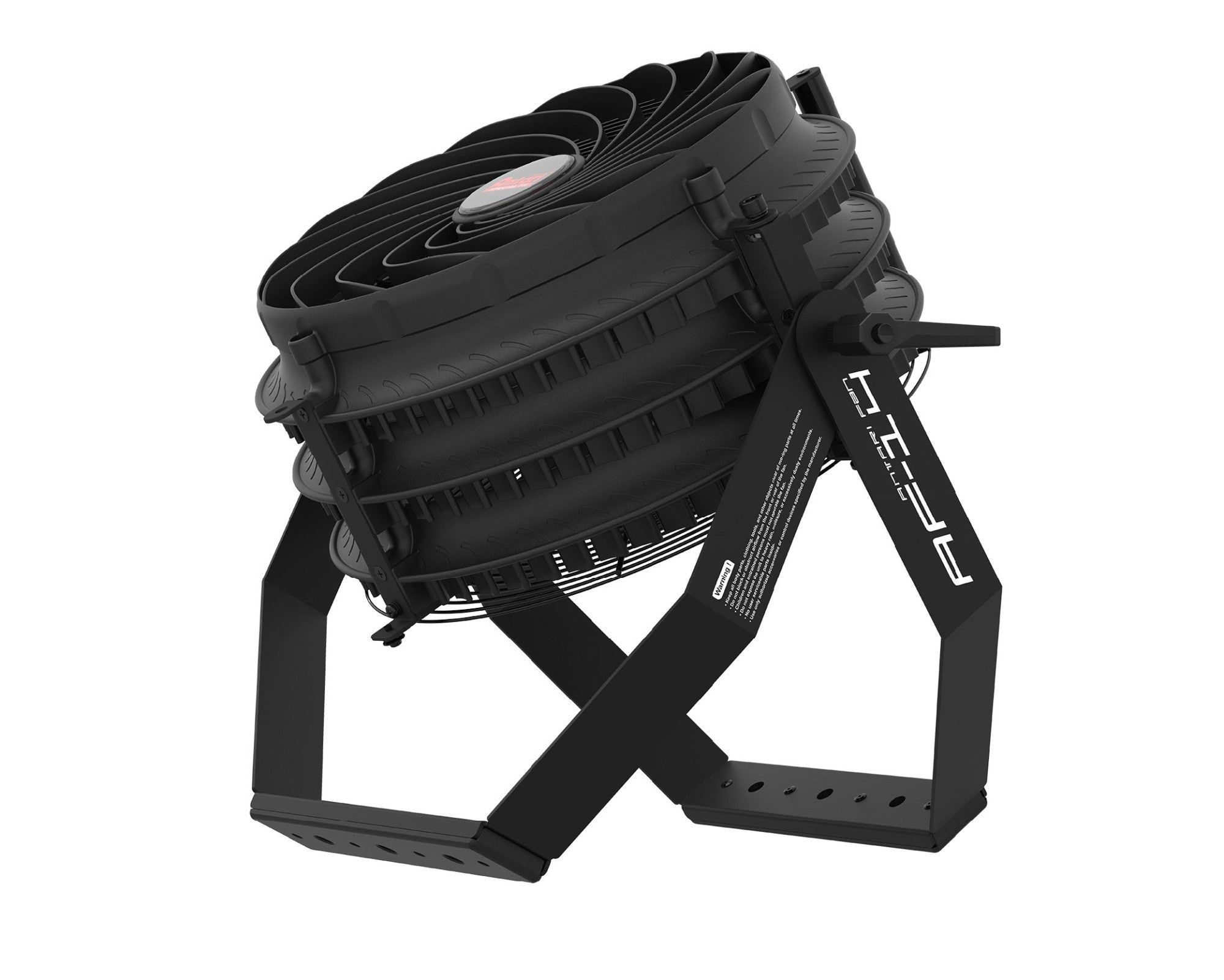

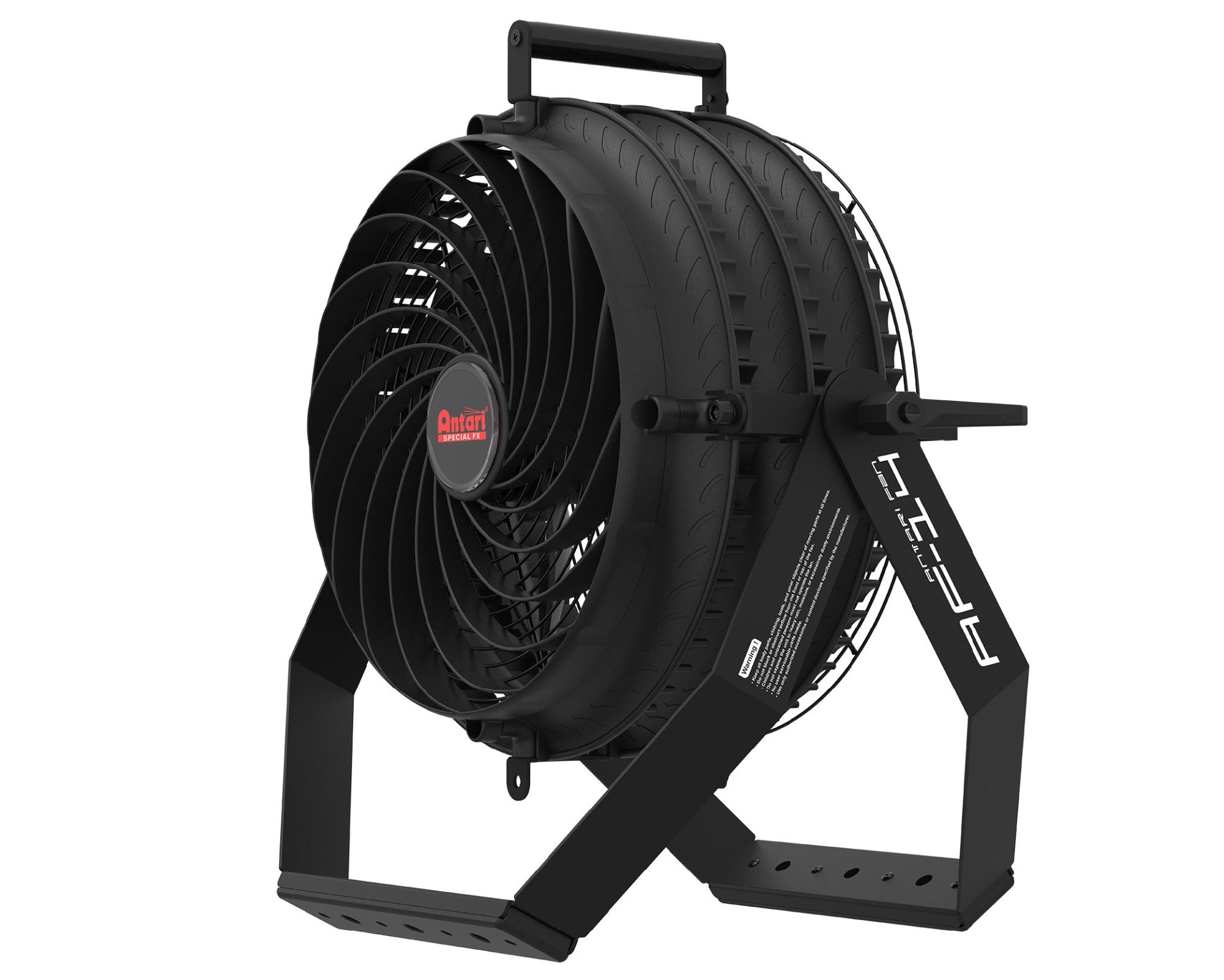

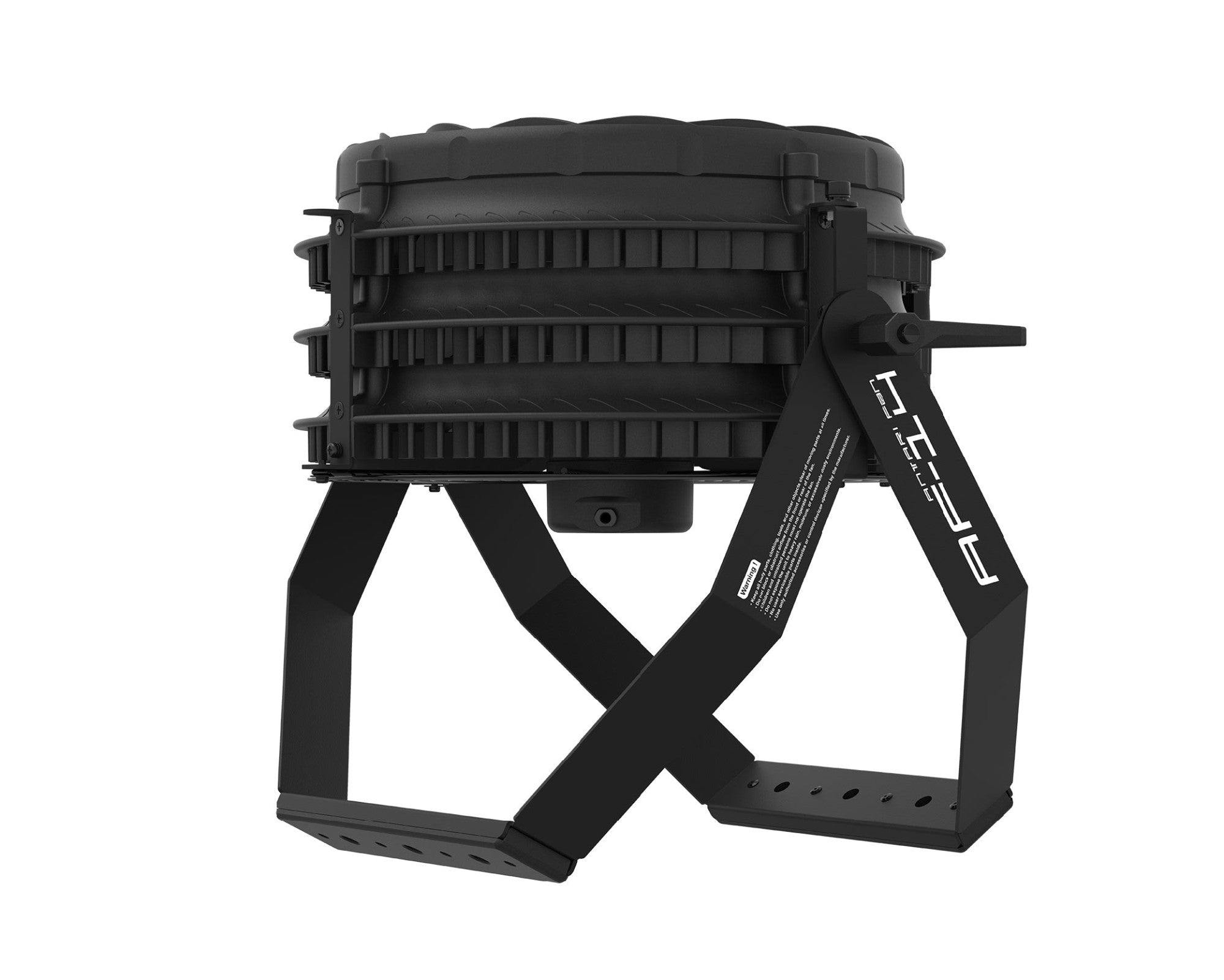

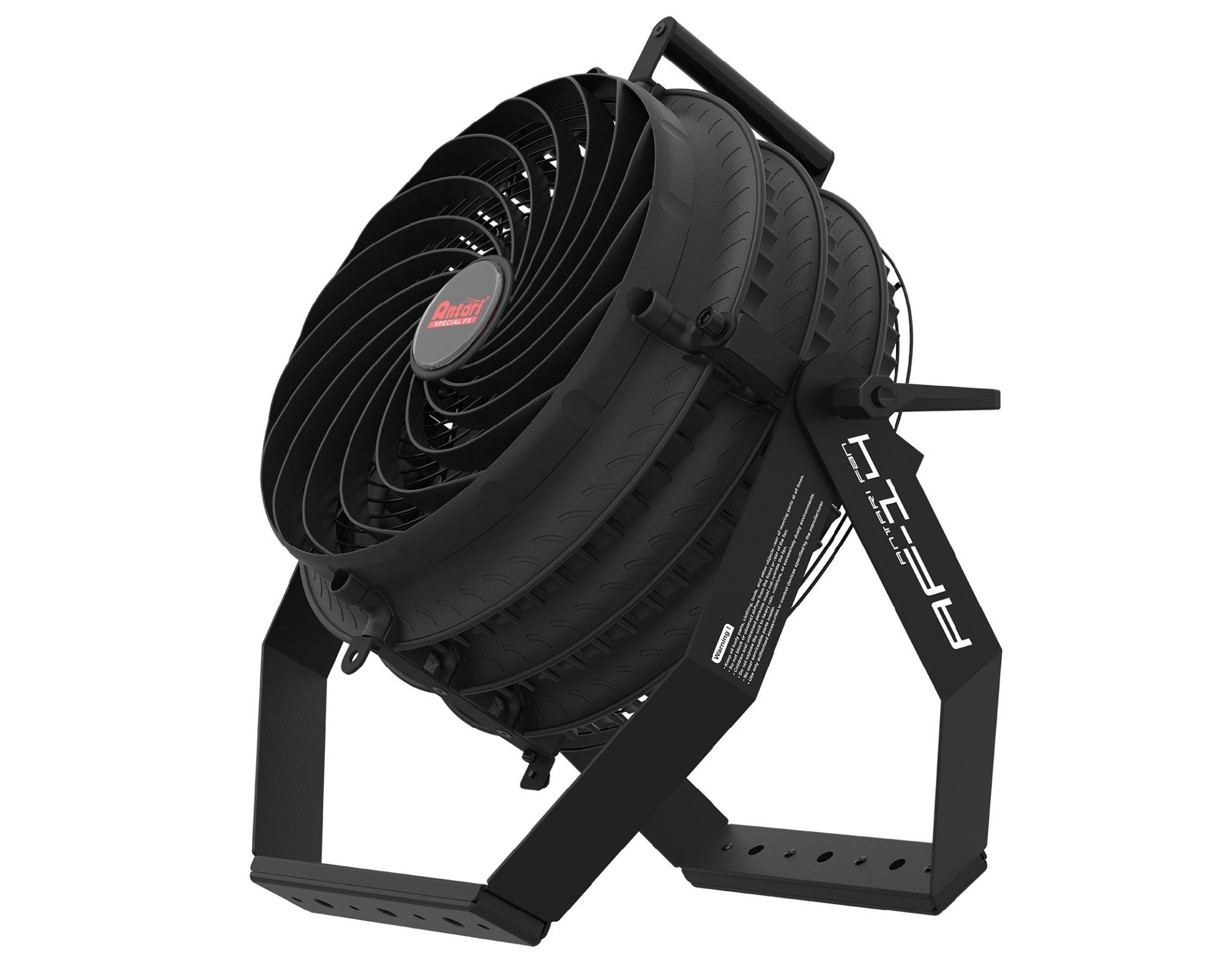

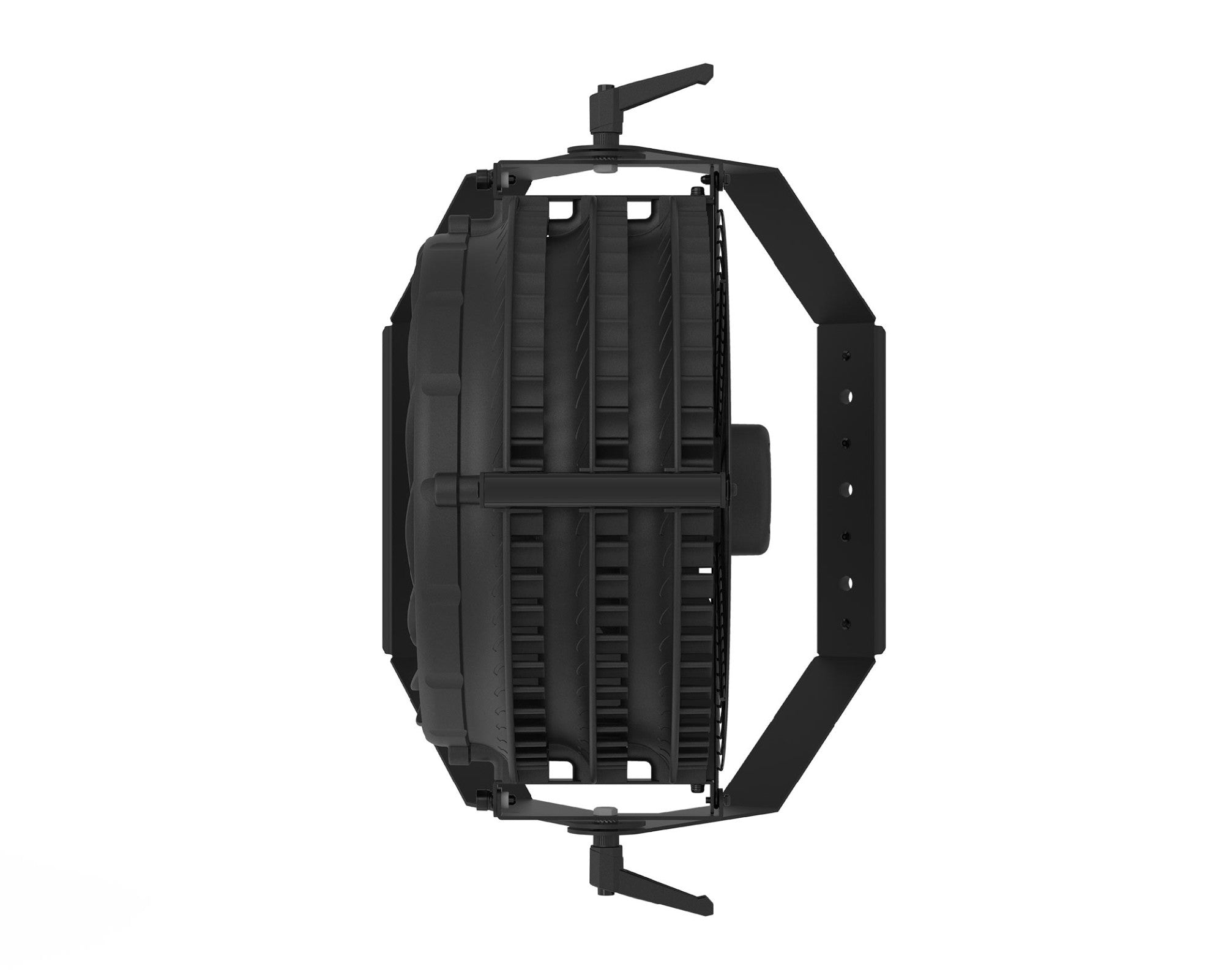

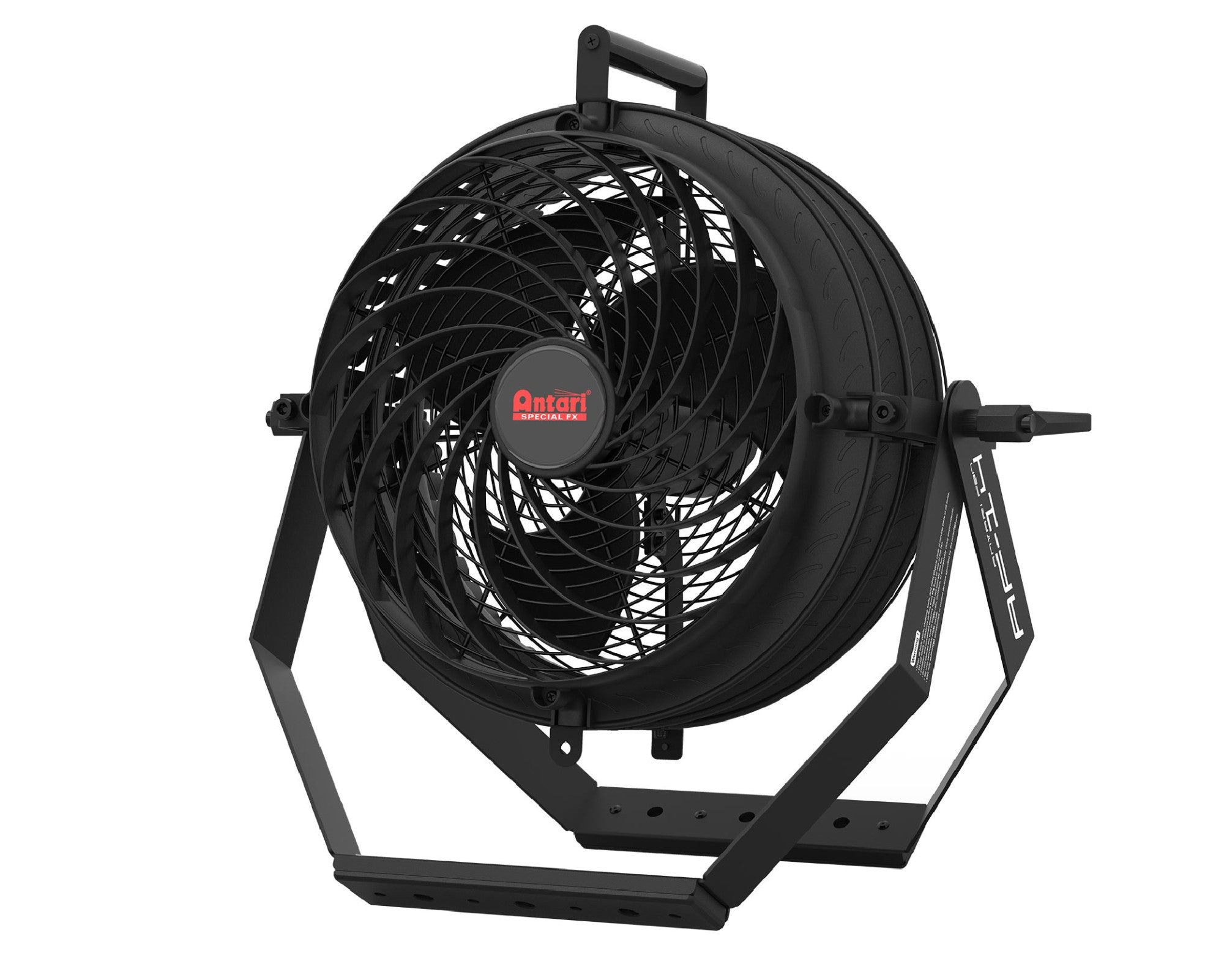

Antari AF-14 IP Effects Fan
Antari AF-14 IP Effects Fan
The Antari AF-14 is a high-velocity fan engineered for professional applications, combining power, precision, and long-term durability. Its IP-55 rated, splash-resistant construction makes it a reliable choice for demanding environments where moisture, dust, or outdoor conditions are a concern — a major advantage for touring, stage productions, and permanent installations.
Featuring a unique swirl-shaped front cover, the AF-14 maintains focused airflow while reducing turbulence and noise. The specially designed aerodynamic blades deliver optimal air distribution with minimal sound, ensuring smooth and quiet performance ideal for stage, studio, and installation use.
Built with robust materials for consistent reliability, the AF-14 operates with a simple plug-and-run setup or can be integrated with an optional control box for remote operation. Whether for fog dispersion or wind effects, the AF-14 provides efficient, quiet, and stable airflow that meets the needs of professional environments.
General Features:
- High-Velocity Airflow
- Swirl-Shaped Front Cover
- Low Noise Operation
- Robust Constrcution
- IP55 Rated Motor
Specifications:
| Input Voltage |
US Model : AC 100 - 120V, 50 / 60 Hz 2A
EU Model : AC 220 - 240V, 50 / 60 Hz 1A |
| Rated Power |
120V 190W
240V 145W |
| Ambient Temp. Range | 0°C - 40°C (32°F - 104°F) |
| Air Flow | 2648 CFM |
| Fan Speed | 1650±40RPM |
| Noise Level | 59.0 dB (Max. Output) |
| Control Methods |
Manual
Timer DMX512 Wireless (Optional) Wireless DMX (Optional) |
| DMX Channels | 1 Channel |
| Interface |
SEETRONIC IP65 Connector (Power)
SEETRONIC IP65 XLR 5-Pin Connector (DMX) |
| Included Accessories |
Dual Use Bracket
AFC-1 Fan Control |
| Optional Accessories |
WTR-110 Wireless Module
ES-W-DMX Wireless DMX |
| Dimension |
L432 W656 H623 mm
L17.00 W25.83 H24.53 inch |
| Weight |
14.8 kg
32.63 lbs |
