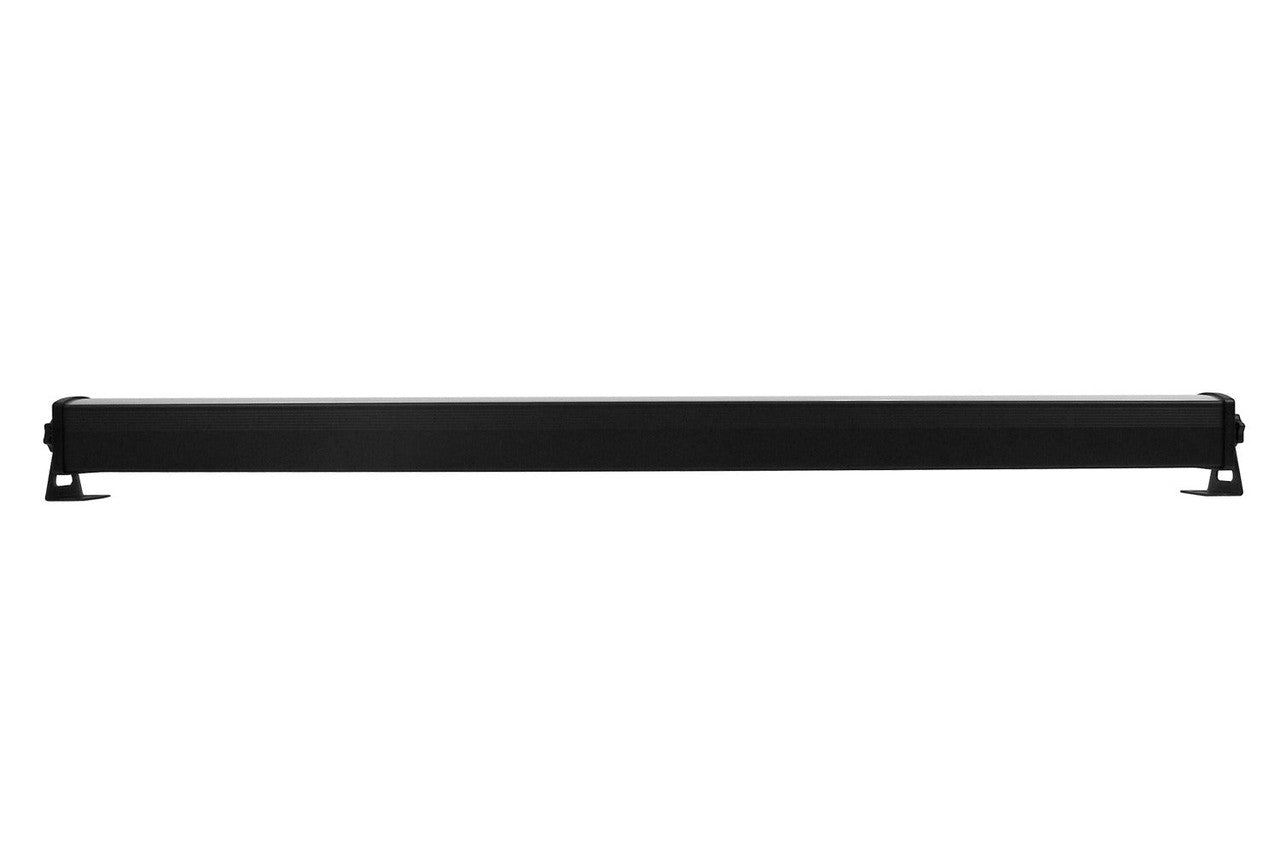

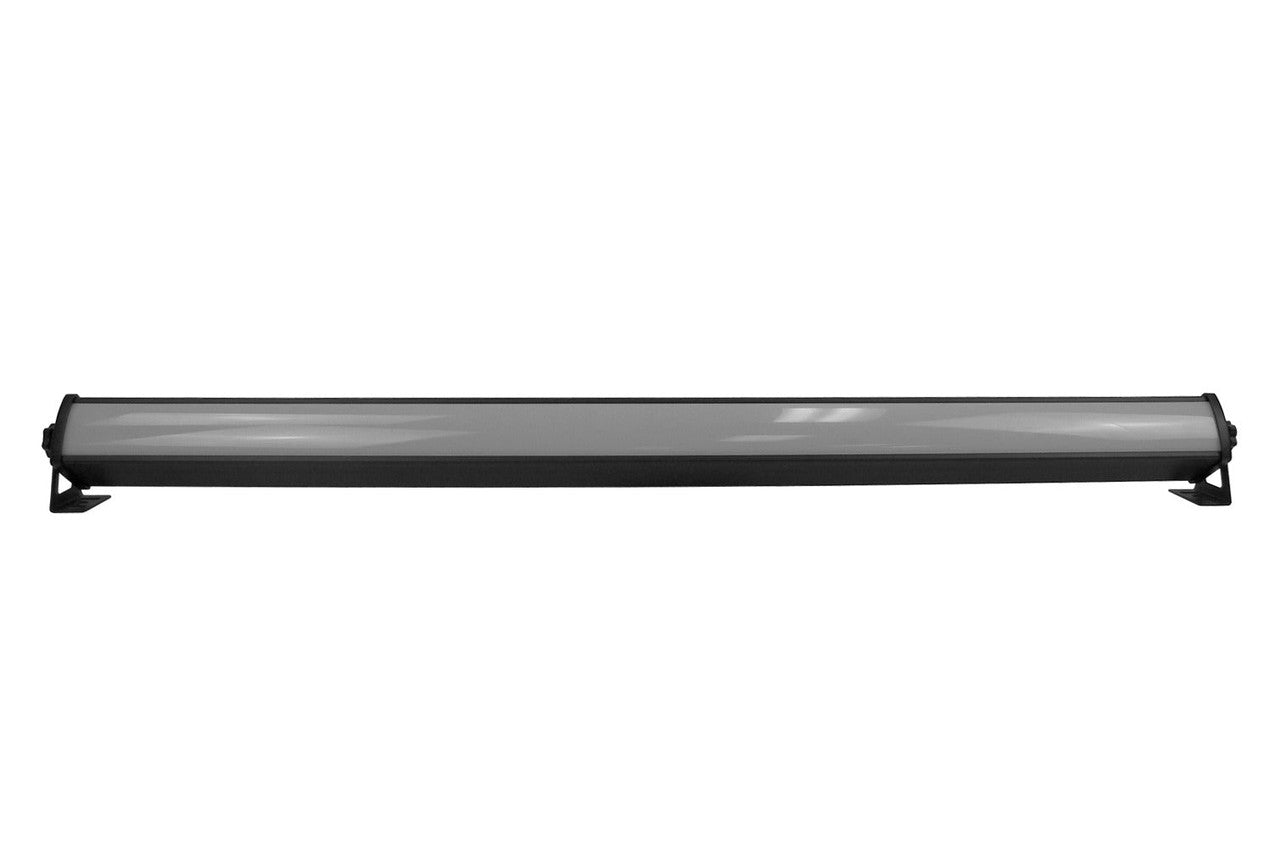

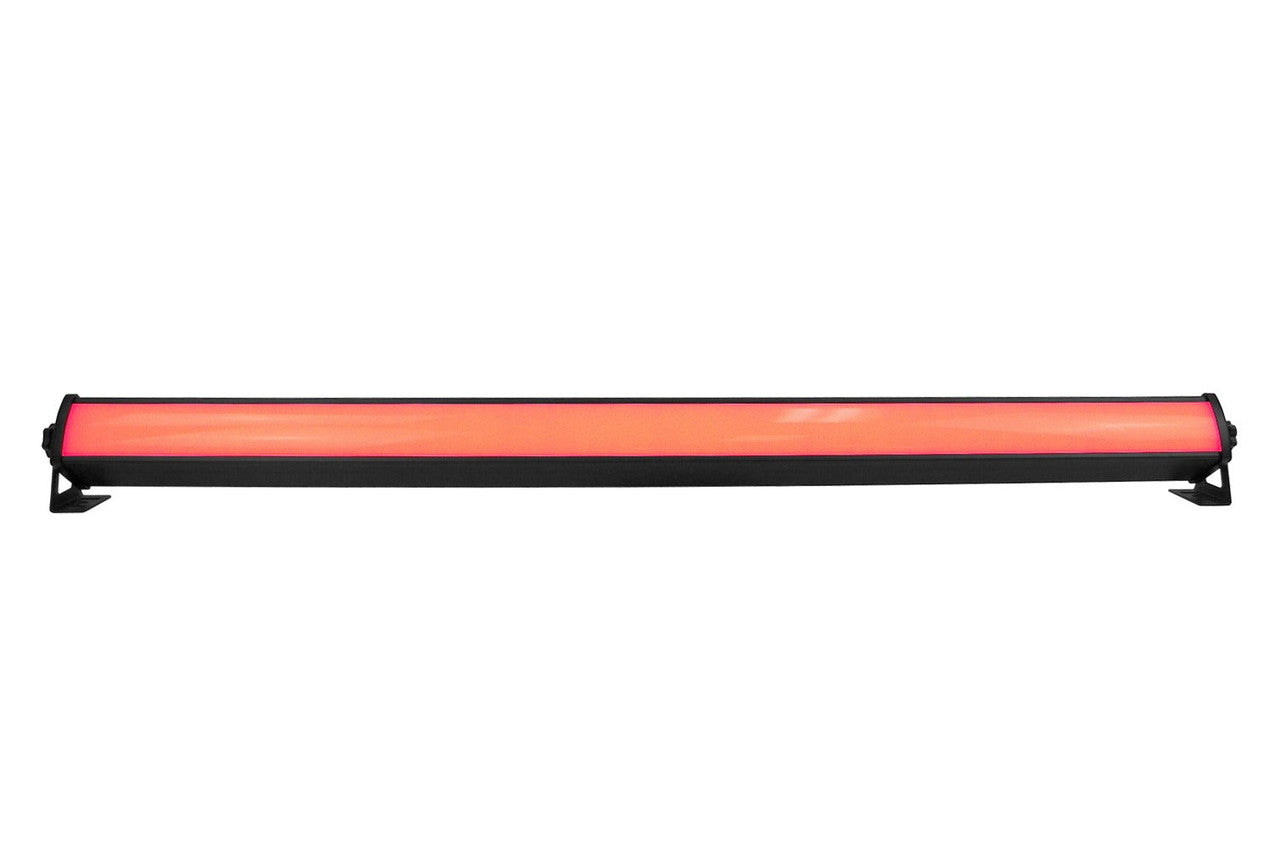

Antari BAR224FXL 224 RGB LED Pixel Bar with 16-Segment DMX Control

The Event Lighting BAR224FXL is a high-impact RGB LED pixel bar designed for clubs, stages, DJs, and event productions that demand bold color washes and dynamic chase effects. Featuring 224 x SMD 5050 RGB 3-in-1 LEDs and 16-segment control, this versatile LED bar delivers vibrant output with precise DMX programming options. With multiple channel modes, onboard effects, and high-frequency 10,000Hz PWM for flicker-free performance, the BAR224FXL is built for reliable indoor professional use.

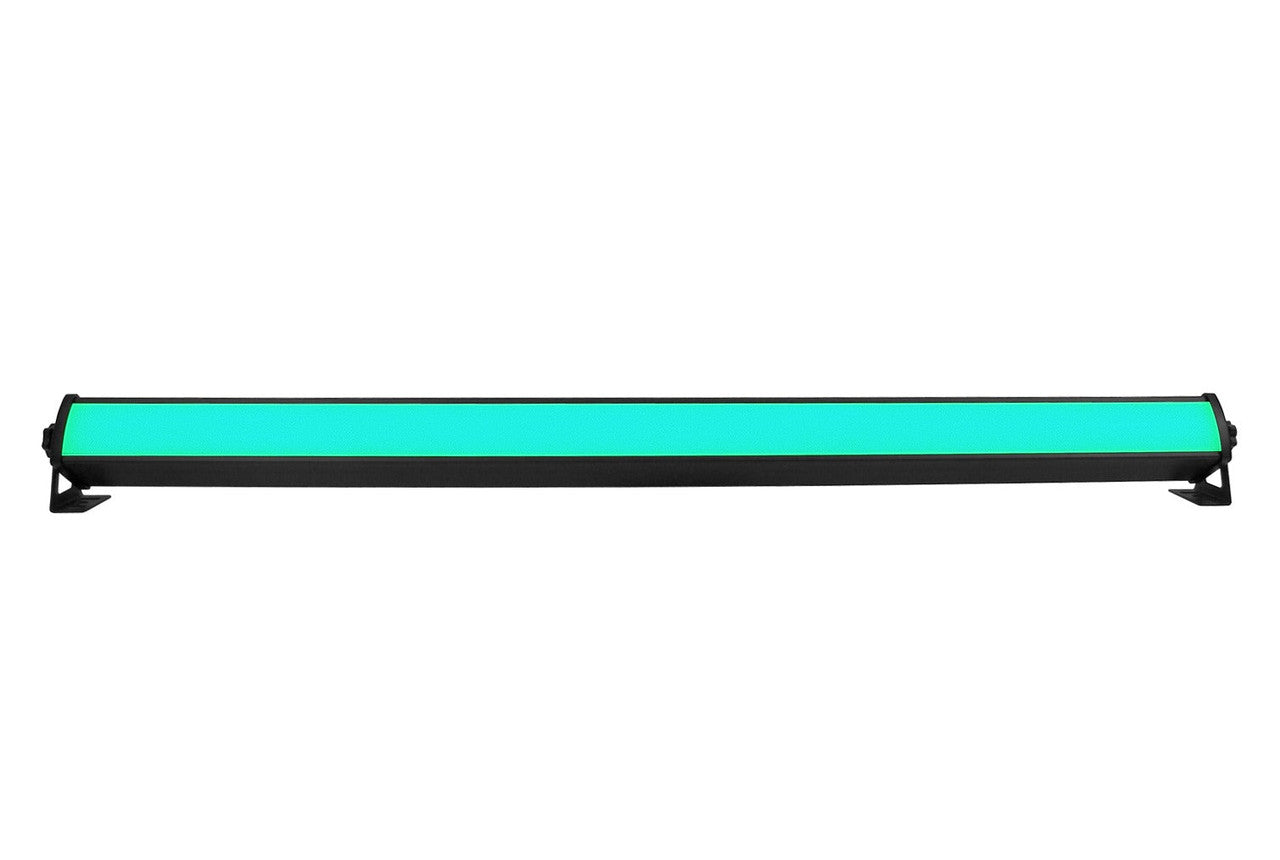

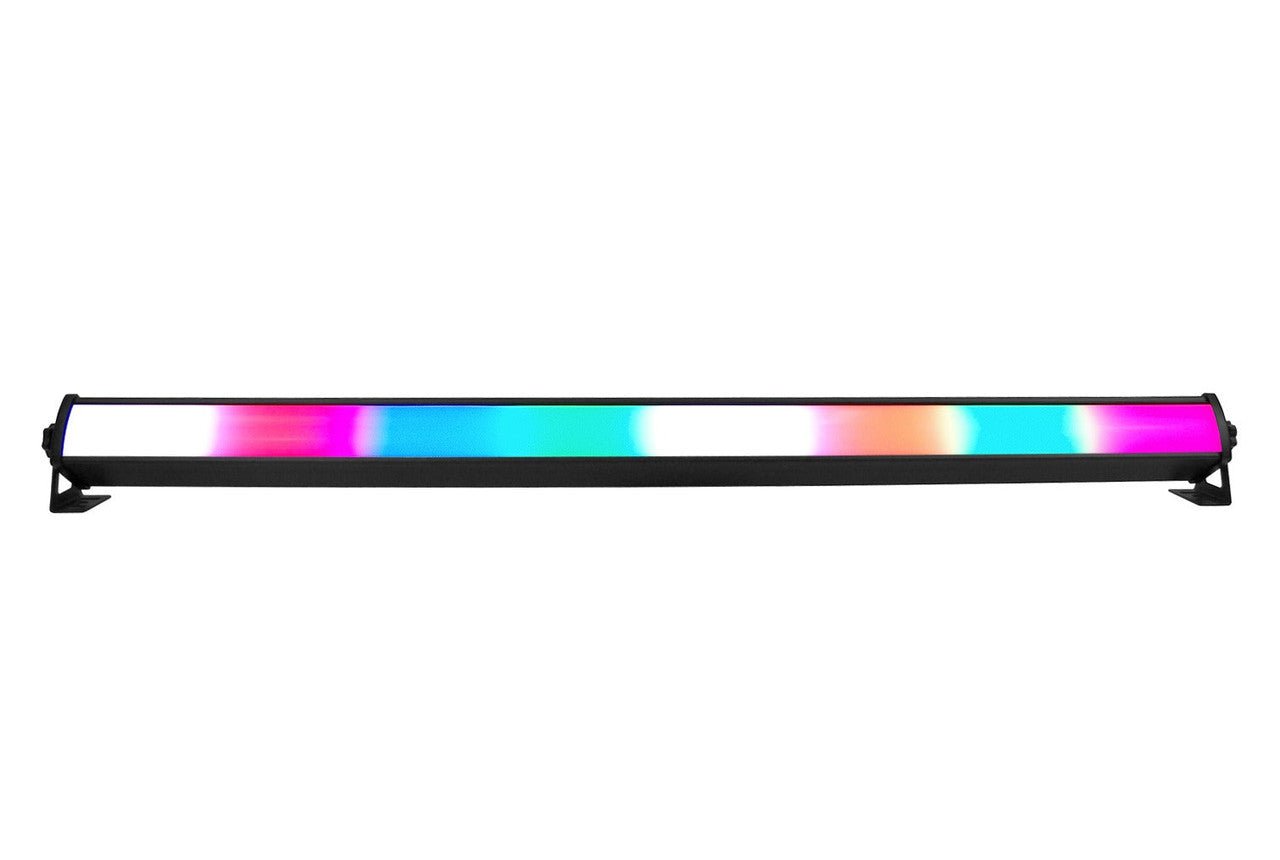

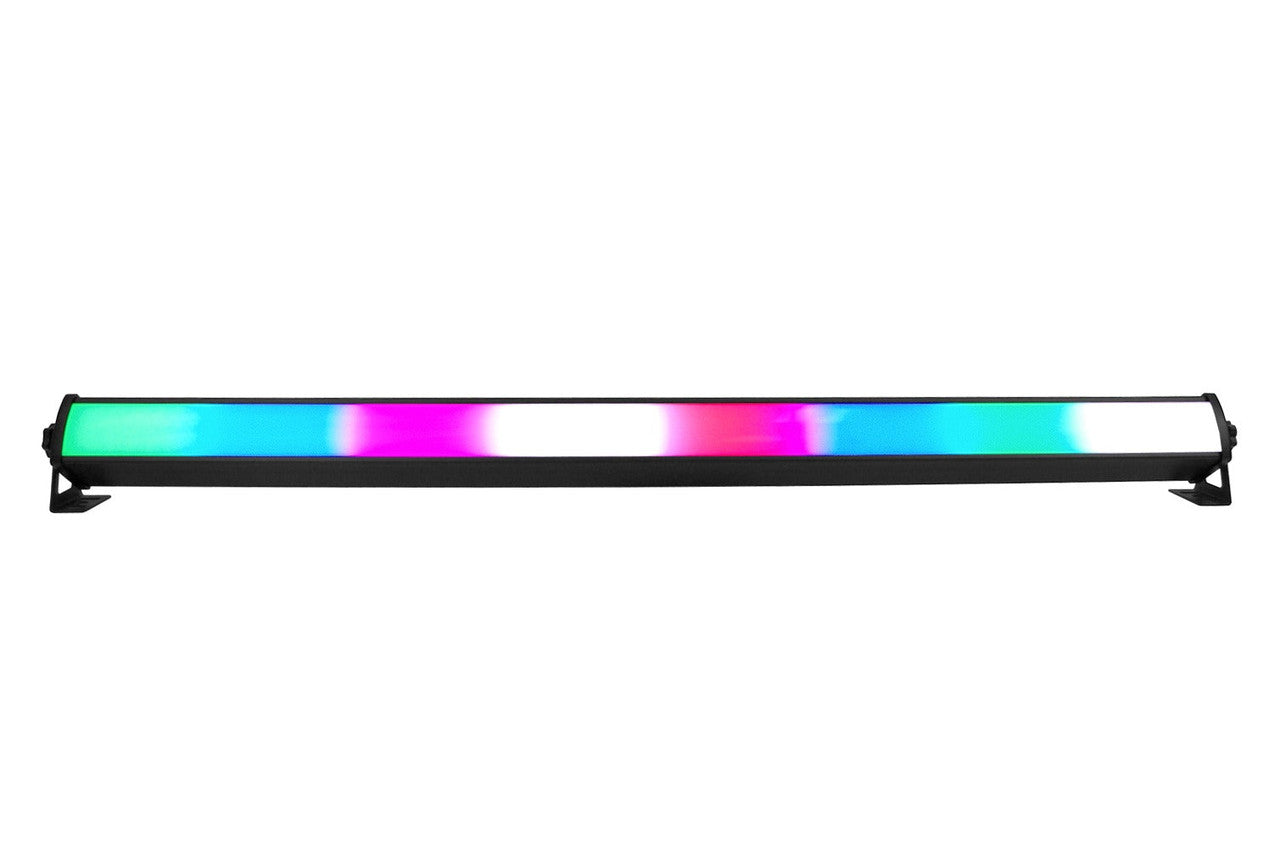

Powerful RGB Output with 16-Segment Pixel Control

Engineered for visual impact, the BAR224FXL allows lighting designers to create flowing color chases, segmented effects, and synchronized patterns across its full length. Ideal for stage backdrops, DJ booths, and truss-mounted installations.

• 224 x SMD 5050 RGB LEDs for bright, saturated color
• 16-segment control for detailed chase and pixel effects
• 90° beam angle for wide wash coverage
• 10,000Hz PWM for flicker-free camera use

Flexible DMX Integration for Creative Programming

The BAR224FXL supports multiple DMX channel modes, giving users the flexibility to run simple wash looks or fully segmented pixel mapping. Onboard modes allow quick setup for mobile applications.

• DMX channel modes: 3 / 5 / 8 / 24 / 48 / 53
• Operation modes: DMX, auto, manual, sound active, master/slave

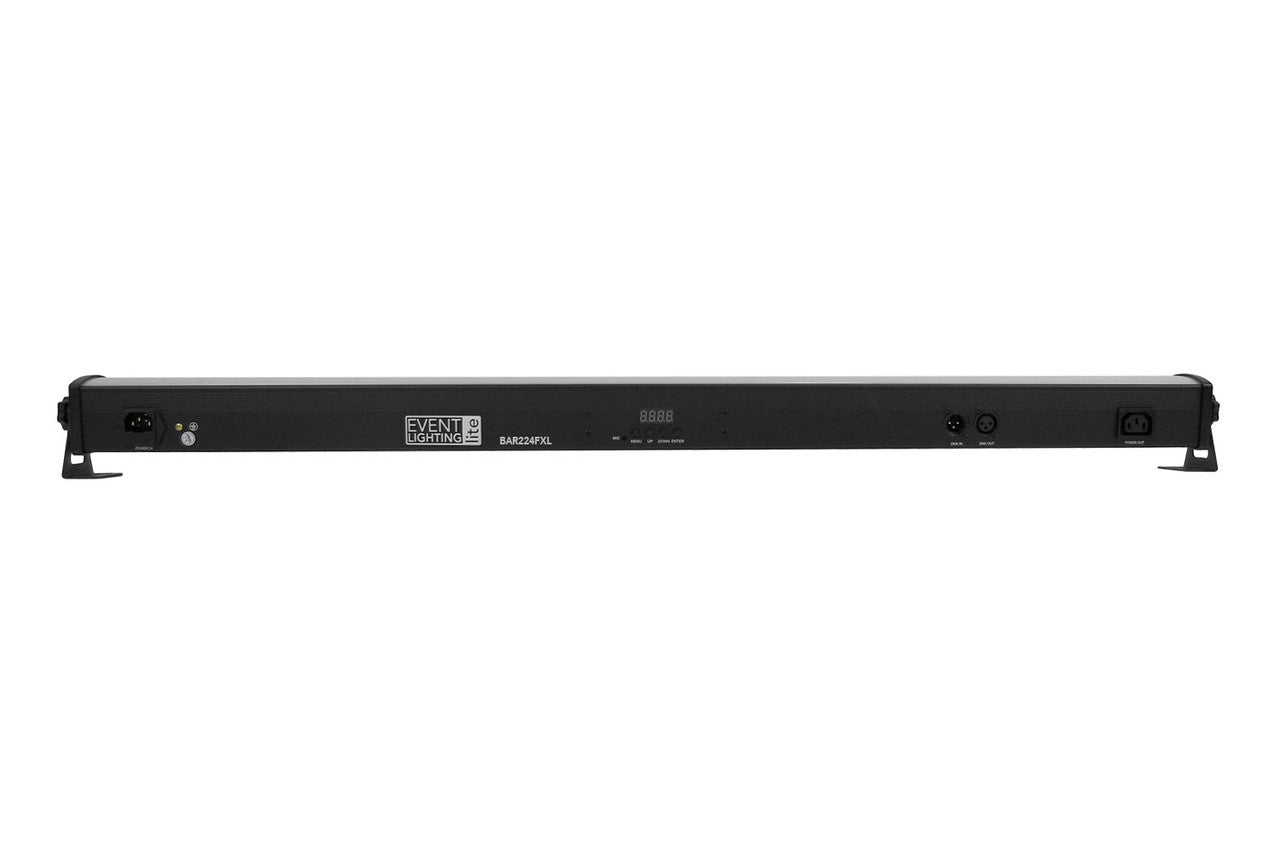

• 3-pin XLR in/out for easy daisy chaining
• IEC power input

Compact Aluminium Design for Stage & Club Installations

Housed in a slim aluminium chassis, the BAR224FXL is lightweight and easy to mount on truss or stage structures. Its streamlined form factor makes it perfect for backline lighting, vertical installations, and creative stage designs.

• Power consumption: 150W
• Input voltage: 110-240V AC, 50/60Hz
• Dimensions: 1100 x 60 x 60mm
• Weight: 3.5 kg

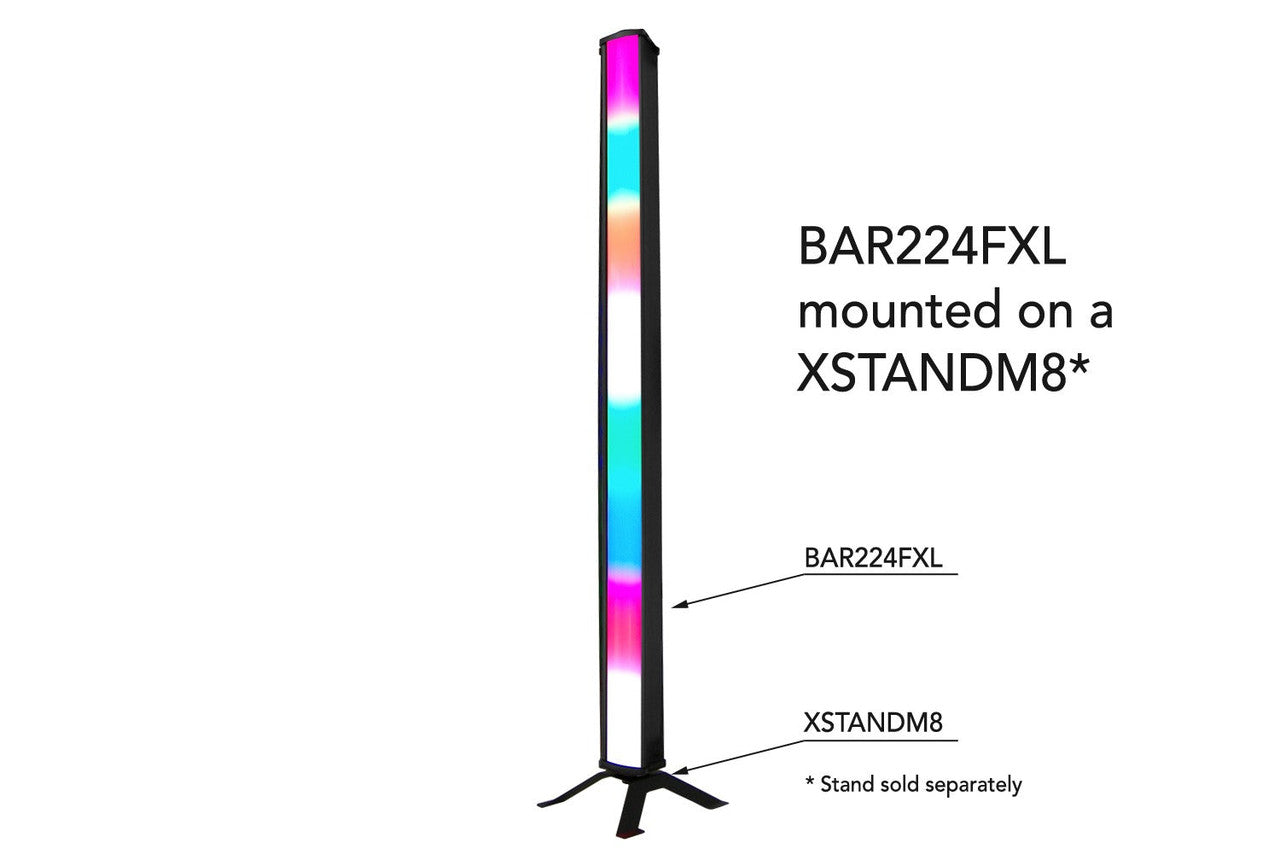

• Optional vertical stand: XSTANDM8 (sold separately)

General Features:

• Light Source: 224 x SMD 5050 RGB LEDs
• Beam Angle: 90°
• PWM: 10,000Hz
• Control Protocol: DMX
• DMX Channels: 3 / 5 / 8 / 24 / 48 / 53
• Control Interface: 3-pin XLR in/out
• Power Consumption: 150W

In The Box

• Event Lighting BAR224FXL RGB LED Pixel Bar
• User documentation
