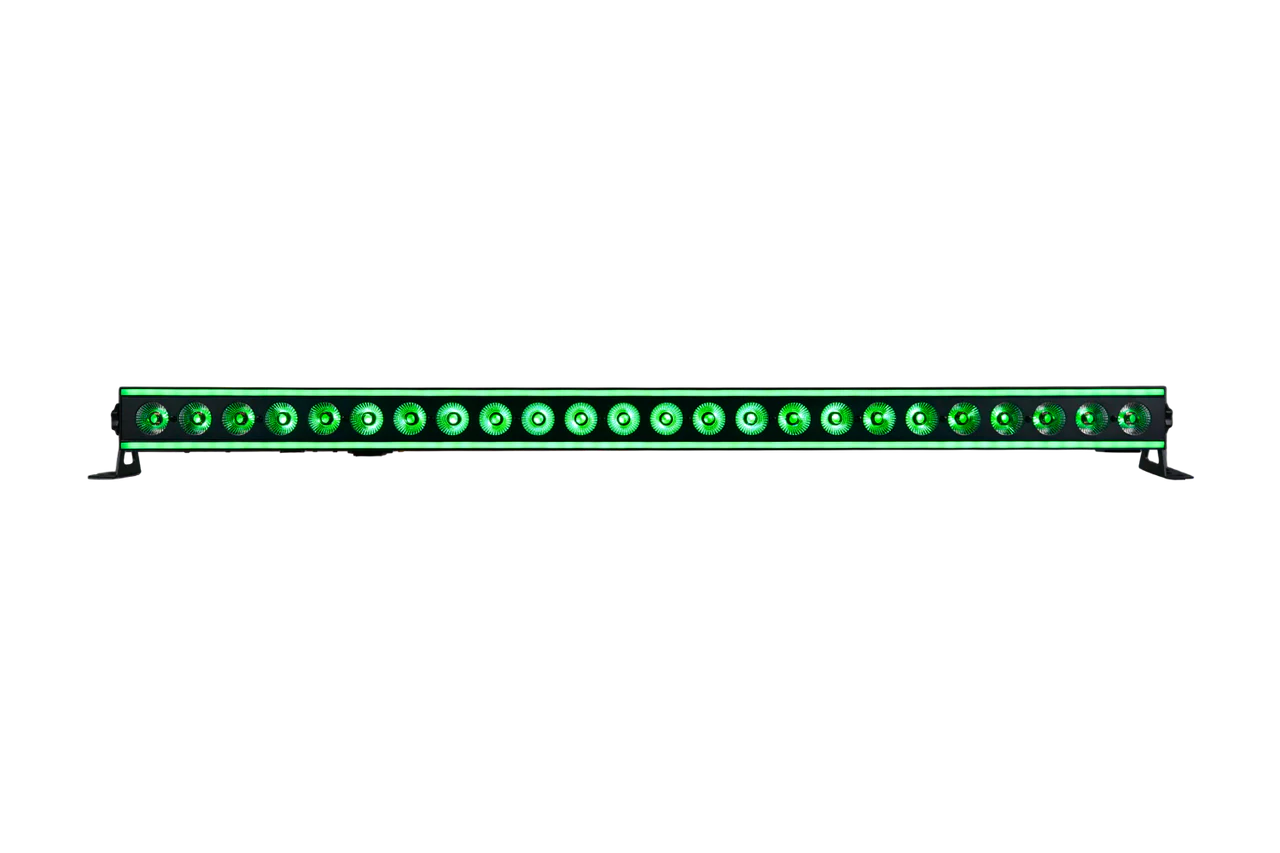

Antari BAR24X4FXL RGBW Pixel Bar with Dual-Layer AURA Effects

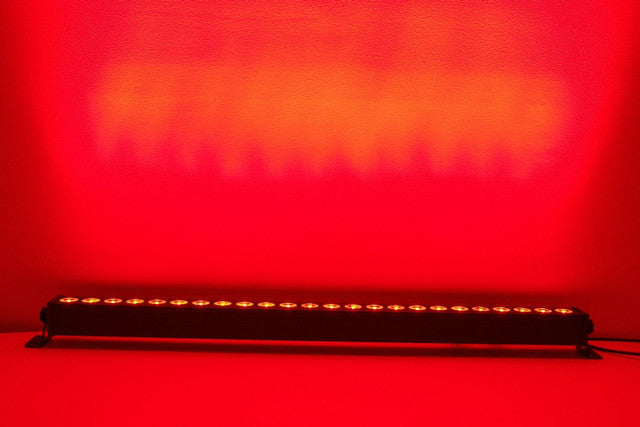

The Event Lighting BAR24X4FXL is a high-impact RGBW pixel control LED bar designed for clubs, stages, houses of worship, and studio environments where dynamic eye candy and layered visual effects are essential. Featuring 24 x 4W RGBW LEDs for powerful wash output and 120 x 0.2W RGB AURA LEDs for stunning pixel effects, this Lite Series fixture delivers vibrant color, animated chases, and immersive audience engagement. With multiple DMX channel modes, RDM support, and IEC power linking, the BAR24X4FXL integrates seamlessly into professional indoor lighting systems.

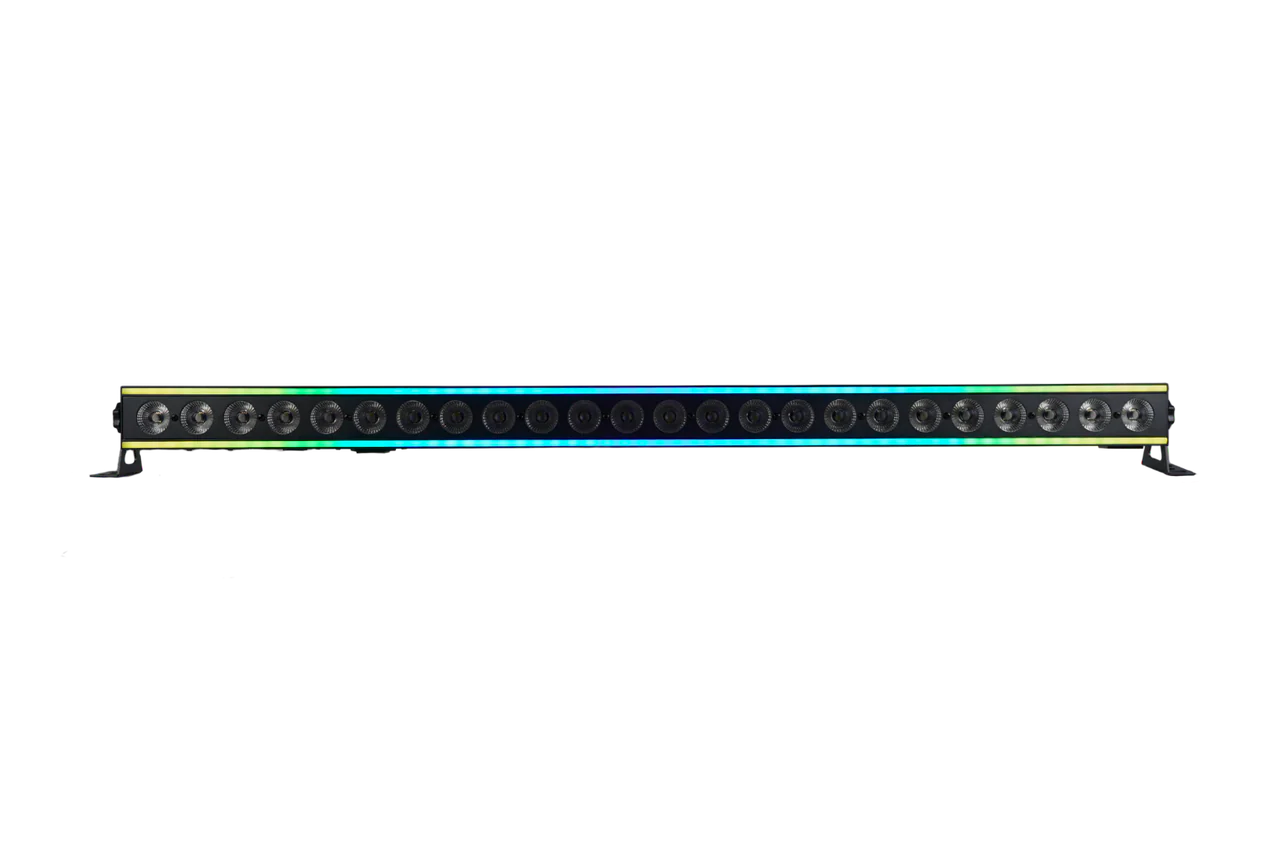

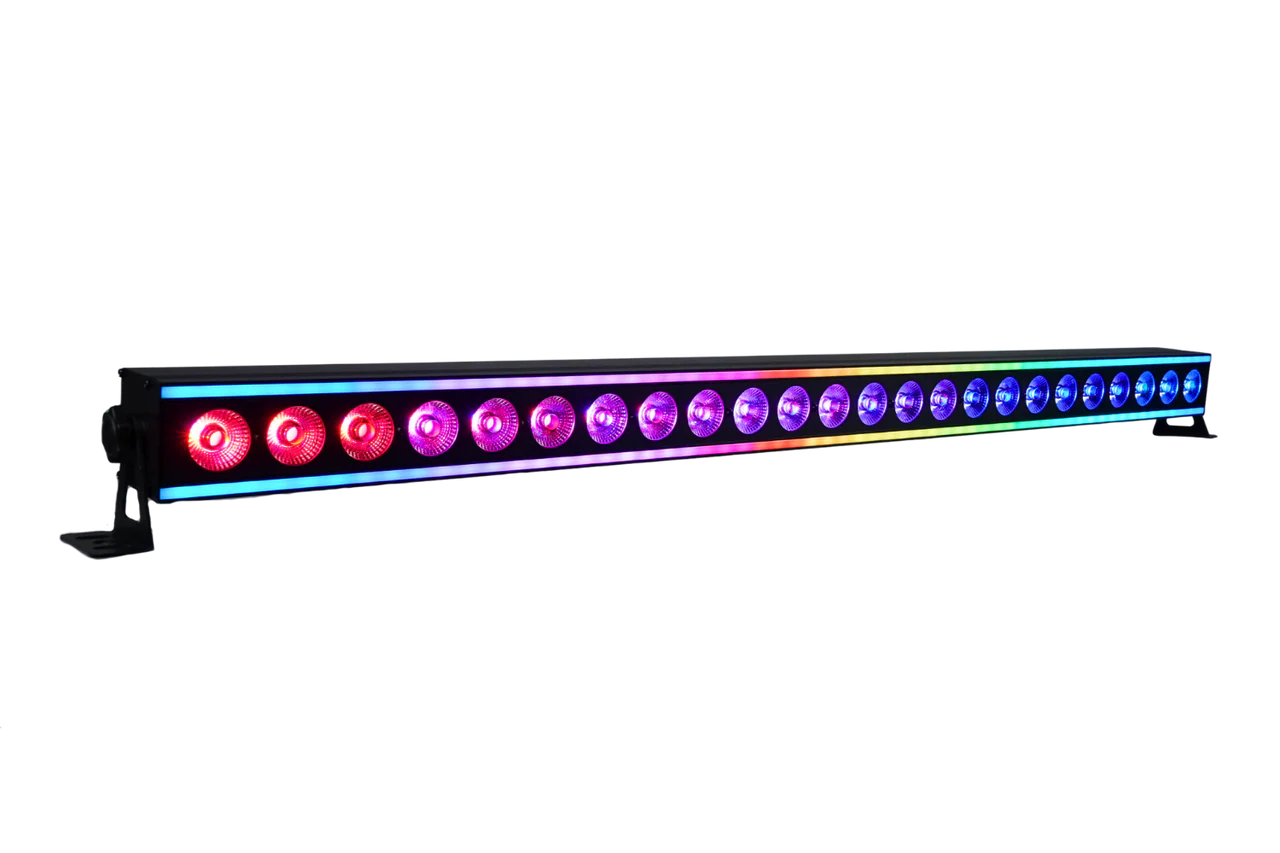

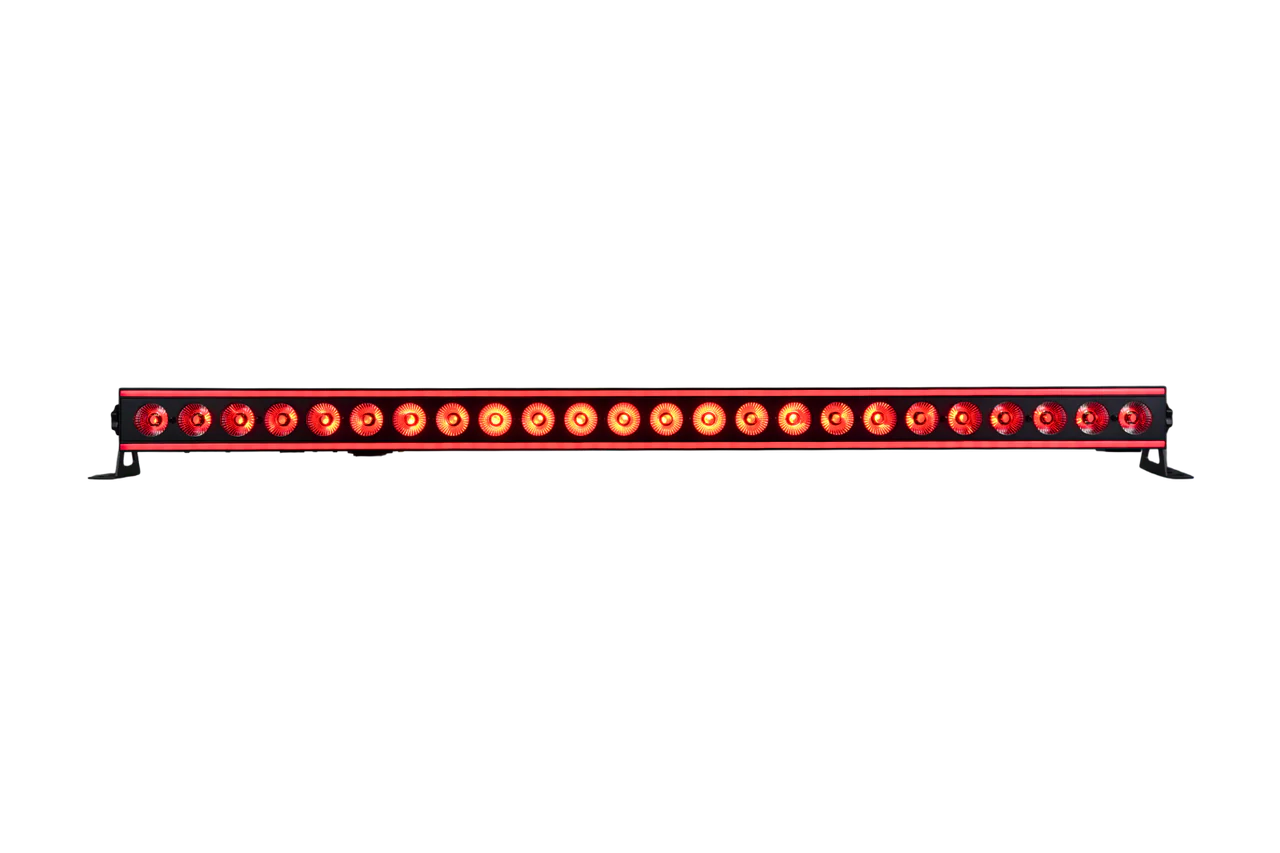

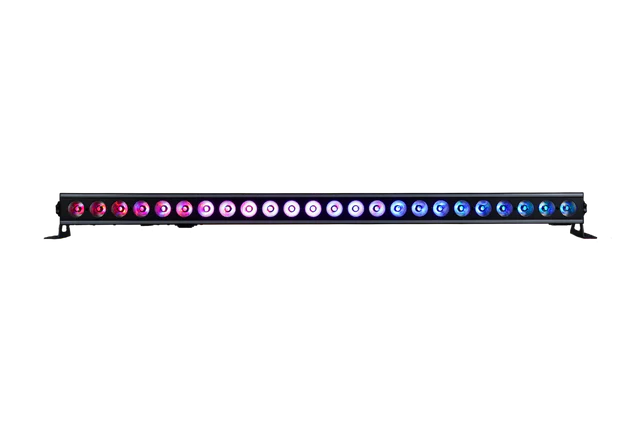

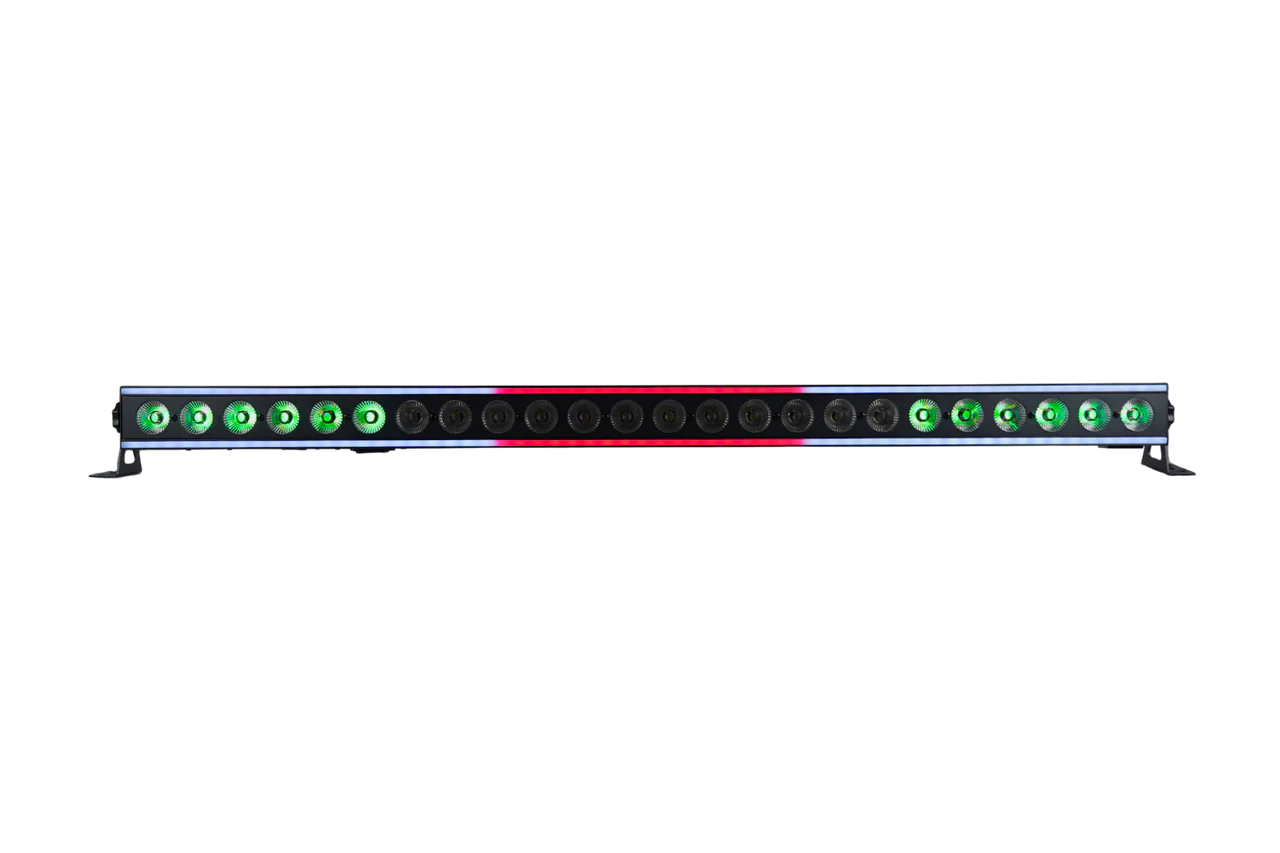

Dual-Layer LED Design for Wash + AURA Effects

The BAR24X4FXL combines bright RGBW wash LEDs with a secondary RGB AURA layer, giving lighting designers the ability to create depth, motion, and striking visual textures from a single fixture.

• 24 x 4W RGBW LEDs for vibrant stage wash
• 120 x 0.2W RGB LEDs for dynamic AURA effects
• 45° beam angle (RGBW wash)
• 25° beam angle (RGB AURA LEDs)
• 50,000-hour LED lifespan

Advanced Pixel Control & Flexible DMX Integration

Built for detailed programming and visual mapping, the BAR24X4FXL offers multiple DMX channel modes, allowing anything from simple color washes to fully segmented pixel control across both LED layers.

• DMX channel modes: 8 / 15 / 40 / 80 / 128
• DMX, auto, manual, sound active, master/slave modes
• RDM support for remote addressing

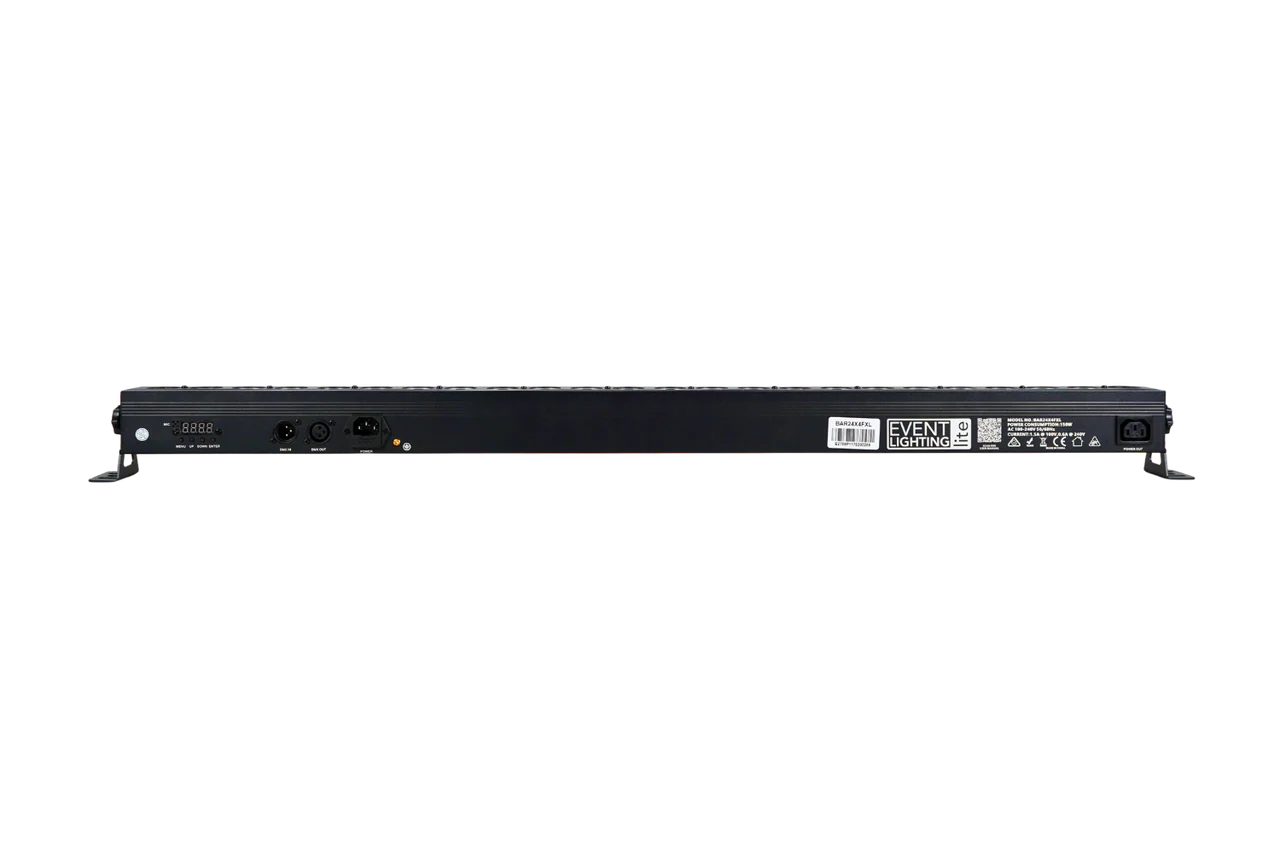

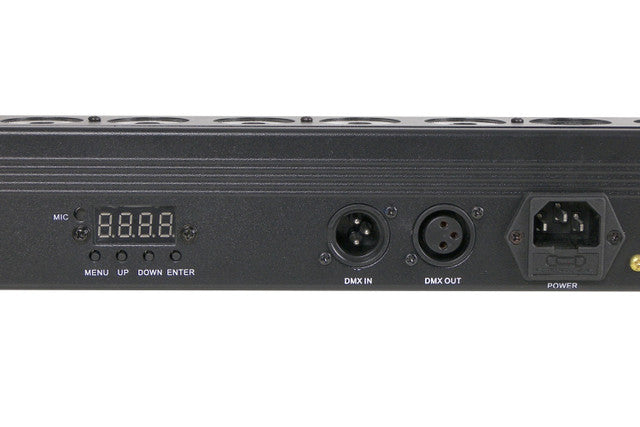

• 3-pin XLR in/out for straightforward integration
• IEC power in/out (cable included) for easy linking

Lightweight Aluminium Construction for Touring & Install

Housed in a durable black aluminium chassis, the BAR24X4FXL is built for mobile production and permanent installations alike. Its streamlined profile makes it ideal for stage backlines, truss mounting, and vertical positioning with optional accessories.

• Aluminium housing in matte black finish
• Power consumption: 150W
• IP20 rated for indoor professional use
• Dimensions: 1100 x 150 x 120mm (43.3" x 5.9" x 4.7")
• Weight: 4.5 kg (10 lbs)

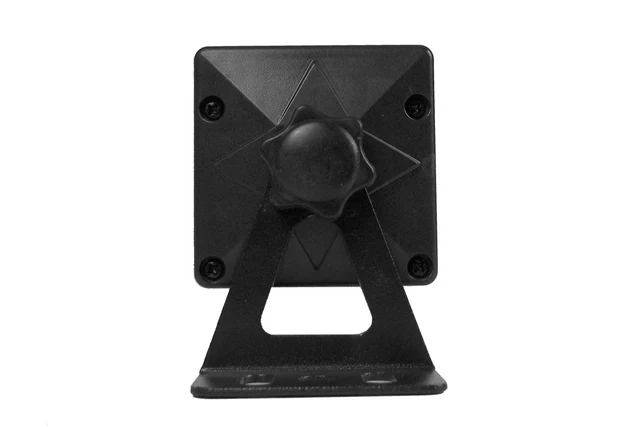

• Optional vertical stand: XSTANDM8

General Features:

• Light Source: 24 x 4W RGBW LEDs + 120 x 0.2W RGB LEDs
• Beam Angles: 45° (RGBW), 25° (RGB)
• Control Protocol: DMX with RDM
• DMX Channels: 8 / 15 / 40 / 80 / 128
• Data Connection: 3-pin XLR in/out
• Power Connection: IEC in/out
• Input Voltage: 110-240V AC, 50/60Hz
• Power Consumption: 150W
• IP Rating: IP20

In The Box

• Event Lighting BAR24X4FXL RGBW Pixel Bar
• IEC power cable
• User documentation
