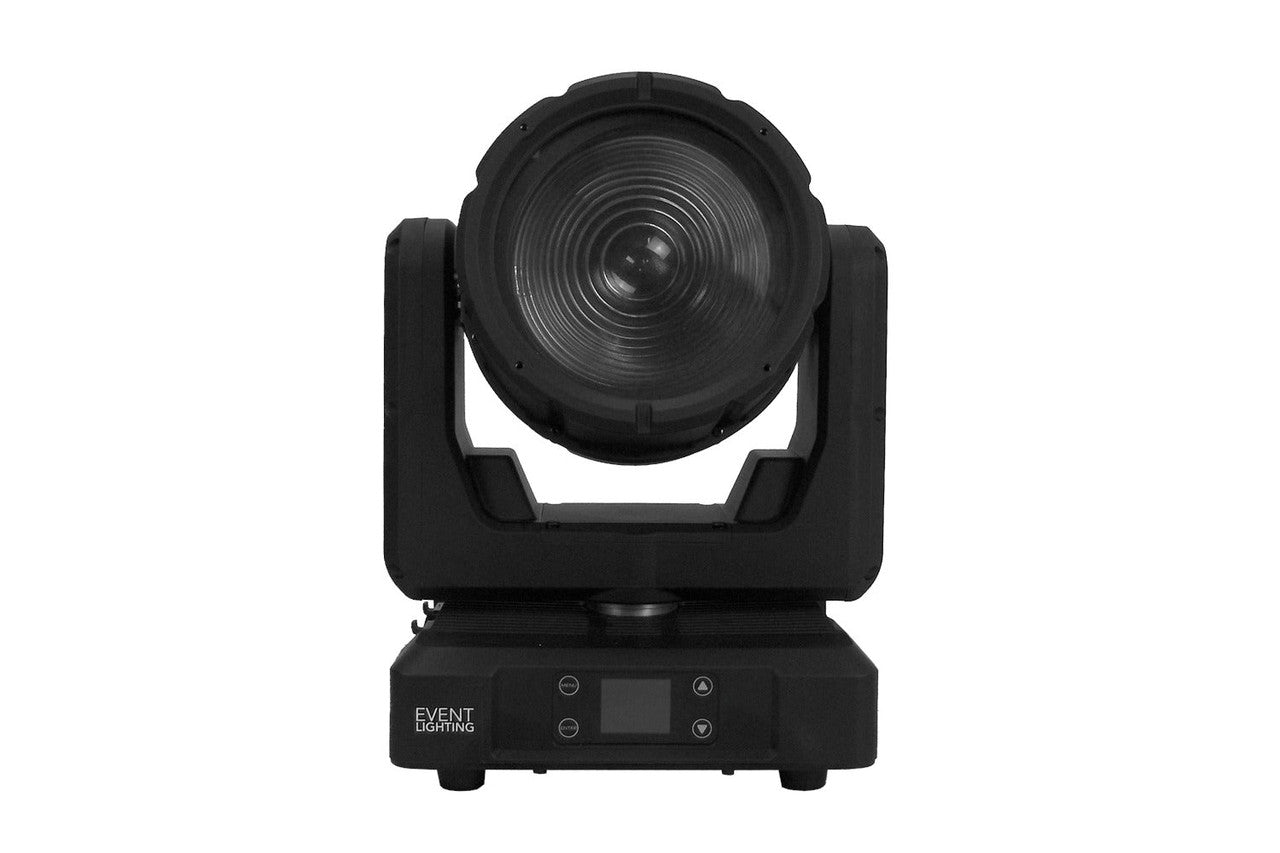

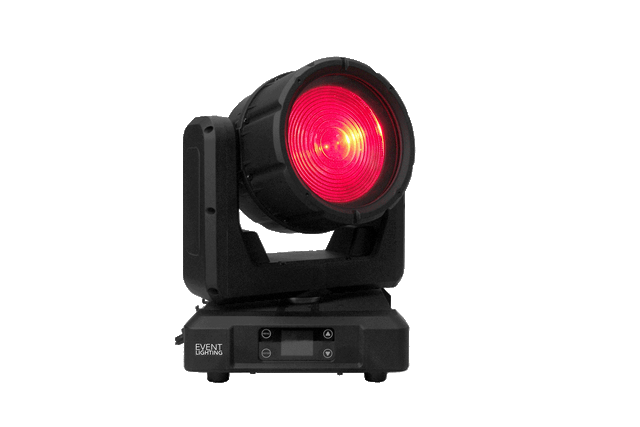

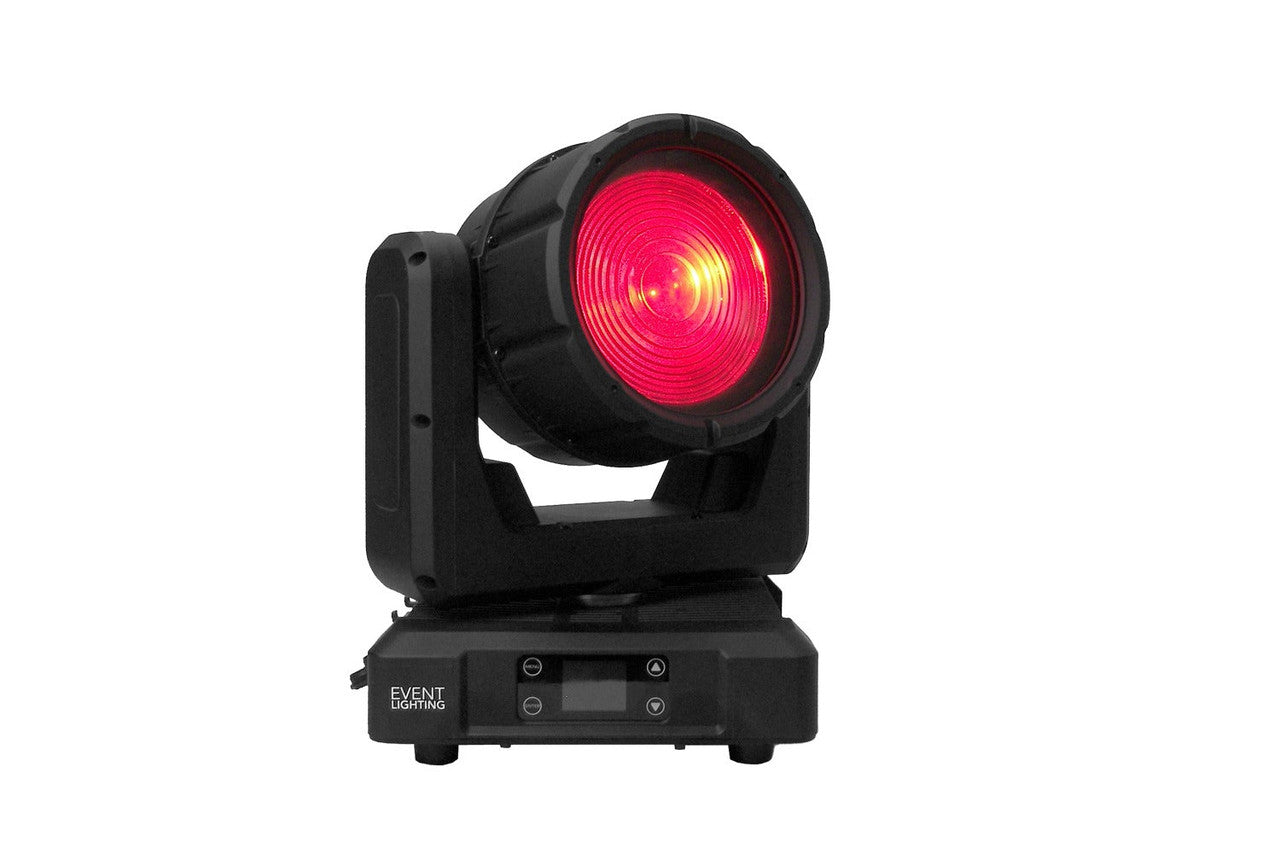

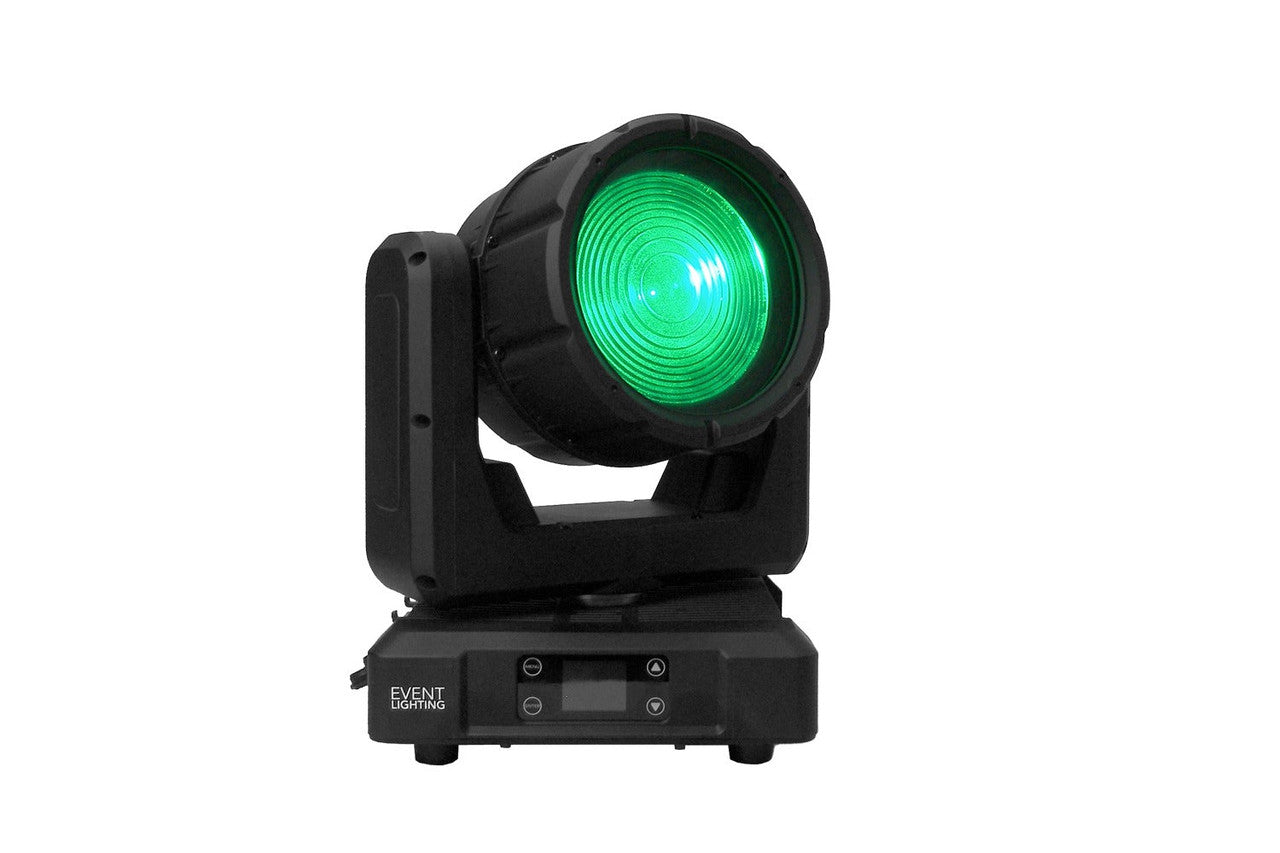

Antari DELUGE M120WFX Event Lighting IP65 Moving Head Zoom Wash with RGBL Engine & Pixel Aura Effects

The Event Lighting DELUGEM120WFX is a compact yet powerful IP65 moving head zoom wash engineered for outdoor stages, architectural lighting, festivals, and permanent installations. Combining a high-output 120W RGBL LED engine with a large 140mm Fresnel lens and a surrounding ring of 48 x 1W RGBWW Aura LEDs, this fixture delivers both smooth, wide wash coverage and eye-catching pixel effects in one versatile design. With DMX, ArtNet, and sACN control, flicker-free operation, and motorized zoom from 3.8° to 38°, the DELUGEM120WFX gives lighting professionals powerful creative flexibility in a fully weatherproof IP65 enclosure.

Powerful Fresnel Wash with Motorized Zoom

At the heart of the DELUGEM120WFX is a single 120W RGBL light engine paired with a precision 140mm Fresnel lens. This combination produces a rich, even wash with impressive output and smooth edge control—ideal for stages, facades, and outdoor worship environments.

• 1 x 120W RGBL LED for vibrant, full-spectrum color mixing
• 93,750 lux @ 2m (3.8°) for high-impact close-range performance
• Motorized zoom (3.8°-38°) for beam-to-wash flexibility
• 140mm Fresnel lens for smooth, even field distribution
• Flicker-free operation for broadcast and camera applications
• 50,000-hour LED lifespan for long-term reliability

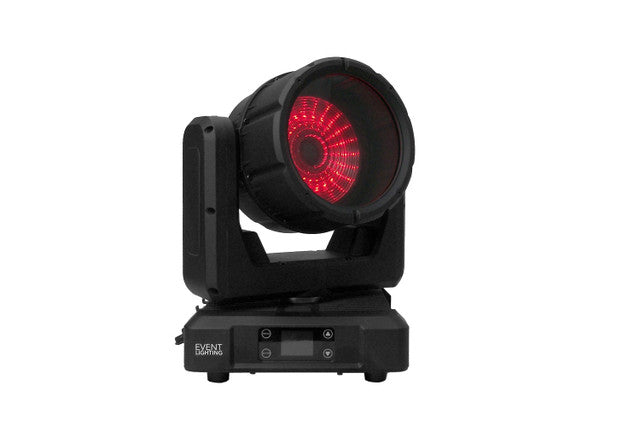

Integrated Aura Ring with Pixel Mapping Control

Surrounding the main wash engine are 48 x 1W RGBWW Aura LEDs, delivering stunning eye-candy effects and intricate pixel mapping capabilities. This dual-layer design allows you to combine rich wash output with animated halo effects for dynamic visual impact.

• 48 x 1W RGBWW Aura LEDs for dynamic visual effects
• Advanced Aura LED effects with RGB control
• Multiple DMX channel modes (18 / 20 / 23 / 41 / 225) including detailed pixel control
• 0-100% dimming with 16-bit resolution for smooth fades
• Integrated strobe for high-energy moments
• 540° pan / 230° tilt for versatile positioning

IP65 Outdoor Design with Advanced Network Control

Built to withstand the elements, the DELUGEM120WFX features a rugged IP65-rated housing with True1 power connectivity. Designed for modern lighting systems, it supports DMX, ArtNet, and sACN protocols, making it ideal for networked stage and architectural lighting systems.

• IP65 rated for all-weather outdoor use
• Control via DMX, ArtNet, and sACN

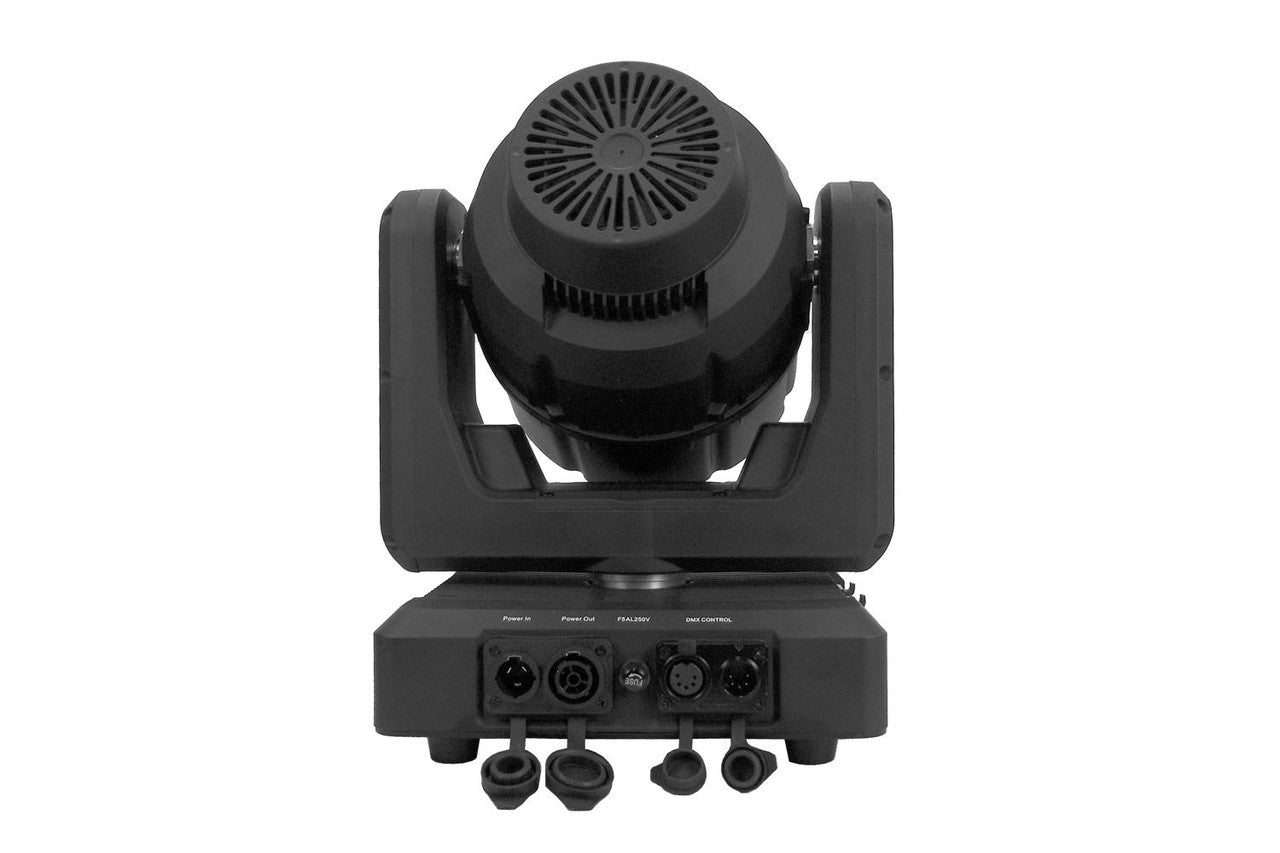

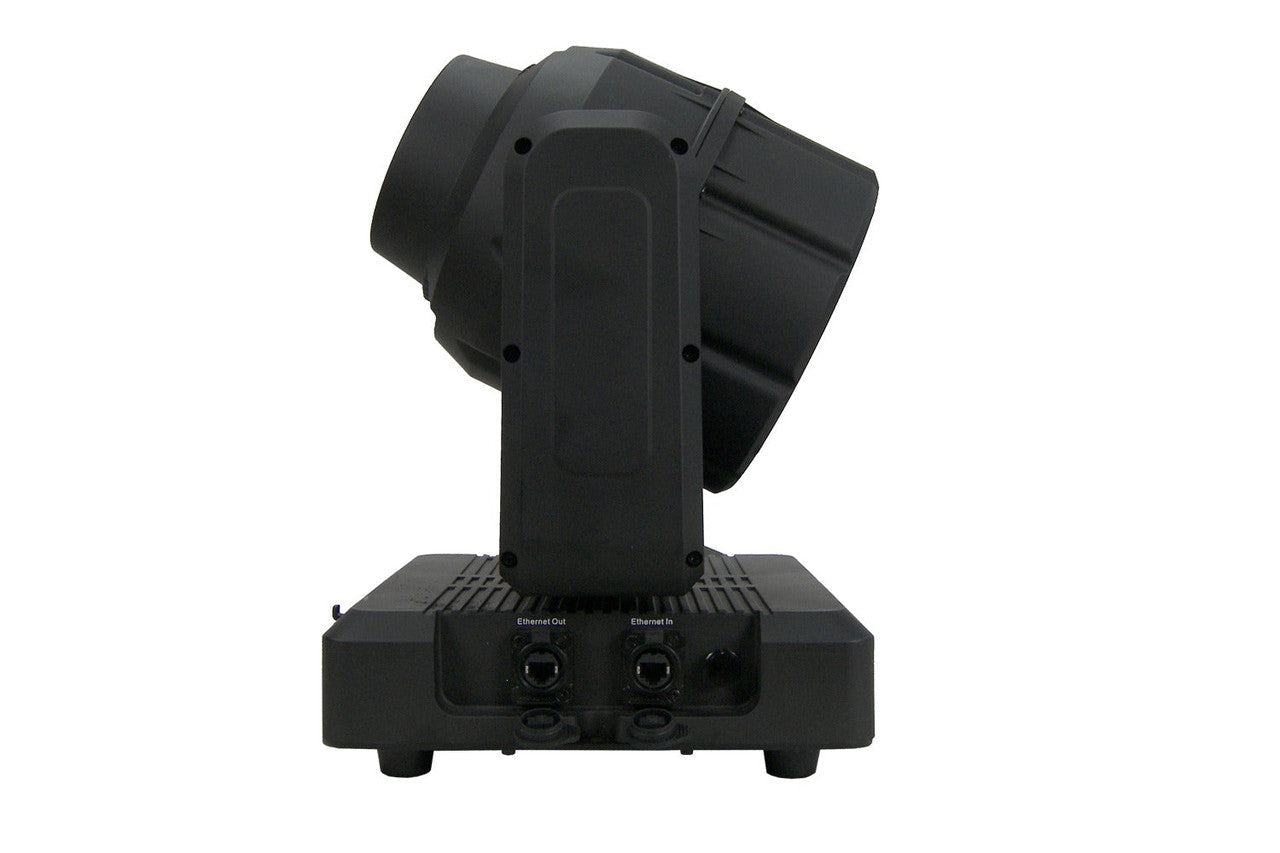

• 5-pin DMX in/out and RJ45 in/out
• Operation modes: DMX, auto, sound active, master/slave
• IP65 True1 power in/out

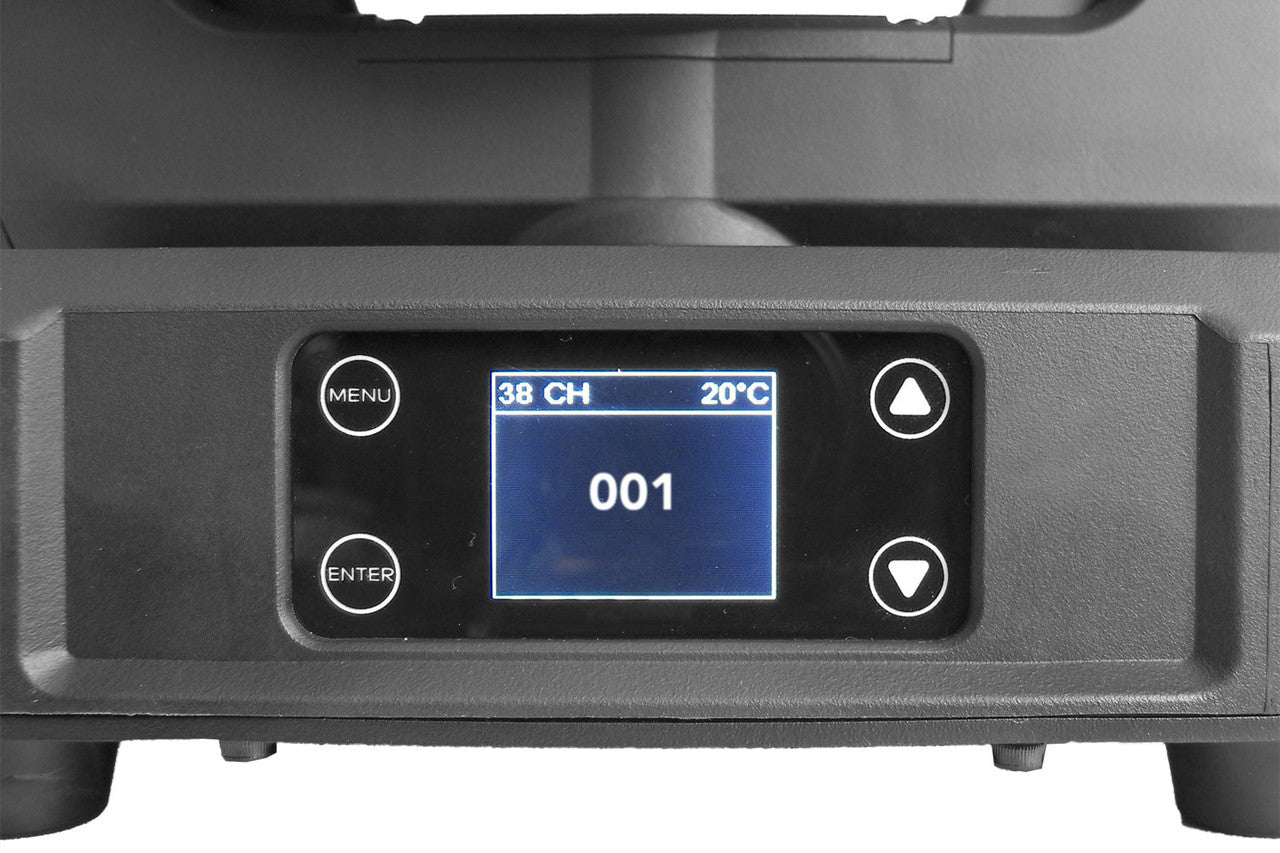

• LCD control panel for intuitive setup
• Compact and portable design at 7 kg (15.4 lbs)

General Features:

• Light Sources: 1 x 120W RGBL; 48 x 1W RGBWW
• Beam Angle: 3.8°-38° (motorized zoom)
• Output: 93,750 lux @ 2m (3.8°)
• Lens: 140mm Fresnel
• Dimming: 0-100%, 16-bit
• Pan/Tilt: 540° / 230°
• Control Protocols: DMX, ArtNet, sACN
• DMX Channels: 18 / 20 / 23 / 41 / 225
• Power Consumption: 180W max
• Input Voltage: 100-240V AC, 50/60 Hz
• Power Connection: IP65 True1 in/out
• IP Rating: IP65
• Dimensions: 282 x 250 x 365 mm (11.1" x 9.8" x 14.4")
• Net Weight: 7 kg (15.4 lbs)

In The Box

• Event Lighting DELUGEM120WFX IP65 Moving Head Zoom Wash
• IP65 True1 power in/out connection
• User documentation
