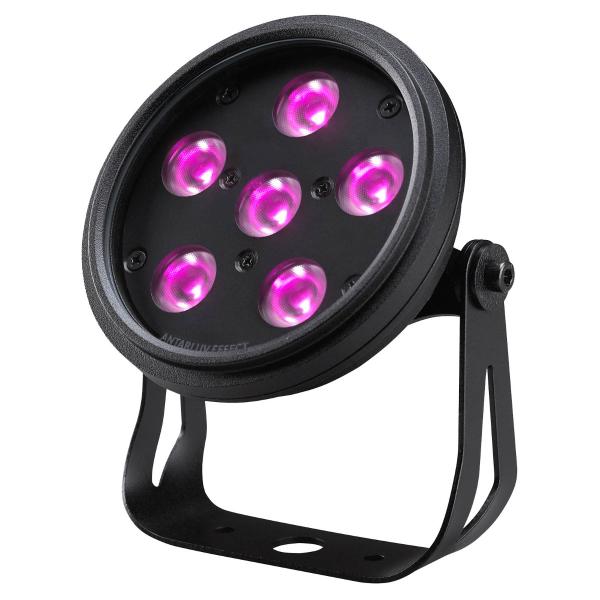

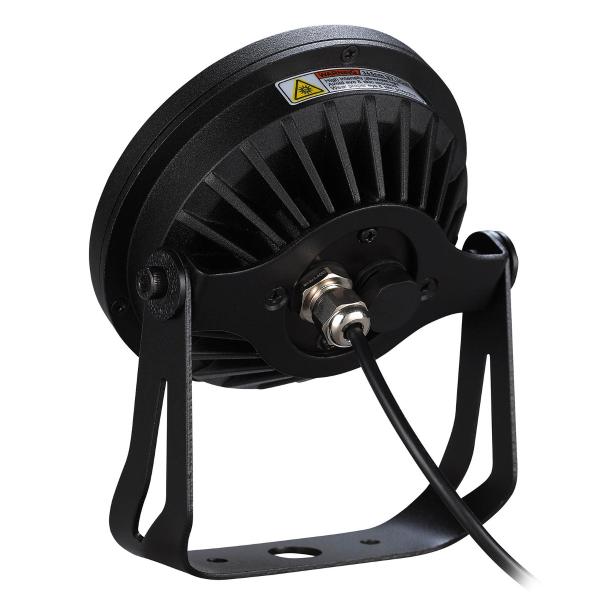

Antari DFX-IPS510 DarkFX Spot 150 IP 14W UV LED Spot

The prodigious DarkFX Series has adopted the latest LED technology with a peak wavelength of 365nm. Because, 365nm is in the middle of UV-A wavelength the emitted light evenly covers the whole spectrum producing a traditional black light effect without the visible light associated with most LED based blacklights. All UV reactive material reflects perfectly with stunning bright and vivid colors.

Traditional blacklight fixtures emit long-wave ultraviolet (UV) light without much visible light. The UV spectrum ranges from 100 to 400 nanometers (nm). emitting light that is generally invisible to the human eye; however, the higher the "nm" rating the more visible light. Traditionally the entertainment industry has used the UV-A spectrum (315-400nm), which is not harmful to humans, widely adopted in light fixtures, counterfeit detection, medical use and industrial curing.

General Features:

• High efficiency UV LED.
• Peak wavelength at 365nm.
• Minimum visible light.
• High output 4500mW at full intensity.
• Special optics will not degrade by high UV exposure.
• Flicker free.
• Weather proof IP-65.

Specifications:

• Input Voltage: DC 20-24V

• Rated Power: 14W

• LED: 6 x 1.9W High Power UV LED

• Optics: 15 degrees

• Radiant flux output: 4500 mW

• Project lamp life: 20,000 hrs L70 at 25C

• Peak wavelength: 365nm

• Cable connection: 22 AWG wire cable

• Housing: Aluminum Die Casting

• Protection rating: IP-65

• Dimensions: W 110.5 x D 46.8 x H 134.25 mm

• Dry weight: 0.71 kg
