Antari PAR12H High-Output RGBWA+UV Indoor Pro PAR with True1 Power

The Event Lighting PAR12H is a powerful indoor LED Pro PAR can engineered for stage lighting, houses of worship, theaters, and production environments that demand higher output and precise dimming control. Featuring 12 x 12W RGBWA+UV LEDs, this fixture delivers an impressive 3,150 lux at 2 meters with rich color mixing and smooth fades. Equipped with True1 power in/out, 5-pin DMX connectivity, optional WDMX capability, and 5 x 16-bit dimming curves, the PAR12H is built for professional touring and installed systems.

High-Output RGBWA+UV Performance with Custom Beam Options

The PAR12H combines red, green, blue, white, amber, and UV LEDs to create vibrant saturates, warm whites, and subtle pastel tones. Interchangeable beam angle options allow lighting designers to dial in the perfect coverage for stage wash, truss lighting, or architectural applications.

• 12 x 12W RGBWA+UV LEDs for powerful color output
• 3,150 lux @ 2m (full on)
• Standard 30° beam angle
• Optional beam angles: 40°, 25°, 15°
• 2,940Hz PWM for flicker-resistant camera use
• 50,000-hour LED lifespan for long-term reliability

Advanced 16-Bit Dimming and Flexible Control Modes

Designed for professional lighting systems, the PAR12H offers smooth 16-bit dimming curves and extensive DMX channel modes for seamless integration into complex rigs.

• 5 x 16-bit dimming curves for ultra-smooth fades
• Adjustable strobe (1-30Hz)
• DMX512 protocol
• DMX channel modes: 1 / 2 / 3 / 4W / 4A / 6 / 8 / 12 / 14
• Operational modes: DMX, optional WDMX, auto run, sound active, master/slave, manual color, static color

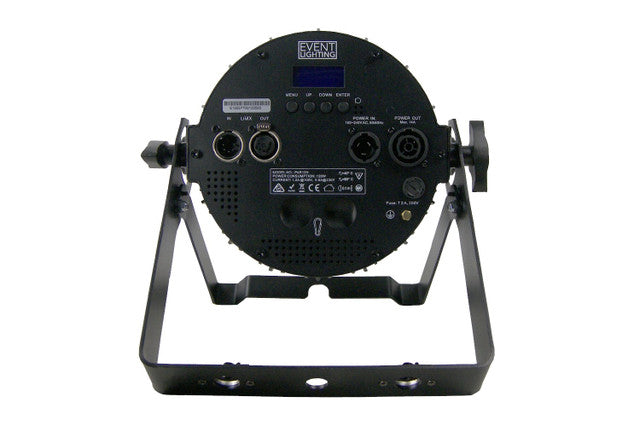

• 5-pin XLR in/out
• 4-button LCD control panel

Tour-Ready Construction with Silent Operation

Built with a rugged die-cast aluminium housing in a matte black finish, the PAR12H is designed for durability in both installed and mobile production environments. Its fanless cooling system ensures silent operation, making it ideal for churches, theaters, and corporate events.

• True1 power in/out for secure linking
• Die-cast aluminium construction
• Fanless cooling for noise-sensitive environments
• Omega bracket with 1/4 turn quick locks included
• Compact dimensions: 263 x 293 x 98mm (10.4" x 11.5" x 3.9")
• Net weight: 3.2 kg (7.1 lbs)

General Features:

• Light Source: 12 x 12W RGBWA+UV LEDs
• Beam Angle: 30° (40°, 25°, 15° optional)
• Output: 3,150 lux @ 2m
• PWM: 2,940Hz
• Dimming: 5 x 16-bit curves
• Strobe: 1-30Hz
• Control Protocol: DMX512
• DMX Interface: 5-pin XLR in/out
• Power Input: 100-240V AC, 50/60Hz
• Power Consumption: 120W
• Power Connection: True1 in/out
• Cooling: Fanless

In The Box

• Event Lighting PAR12H Indo
