Antari SPLIT124 Event Lighting - 1 In and 4 Out and 1 Through - Optical DMX Splitter, Both 5 and 3 PIN XLR on All I/O, Rack Mountable

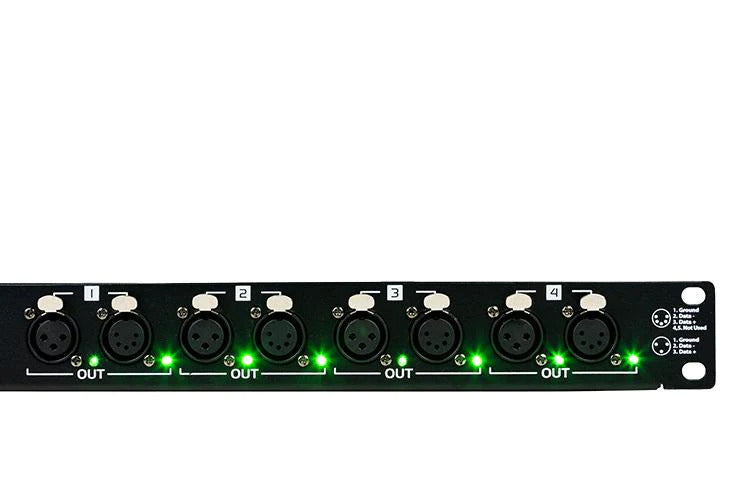

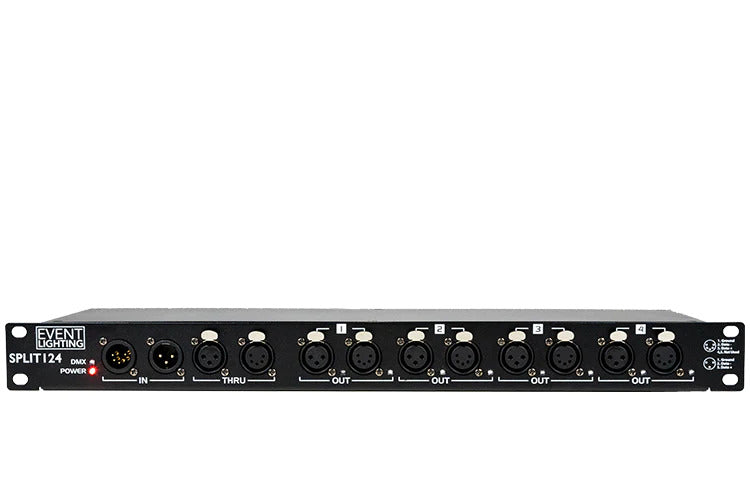

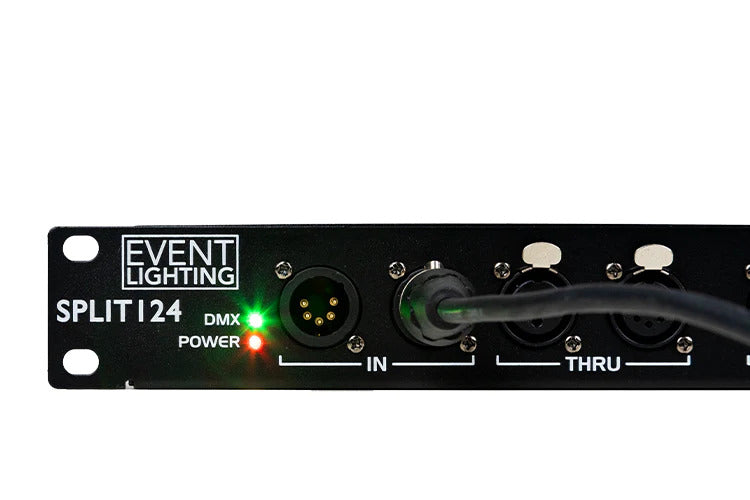

The SPLIT124 is a rack or truss mountable DMX splitter designed to re transmit and distribute a DMX signal into 4 outputs and one throughput. Both 3 and 5 pin XLR connectors are included for maximum flexibility when connecting DMX controlled devices. The optically isolated circuitry protects your controller from electrical surges while maintaining the integrity of the signal.

General Features:

• DMX512 Protocol
• 4x Optically Isolated Outputs
• Power: 100-240V AC, 50/60Hz
• Power Consumption: 5W

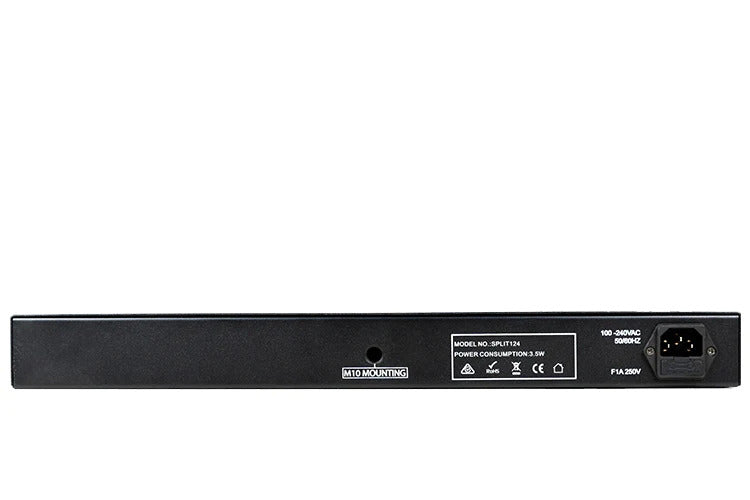

• Power Connections: IEC input
• Connections: 1 input, 4 outputs, 1 through, 3 and 5 pin XLR
• Dimensions: 483 x 131 x 45mm (1U)
• Weight: 2.6kg
