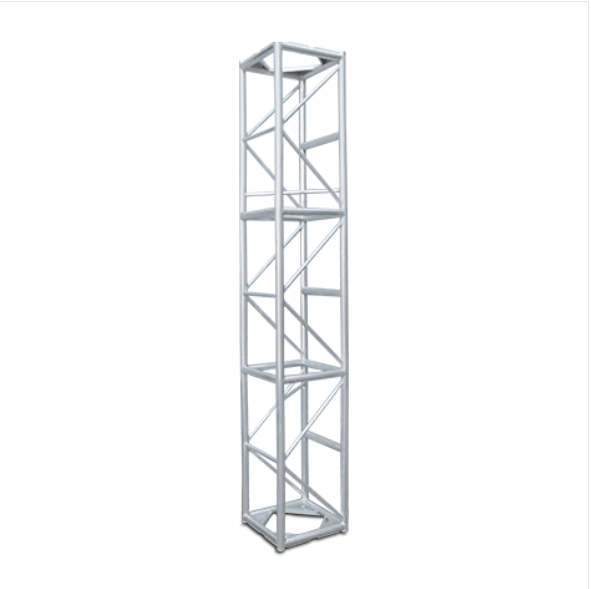

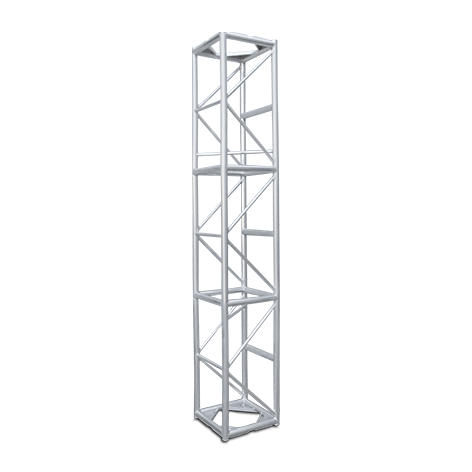

Galaxy Stage GS-2010 10' Long 20.5" Box Truss with Bolts - Professional 6061-T6 Aluminum GS20 Series Truss

Key Features:

• Professional GS20 Series box truss

• 10-foot heavy-duty truss section

• Constructed from 6061-T6 aluminum alloy

• Engineered in the United States

• Manufactured by TUV-certified welders

• Industry-standard bolt connection system

• Compatible with other bolt truss brands using the same bolt pattern

• Includes Grade-8 bolt connection hardware

• Lightweight, durable, and corrosion-resistant

• Suitable for indoor and outdoor applications

The Galaxy Stage GS-2010 is a professional-grade 10-foot box truss section from the Galaxy Stage GS20 Series. Engineered in the United States and manufactured from high-strength 6061-T6 aluminum by TUV-certified welders, this heavy-duty truss is designed for demanding staging, lighting, rigging, and event production applications.

Featuring a 20.5" x 20.5" square profile with 2" main chords and 1" diagonal bracing, the GS-2010 delivers exceptional structural strength while remaining lightweight for easy transportation and installation. The industry-standard bolt connection system allows seamless compatibility with other truss brands using the same bolt pattern and 5/8" Grade-8 steel hardware.

Ideal for concert productions, stage roofs, lighting grids, LED wall structures, exhibition displays, houses of worship, and professional event installations.

General Features:

• 10' Professional GS20 Box Truss Section

• 20.5" x 20.5" Square Truss Profile

• 6061-T6 Aircraft-Grade Aluminum Construction

• Heavy-Duty 2" Main Chords

• Reinforced 1" Diagonal Bracing

• Industry-Standard Bolt Connection Design

• Compatible with Similar Bolt Truss Systems

• Manufactured by TUV-Certified Welders

• Includes Grade-8 Hardware

• Designed for Professional Stage, Lighting & Rigging Applications

Specifications:

• Model: GS-2010

• Series: GS20

• Type: Box Truss Section

• Length: 10 ft (120")

• Width: 20.5" (520mm)

• Height: 20.5" (520mm)

• Main Tube Diameter: 2" (50mm)

• Diagonal Bracing Diameter: 1" (25mm)

• Wall Thickness: 1/8" (3mm)

• Material: 6061-T6 Alloy Aluminum

• Connection Type: Bolt Truss

• Hardware Included: Grade-8 Bolt Set

• Manufacturing: TUV Certified Welders

Product Dimensions:

• Length: 120"

• Width: 20.5"

• Height: 20.5"

Weight (Approximate):

• Product Weight: 95 lbs (43.1 kg)

• Shipping Weight: 105 lbs (47.6 kg)

What's Included:

• (1) Galaxy Stage GS-2010 10' Long 20.5" Box Truss

• Complete Grade-8 Bolt Connection Set

Applications:
Perfect for stage roof systems, concert productions, lighting grids, LED wall support structures, exhibition displays, theaters, houses of worship, trade shows, touring productions, and professional event installations.

Package Dimensions (Approximate):

• 121" x 22" x 22"

• Shipping Weight: 105 lbs (Approx.)
