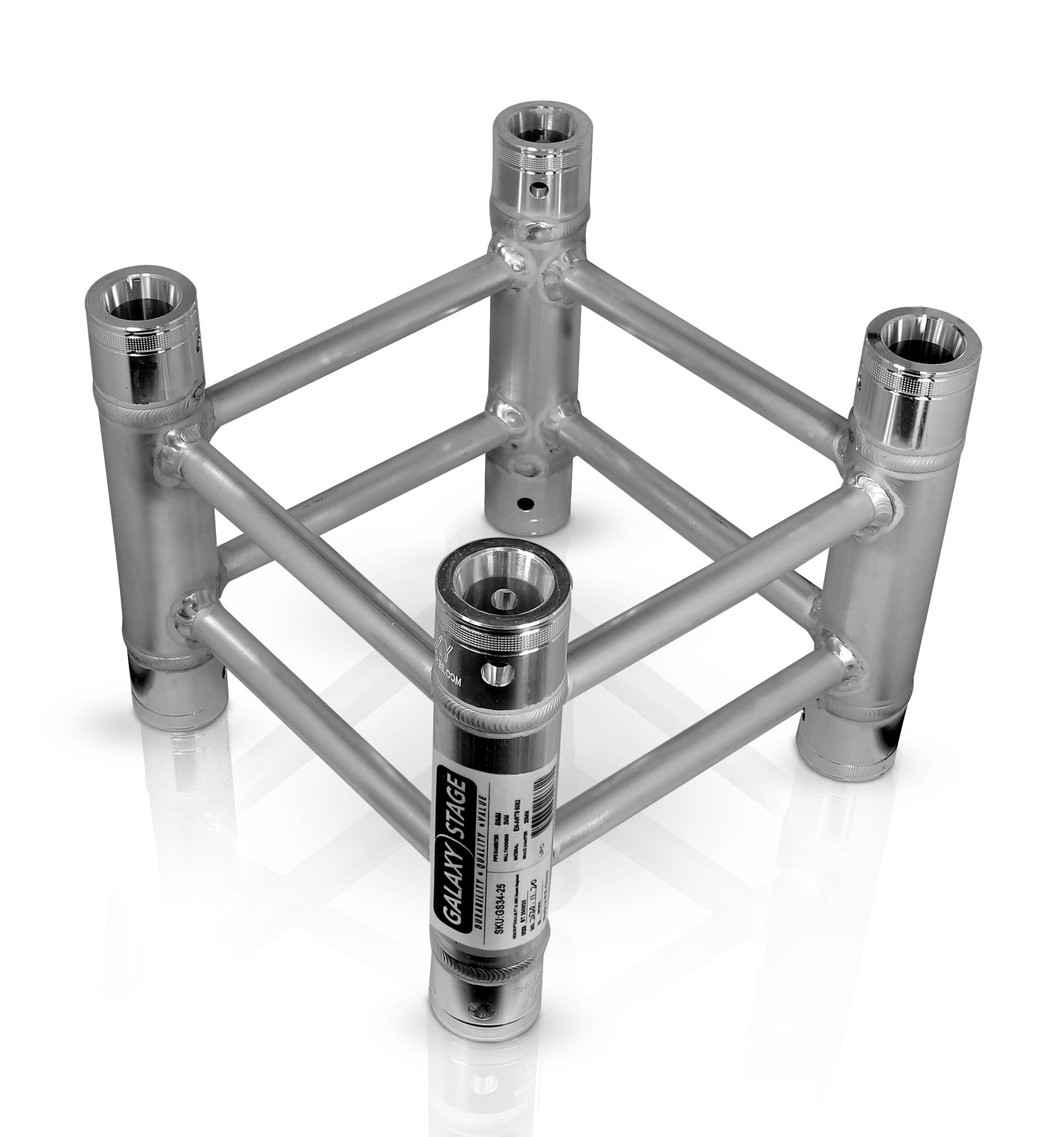

Galaxy Stage GS34-025 0.82 ft (0.25m) Square Truss Segment

Galaxy Stage GS34-025 0.82 ft (0.25m) Square Truss Segment - Professional 6082-T6 Aluminum Conical Truss

Key Features:

• Professional GS34 Series square truss segment

• Compact 0.82 ft (0.25m) length

• Lightweight 6082-T6 alloy aluminum construction

• Industry-standard conical connection system

• Compatible with other truss brands using the same connection system

• Manufactured by TUV-certified welders

• Includes coupler, pin, and safety clip set

• Corrosion-resistant finish

• High-strength yet lightweight design

• Suitable for indoor and outdoor applications

The Galaxy Stage GS34-025 is a professional-grade 0.82-foot (0.25m) square truss segment from the Galaxy Stage GS34 Series. Engineered for professional staging, lighting, exhibition, and event production, this compact truss section is manufactured from lightweight, high-strength 6082-T6 alloy aluminum by TUV-certified welders to ensure outstanding durability and structural performance.

Featuring an 11.42" x 11.42" square profile with 2" main chords and 0.75" diagonal bracing, the GS34-025 is designed for modular truss systems requiring precise spacing and compact configurations. The industry-standard conical connection system provides fast, secure assembly and seamless compatibility with other professional truss brands using the same connection standard.

Ideal for concerts, trade shows, exhibition displays, theaters, houses of worship, retail displays, and professional event productions.

General Features:

• 0.82 ft (0.25m) Professional Square Truss Segment

• 11.42" x 11.42" Square Truss Profile

• High-Strength 6082-T6 Alloy Aluminum Construction

• Heavy-Duty 2" Main Chords

• Reinforced 0.75" Diagonal Bracing

• Industry-Standard Conical Connection System

• Includes Coupler, Pin & Safety Clip Set

• Lightweight and Corrosion Resistant

• Compatible with Galaxy Stage GS34 Truss Systems

• Designed for Professional Stage, Lighting & Rigging Applications

Specifications:

• Model: GS34-025

• Series: GS34

• Type: Square Truss Segment

• Length: 0.82 ft (0.25m)

• Width: 11.42" (290mm)

• Height: 11.42" (290mm)

• Main Tube Diameter: 2" (50mm)

• Diagonal Bracing Diameter: 0.75" (20mm)

• Wall Thickness: 0.08" (2mm)

• Material: 6082-T6 Alloy Aluminum

• Connection Type: Conical

• Hardware Included: Coupler, Pin & Safety Clip Set

• Manufacturing: TUV Certified Welders

Product Dimensions:

• Length: 9.84" (250mm)

• Width: 11.42" (290mm)

• Height: 11.42" (290mm)

Weight (Approximate):

• Product Weight: 5 lbs (2.3 kg)

• Shipping Weight: 6 lbs (2.7 kg)

What's Included:

• (1) Galaxy Stage GS34-025 Square Truss Segment

• (4) Conical Couplers

• (4) Connection Pins

• (4) Safety Clips

Applications:
Perfect for lighting grids, stage structures, exhibition booths, DJ truss systems, retail displays, concert productions, theaters, trade shows, and professional event installations requiring compact truss sections.
