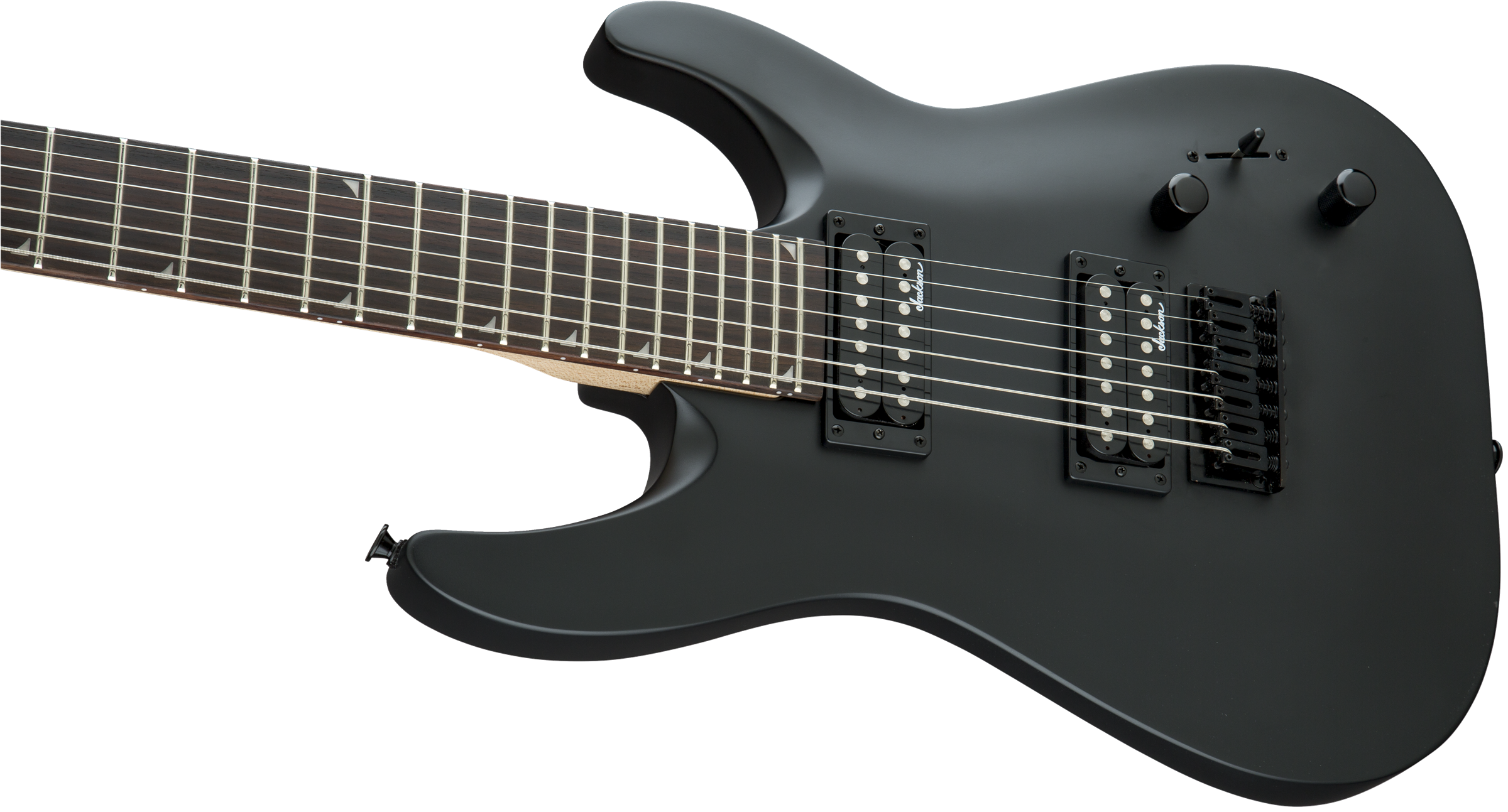

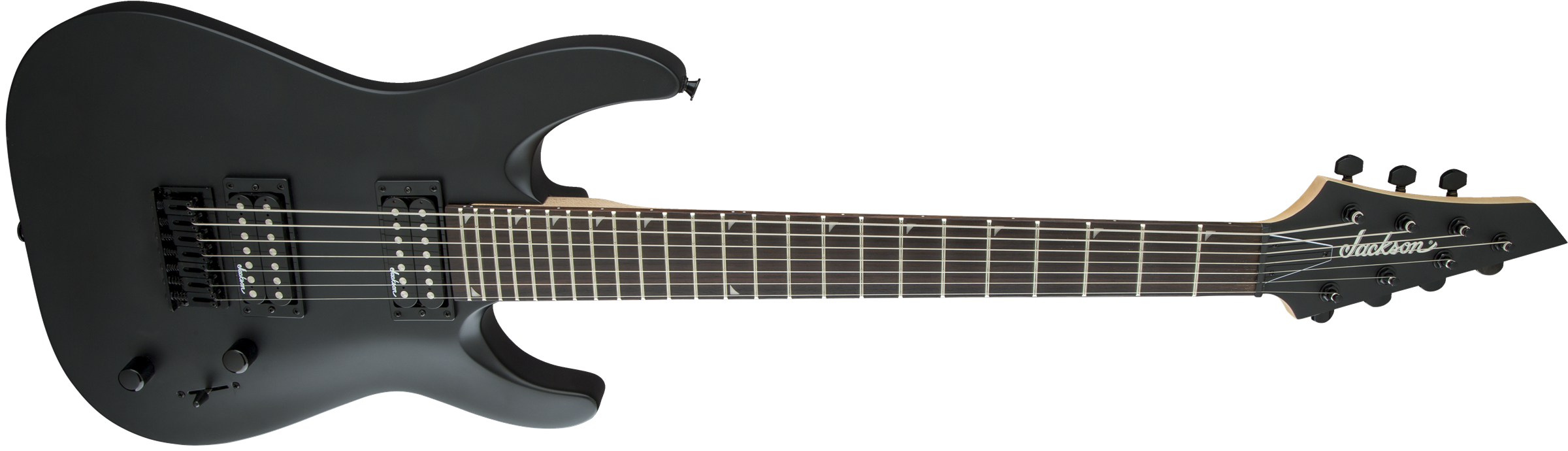

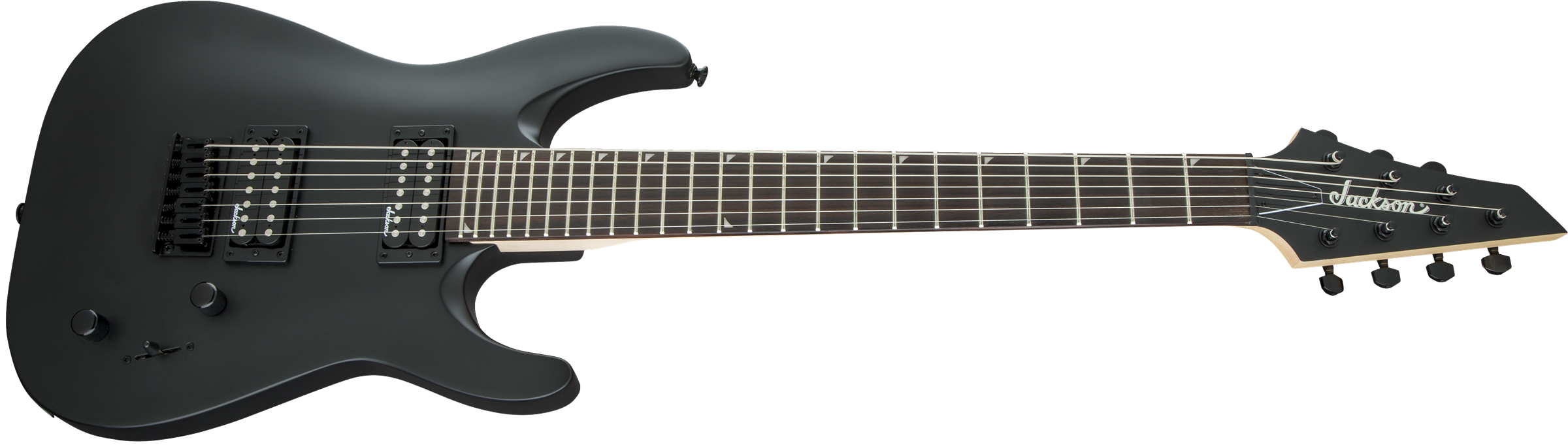

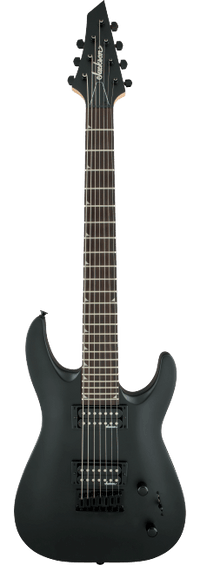

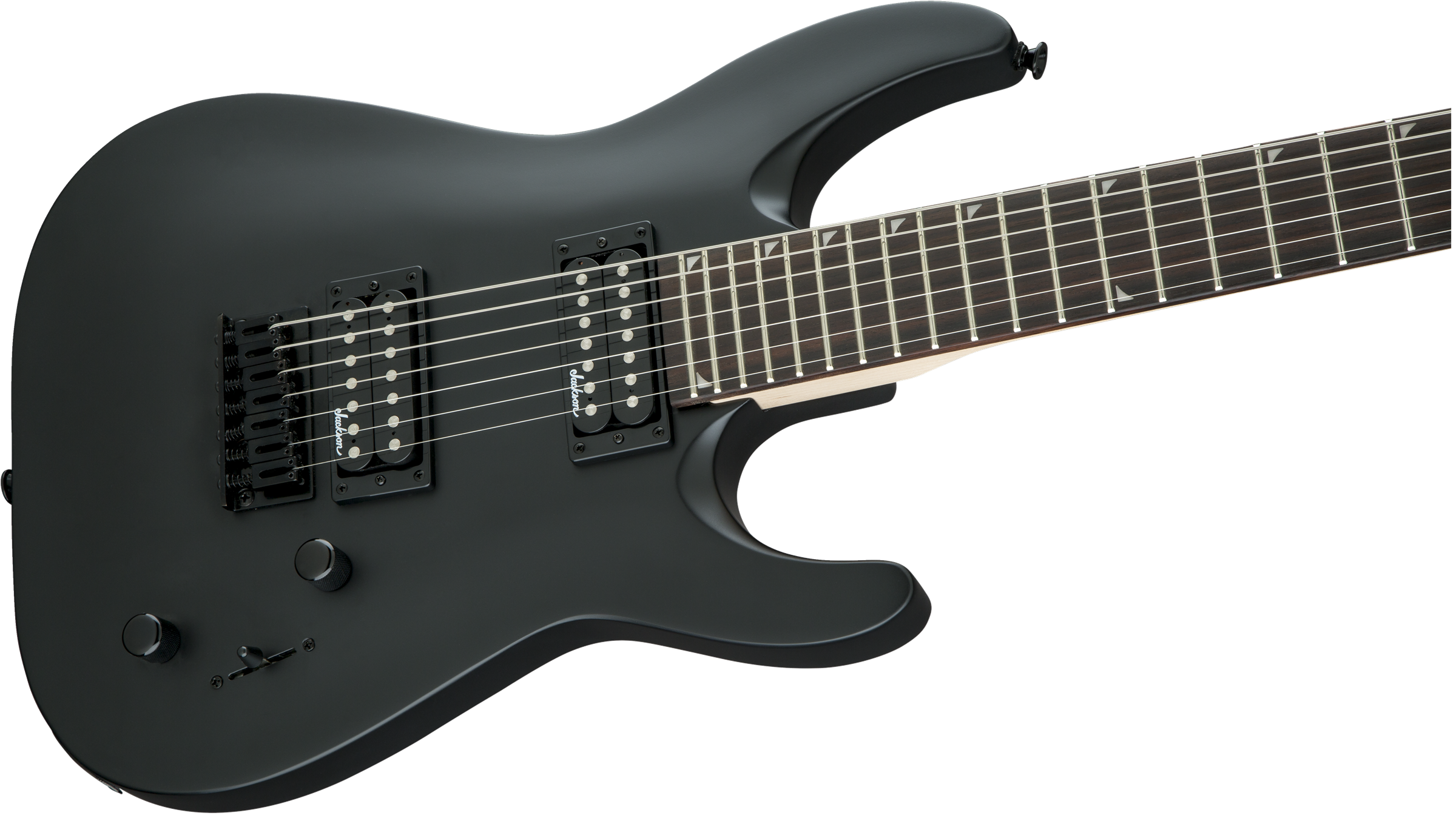

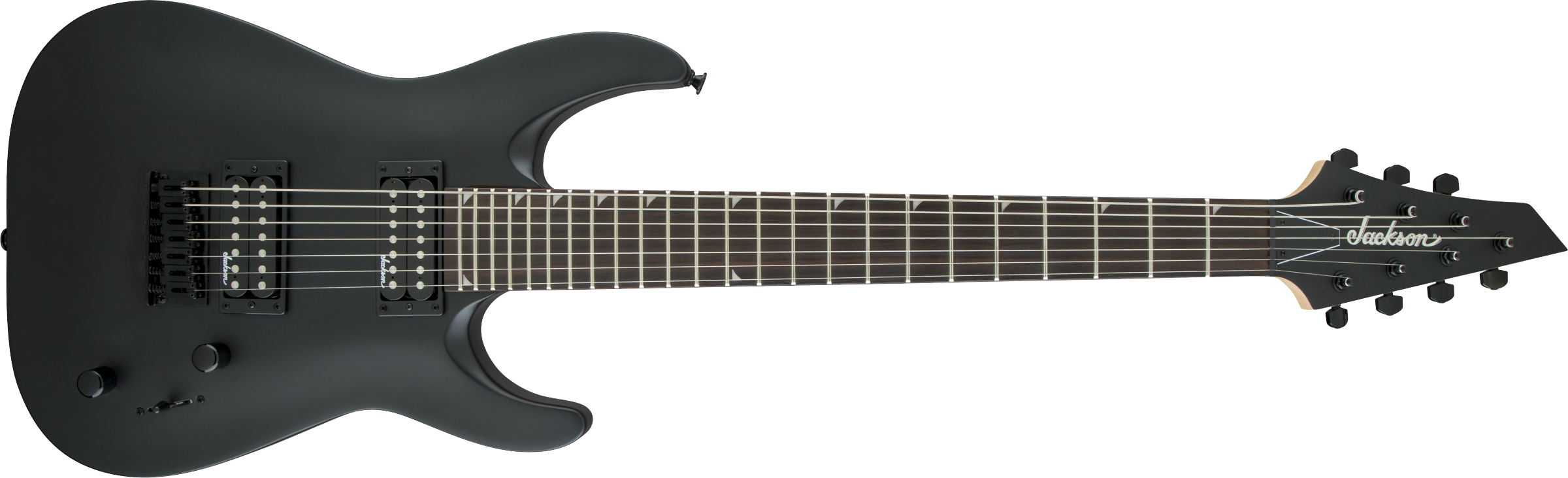

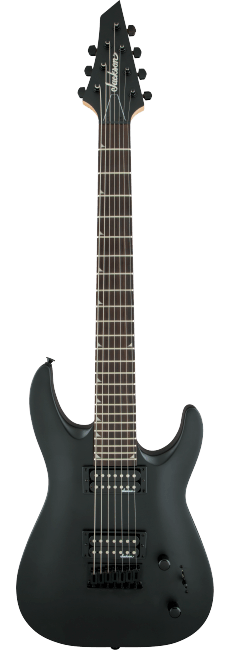

Seven-string fans looking for a guitar that is as sleek and deadly as it is affordable will find everything they need with the JS Series Dinky® Arch Top JS22-7 DKA HT.

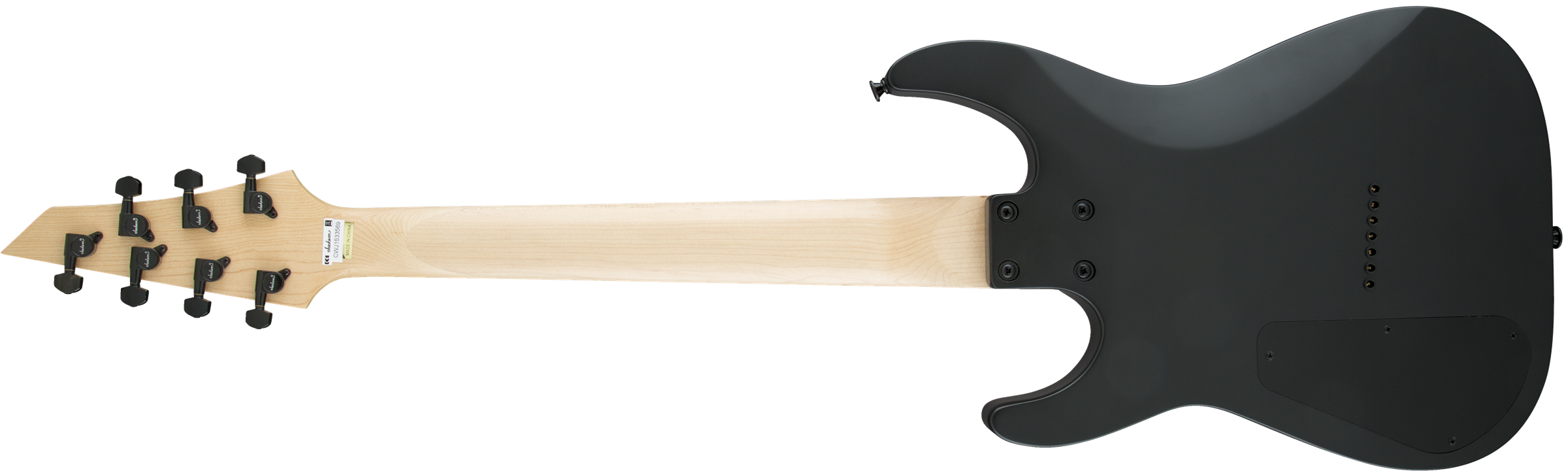

This beastly axe features a 26.5" scale length for better low-end articulation, a lightweight and resonant poplar body with an arched top and a bolt-on maple neck with graphite reinforcement and scarf joint for rock-solid stability. Hosting 24 jumbo frets and piranha tooth inlays, the 12"-16" compound radius amaranth fingerboard creates the ideal playing surface for fat riffs and easy chording near the black plastic nut while gradually flattening in the upper registers for lightning-quick solos and wide bends without fear of fretting out.

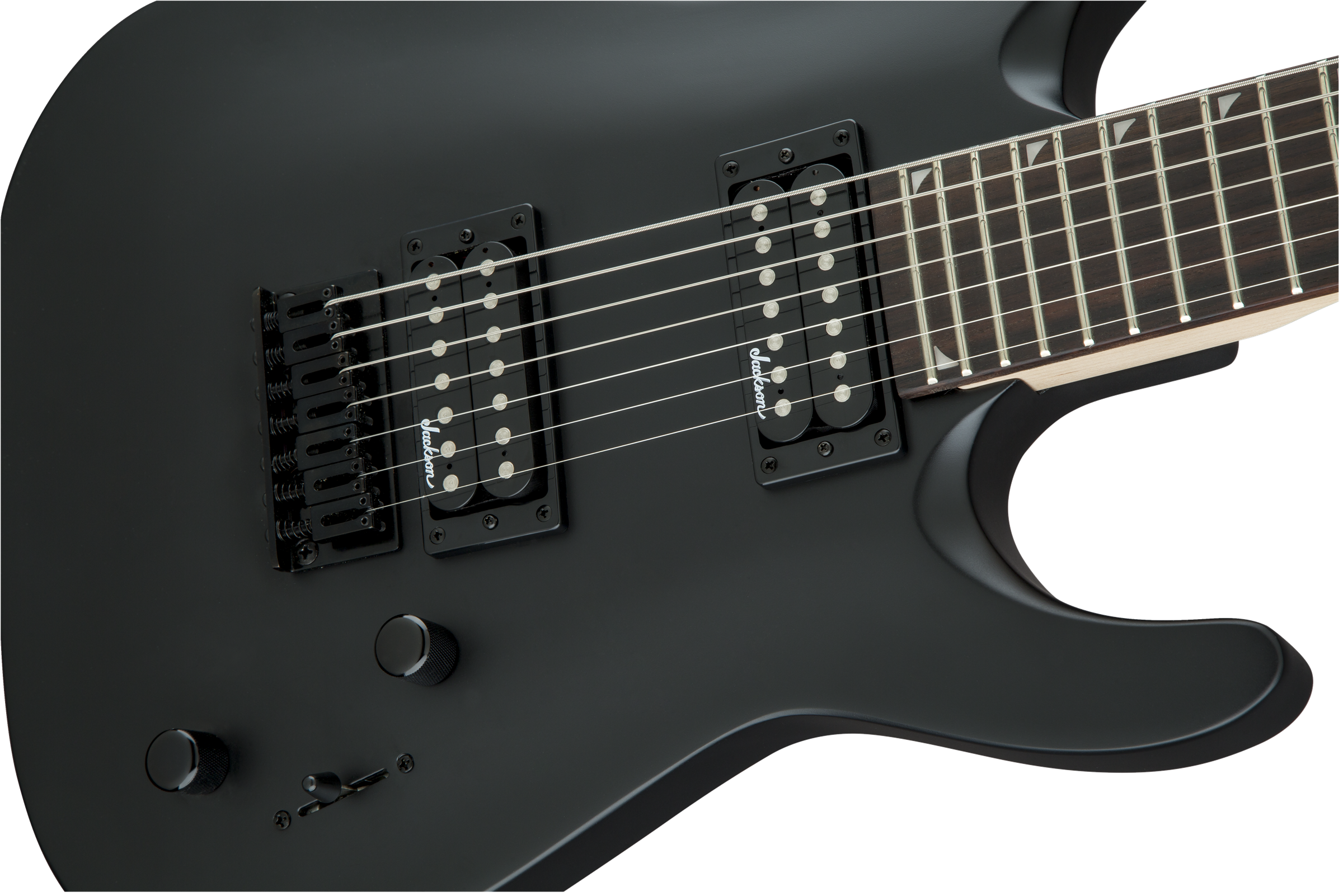

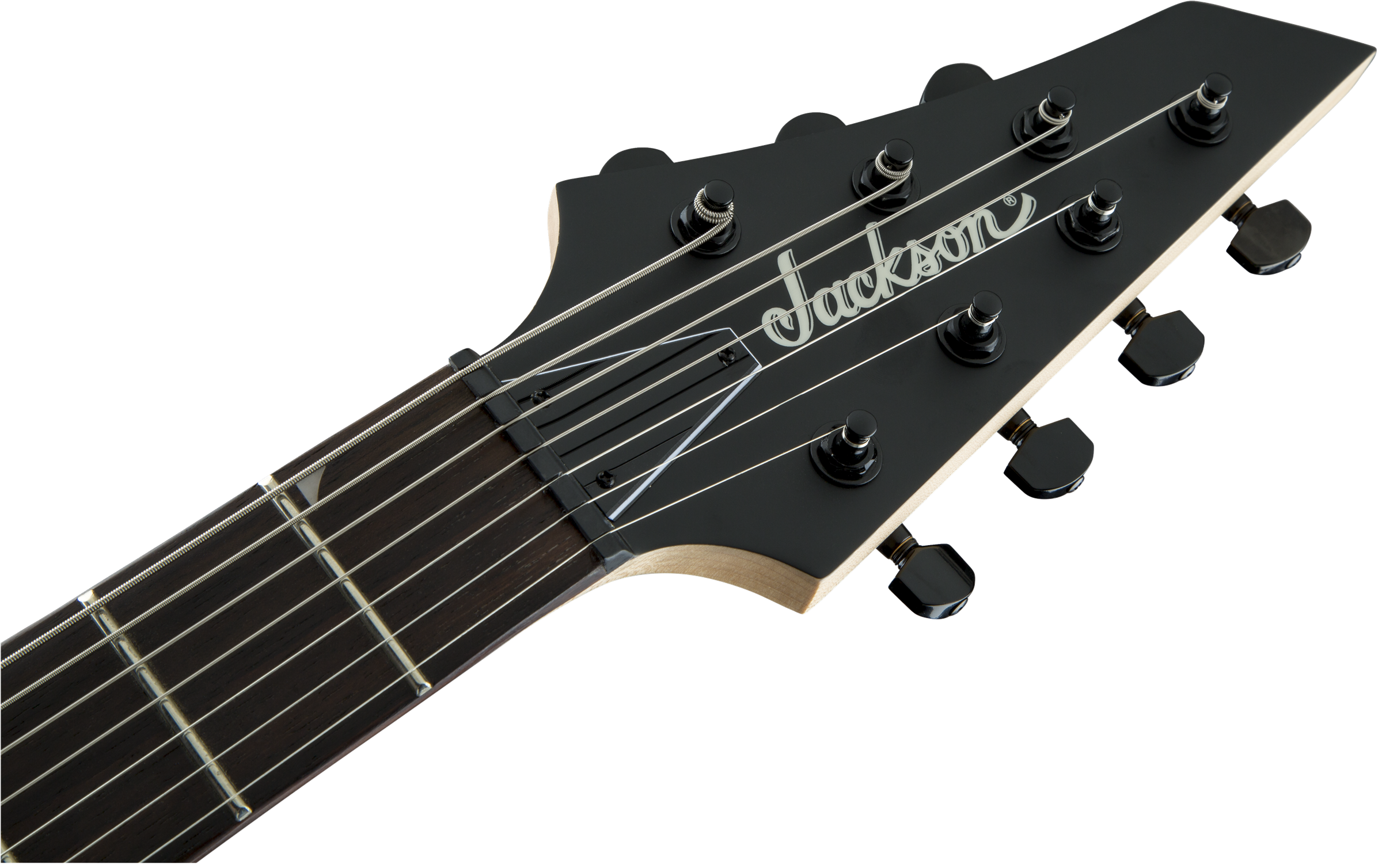

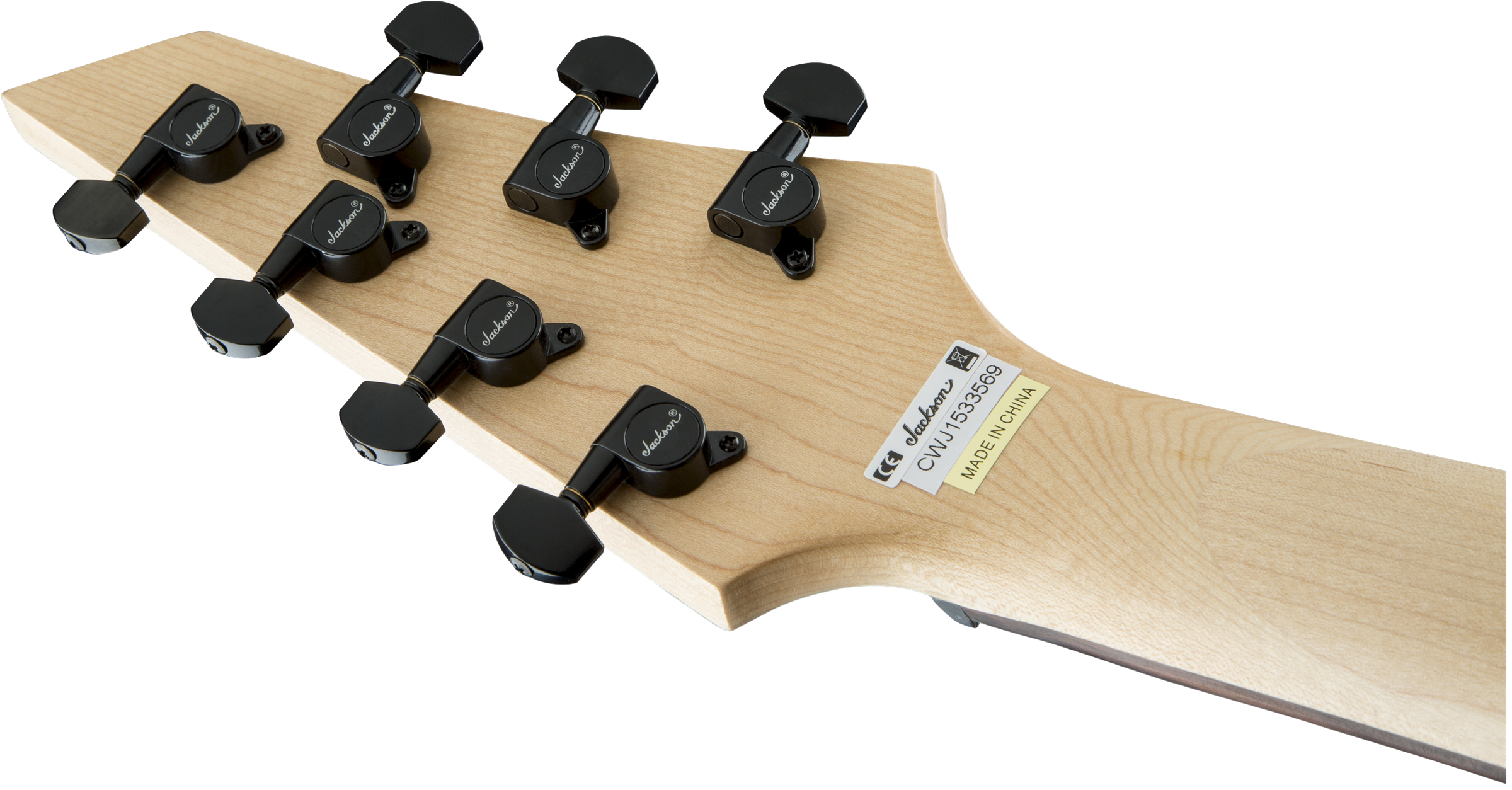

Powered by direct mount dual Jackson high-output humbucking pickups, the JS22-7 DKA HT is also equipped with a three-way blade switch, single volume and tone controls, compensated string-through-body fixed Jackson HT7 bridge, sealed die-cast tuners and our 3x4 (3 over, 4 under) AT-1 headstock.

The JS22-7 DKA HT is finished in a brooding Satin Black finish with all-black hardware.

General

Series

JS

Orientation

Right-Hand

Color

Satin Black

Country Of Origin

CN

Neck

Headstock

Jackson® AT-1 3x4 (3 Over/4 Under)

Neck Material

Maple

Neck Finish

Satin

Neck Construction

Bolt-On with Graphite Reinforcement and Scarf Joint

Fingerboard Radius

12"-16" Compound Radius (304.8 mm to 406.4 mm)

Fingerboard Material

Amaranth

Position Inlays

Pearloid Piranha Tooth (Small Sharkfin)

Number of Frets

24

Truss Rod

Dual-Action

Truss Rod Nut

Truss Rod Adjustment at Nut

String Nut

Black Plastic

Nut Width

1.875" (47.6 mm)

Nut Material

Black Plastic

Fret Size

Jumbo

Scale Length

26.5" (673 mm)

Body

Body

Poplar

Body Finish

Satin

Body Shape

Dinky®

Body Material

Poplar

Hardware

Bridge

Jackson® HT7 String-Through-Body Hardtail

Pickguard

None

Pickup Covers

Black

Control Knobs

Dome-Style

Switch Tip

Black

Hardware Finish

Black

Tuning Machines

Jackson® Sealed Die-Cast

Strings

Nickel Plated Steel (.009-.052 Gauges, 7-String)

Neck Plate

Jackson®

Strap Buttons

Standard

Electronics

Bridge Pickup

Jackson® High-Output 7-String Humbucking

Neck Pickup

Jackson® High-Output 7-String Humbucking

Pickup Configuration

HH

Controls

Volume, Tone

Switching

3-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

Measurements

Shipping Dimensions

5.25x24.00x47.75 IN

Shipping Weight

12.15 LB

Shipping Length

47.75 IN

Shipping Height

5.25 IN

Shipping Width

24.00 IN

Accessories

Truss Rod Wrench

Yes

Miscellaneous

Disclaimer

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Commodity Code

9207.90.0040

12" - 16" Compound Radius

Jackson pioneered the use of the innovative 12"-16" compound radius design, in which the fingerboard gradually flattens toward the heel from its more rounded profile at the nut. This makes for comfortable and natural-feeling chording and riffing near the nut, with optimal shred articulation and bending nearer the heel.

Dual Jackson High-Output 7-String Humbucking Pickups

These Jackson 7-string high-output humbucking pickups are painstakingly voiced for full, rich tone while providing maximum overdrive and sustain without muddiness.
