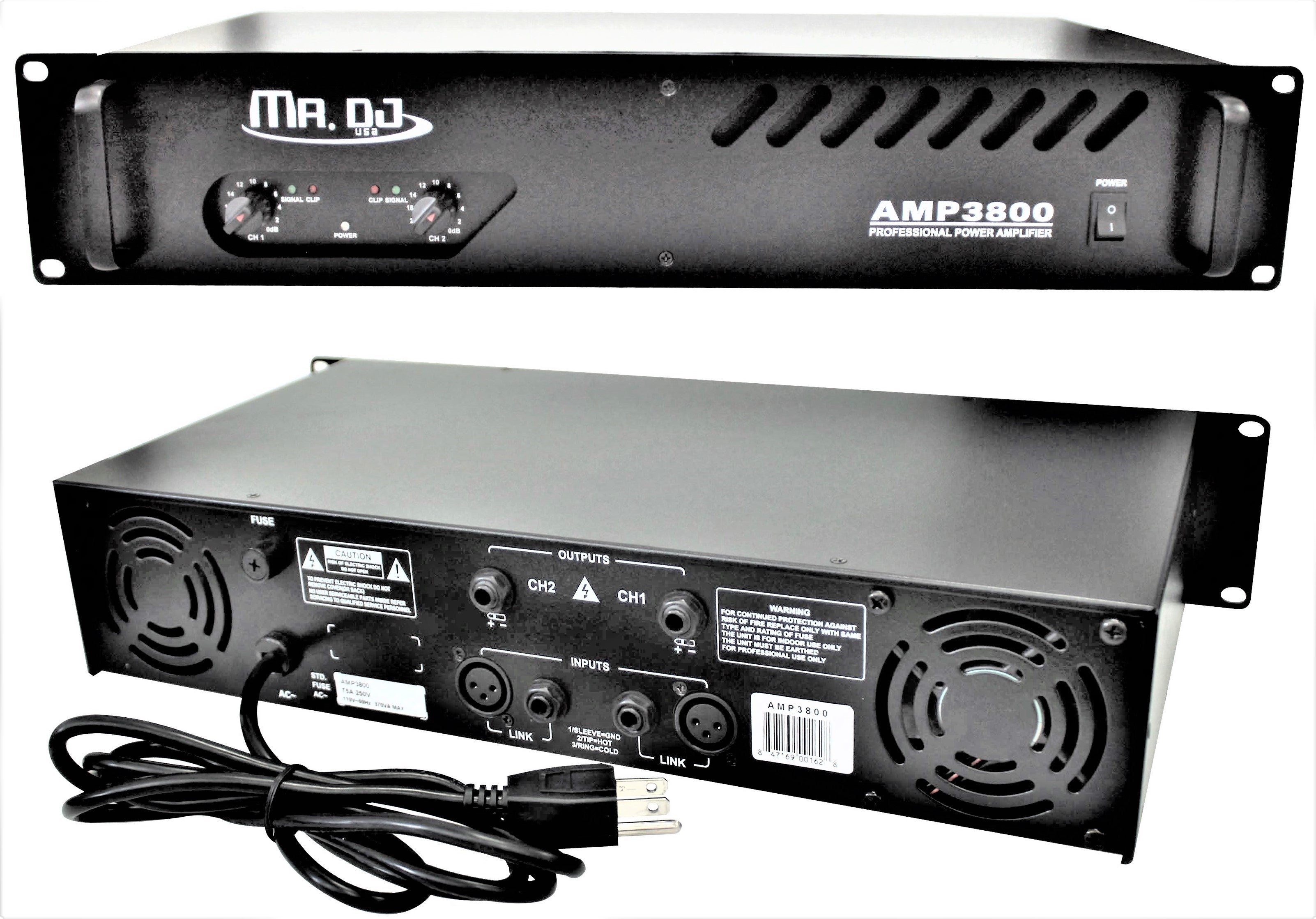

MR DJ AMP3800 Dynamic Series 2-Channel Bridgeable PA Power Amplifier - 3800W PMPO, 350W RMS Total

The MR DJ AMP3800 is a professional 2-channel Dynamic Series pa power amplifier designed for DJs, musicians, entertainers, houses of worship, clubs, bars, live sound systems, and other professional audio applications.

The AMP3800 delivers a manufacturer-stated 175 watts RMS per channel at 4 ohms and 100 watts RMS per channel at 8 ohms. It features balanced XLR and 1/4" TRS combo inputs, professional twist-lock speaker outputs, built-in subwoofer/satellite crossover functionality, fan cooling, aluminum heatsinks, signal and limit indicators, and a rugged rackmount chassis.

Key Features

🔊 3800W PMPO POWER RATING - Manufacturer-stated 3,800-watt PMPO rating for compatible PA, DJ, live sound, and sound reinforcement applications.

⚡ 175W RMS × 2 AT 4 OHMS - Delivers a manufacturer-stated 175 watts RMS per channel at 4 ohms for compatible speakers and audio systems.

🎚️ BUILT-IN SUBWOOFER / SATELLITE CROSSOVER - Integrated crossover functionality provides additional flexibility when configuring compatible full-range speakers and subwoofer systems.

🔄 BRIDGEABLE 2-CHANNEL DESIGN - Two-channel amplifier configuration is designed to support compatible stereo and bridged system applications when properly configured.

🔌 PROFESSIONAL AUDIO CONNECTIONS - Features balanced XLR connections and XLR / 1/4" TRS combo inputs for integration with compatible mixers, processors, and other audio equipment.

🔊 PROFESSIONAL TWIST-LOCK OUTPUTS - Twist-lock speaker connectors provide secure connections to compatible professional speaker systems.

🎛️ INPUT GAIN CONTROLS - Front-panel gain attenuators provide convenient level adjustment for each amplifier channel.

📊 SIGNAL & LIMIT INDICATORS - Four-segment LED indicators provide visual monitoring of amplifier signal and operating status.

❄️ FAN-COOLED DESIGN - Flow-through air cooling and solid aluminum heatsinks help manage amplifier temperature during extended operation.

🛡️ OVERLOAD PROTECTION - Heavy-duty fuse protection helps protect the amplifier under specified operating conditions.

General Features

• Professional 2-channel Dynamic Series pa power amplifier

• Bridgeable amplifier design

• Manufacturer-stated 3,800 watts PMPO

• 175 watts RMS × 2 at 4 ohms

• 100 watts RMS × 2 at 8 ohms

• Built-in subwoofer/satellite crossover

• Switch-mode power supply

• Rackmount chassis

• Fan-cooled design

• Solid aluminum heatsinks

• Heavy-duty fuse overload protection

• Independent input gain controls

• Detented illuminated gain controls

• 4-segment signal and limit LED indicators

• Balanced XLR connections

• XLR / 1/4" TRS combo input connectors

• Professional twist-lock speaker outputs

• Flow-through cooling design

• Designed for professional PA and DJ applications

Specifications

Amplifier Performance

• Brand: MR DJ

• Model: AMP3800

• Product Type: Professional 2-Channel PA Power Amplifier

• Series: Dynamic Series

• Channels: 2

• Manufacturer-Stated PMPO Power: 3,800 Watts

• Rated Power at 8 Ohms: 100 Watts × 2

• Rated Power at 4 Ohms: 175 Watts × 2

• Maximum Power at 8 Ohms: 120 Watts × 2

• Maximum Power at 4 Ohms: 180 Watts × 2

• Total RMS Output at 4 Ohms: 350 Watts

Audio Performance

• Frequency Response: 20 Hz-20 kHz

• Frequency Response Variation: Less Than 0.5 dB

• Total Harmonic Distortion: Less Than 0.5%

• Signal-to-Noise Ratio: Greater Than 98 dB

• Channel Isolation: Greater Than 82 dB at 1 kHz

• Input Level: Greater Than 0 dB

• Input Impedance: Greater Than 10k Ohms

Inputs & Outputs

• Balanced XLR Connections

• XLR / 1/4" TRS Combo Inputs

• Professional Twist-Lock Speaker Outputs

• Input Gain Attenuators

Crossover

• Built-In Subwoofer / Satellite Crossover

• Designed for Compatible Subwoofer and Full-Range Speaker Configurations

Cooling & Protection

• Fan-Cooled Design

• Flow-Through Air Path

• Solid Aluminum Heatsinks

• Heavy-Duty Fuse Protection

• Signal LED Indicators

• Limit LED Indicators

Physical Specifications

• Chassis Type: Rackmount

• Product Dimensions: 20" × 20" × 7"

• Product Weight: 25 lb

• Shipping Weight: 30 lb

Ideal Applications

• Mobile DJs

• Professional DJ systems

• Musicians

• Live bands

• PA systems

• Karaoke systems

• Houses of worship

• Clubs

• Discos

• Bars and pubs

• Event production

• Live sound reinforcement

• Stage monitor systems

• Full-range speaker systems

• Compatible subwoofer systems

• Permanent sound installations

Package Includes

• (1) MR DJ AMP3800 Dynamic Series PA Power Amplifier

• Power Cord as supplied

• User Documentation as supplied

Warranty

• 1-Year Manufacturer's Warranty
