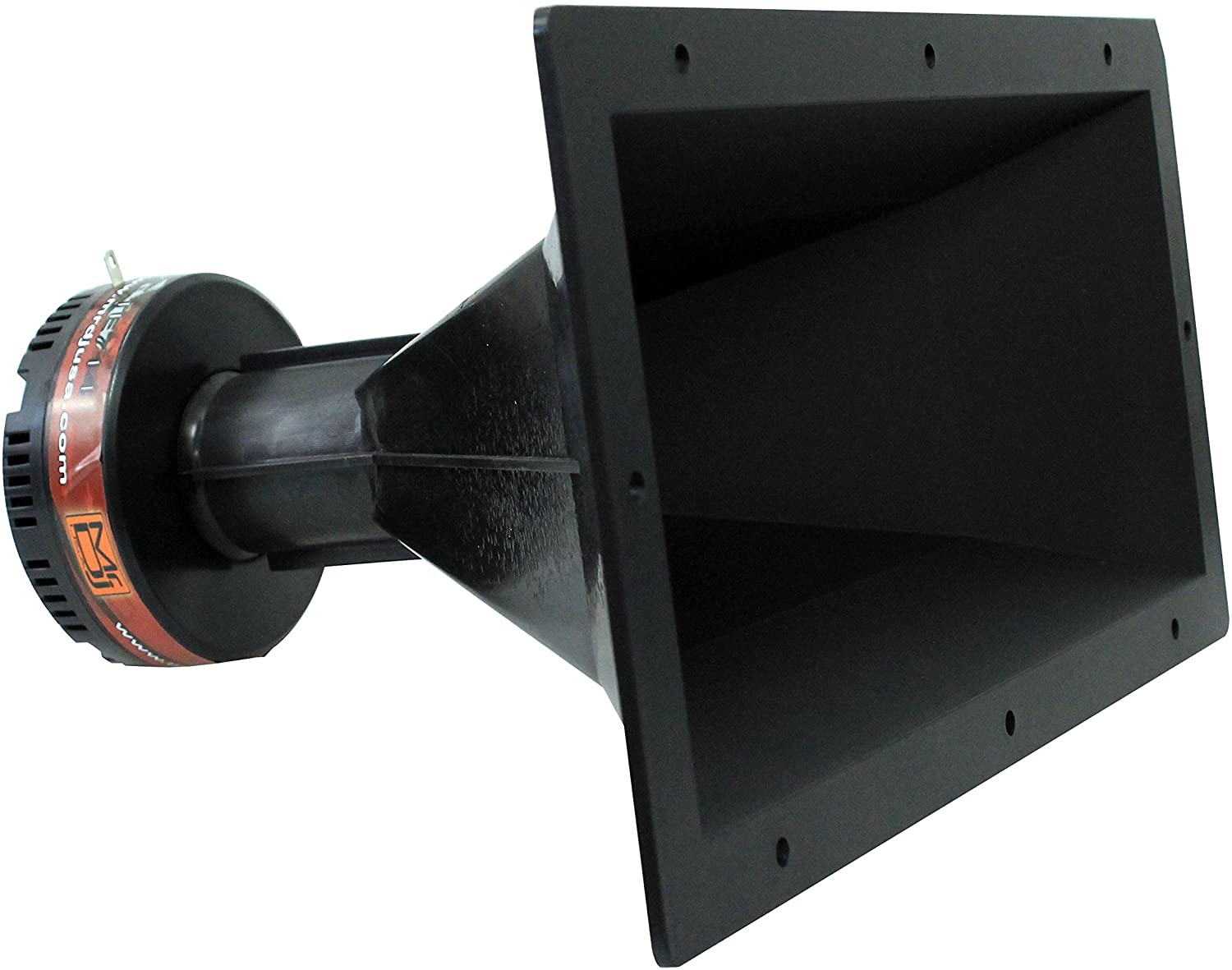

MR DJ USA TE-714 7" x 14" 300W PRO PA/DJ Piezo Compression Horn Tweeter - Wide Screw-On Driver, 108dB High Efficiency

Upgrade your sound system with the MR DJ TE-714 Compression Horn Tweeter, engineered for powerful high-frequency output, exceptional clarity, and wide dispersion. Designed for PA/DJ speakers, DIY builds, and replacement applications, this high-efficiency horn delivers crisp highs with low distortion—perfect for professional and enthusiast setups.

General Features

• High-Power Performance - 300W Peak / 100W Max / 50W RMS for strong, clean high-frequency output
• Wide Dispersion Horn Design - 7" x 14" horn tweeter speaker provides broad sound coverage for PA and DJ systems
• High Sensitivity (108 dB) - Delivers loud output with minimal power input
• Extended Frequency Response - Covers 1.5kHz-20kHz for crisp highs and detailed sound reproduction
• Screw-On Compression Driver - Standard 1" throat for easy installation and compatibility
• Titanium Diaphragm + Ferrofluid Cooling - Enhances durability, clarity, and heat dissipation
• Universal Replacement Tweeter - Works with JBL, Peavey, Cerwin Vega, EV, Yamaha, Pyle-Pro & more
• Multi-Application Use - Ideal for PA speakers, DJ systems, stage monitors, home cabinets, and automotive audio
• Durable ABS Construction - Lightweight yet rugged housing for long-lasting performance
• DIY Friendly - Perfect upgrade from entry-level tweeters for custom speaker builds

Technical Specifications

• Type: Compression Horn Tweeter with Driver
• Horn Size: 7" x 14"
• Impedance: 8 Ohms
• Frequency Range: 1.5kHz - 20kHz
• Extreme HF Response: 3.5kHz - 30kHz
• Sensitivity: 108 dB
• RMS Power: 50 Watts
• Max Power: 100 Watts
• Peak Power: 300 Watts
• Voice Coil / Cooling: Ferrofluid Cooled
• Diaphragm Material: Titanium
• Magnet: 22 oz

Dimensions & Weight

• Front Dimensions: 7.25" x 14.43"
• Mounting Cutout: 6.06" x 13.31"
• Depth (Front to Magnet): 8.81"
• Item Weight: 1.95 lbs
• Overall Size: 14" x 4" x 7"

Applications

• PA / DJ Speaker Systems
• Stage Monitors
• Home Speaker Cabinets
• Car Audio Custom Builds
• Replacement for Damaged Horn Tweeters

What's in the Box

• (1) MR DJ TE-714 Compression Horn Tweeter
