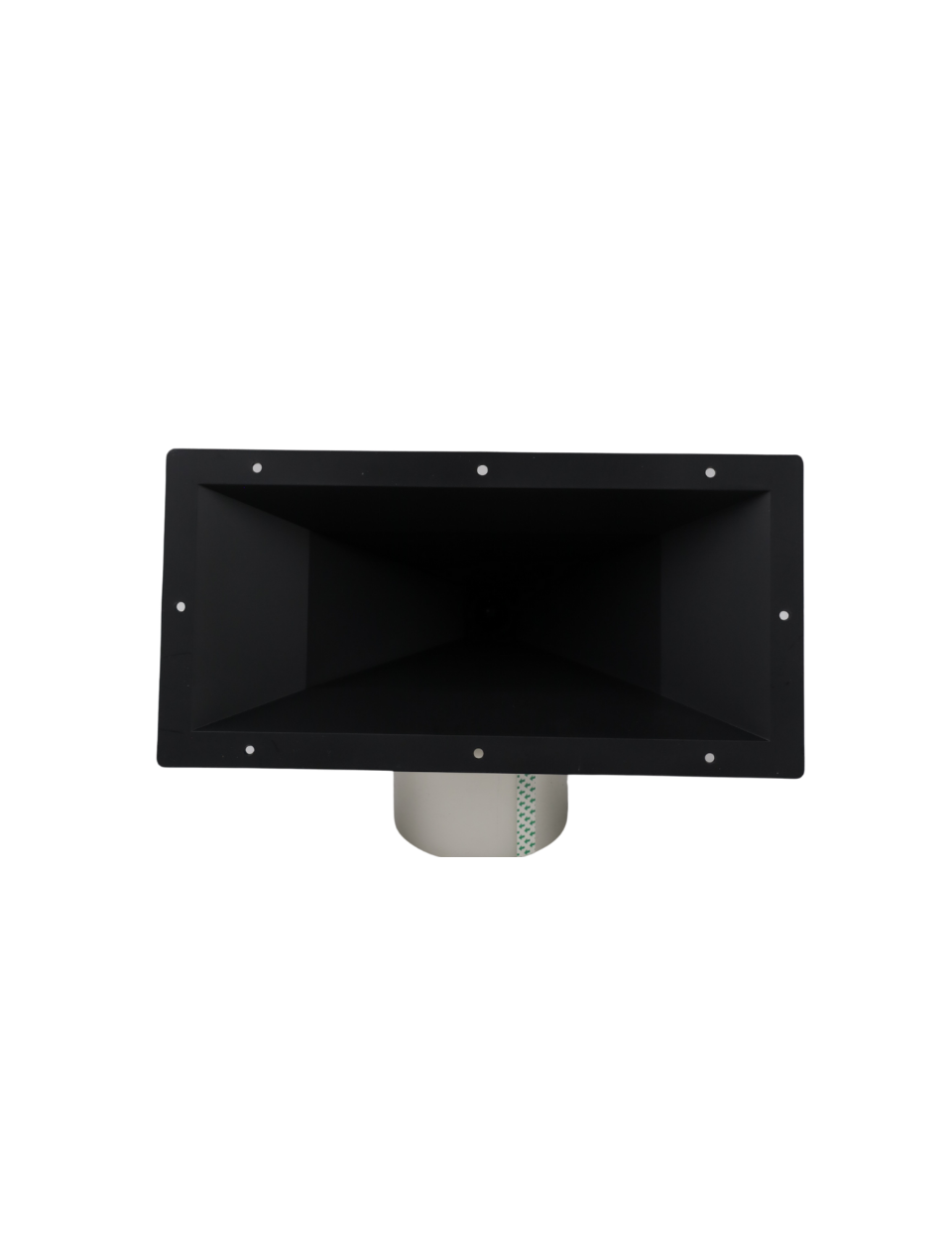

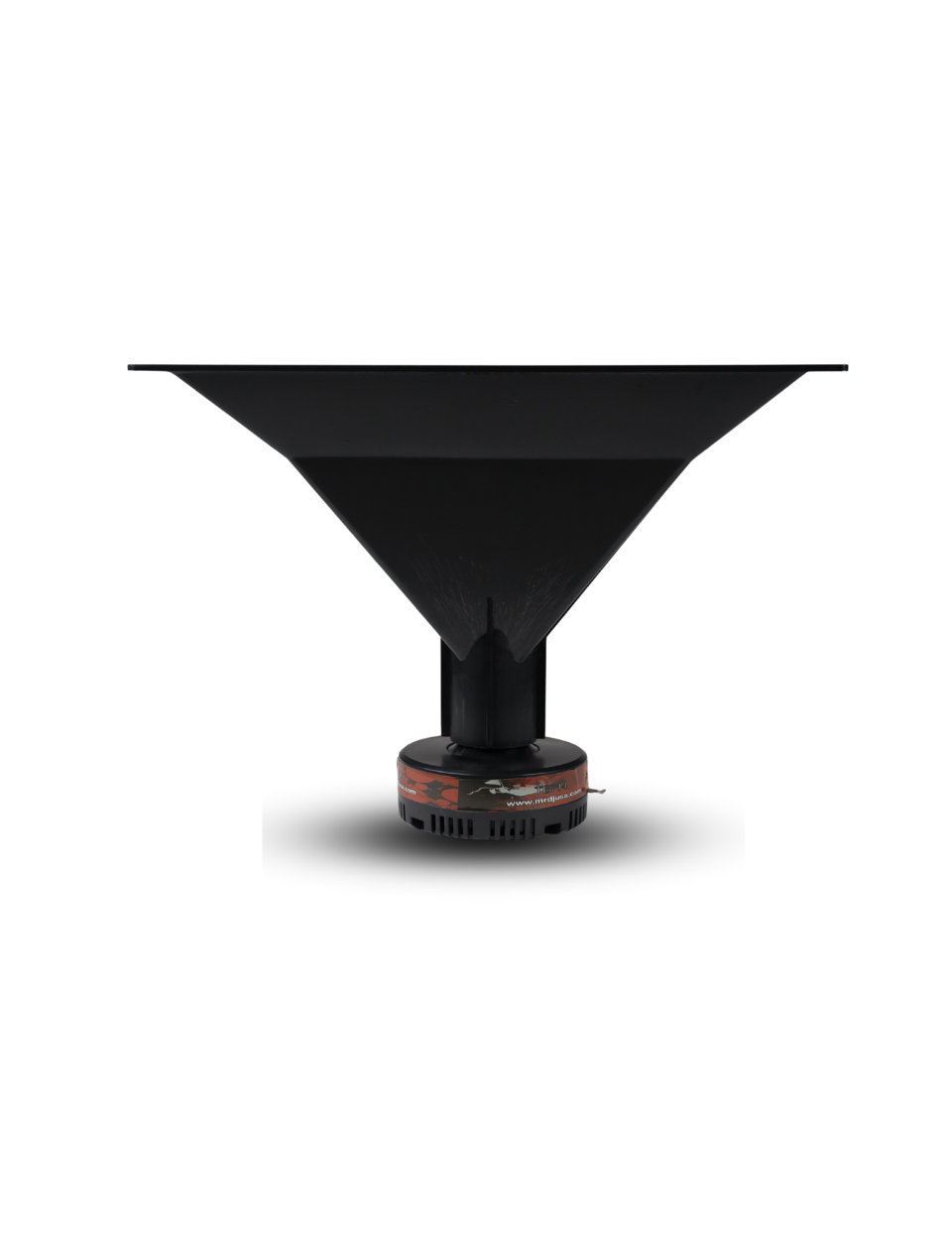

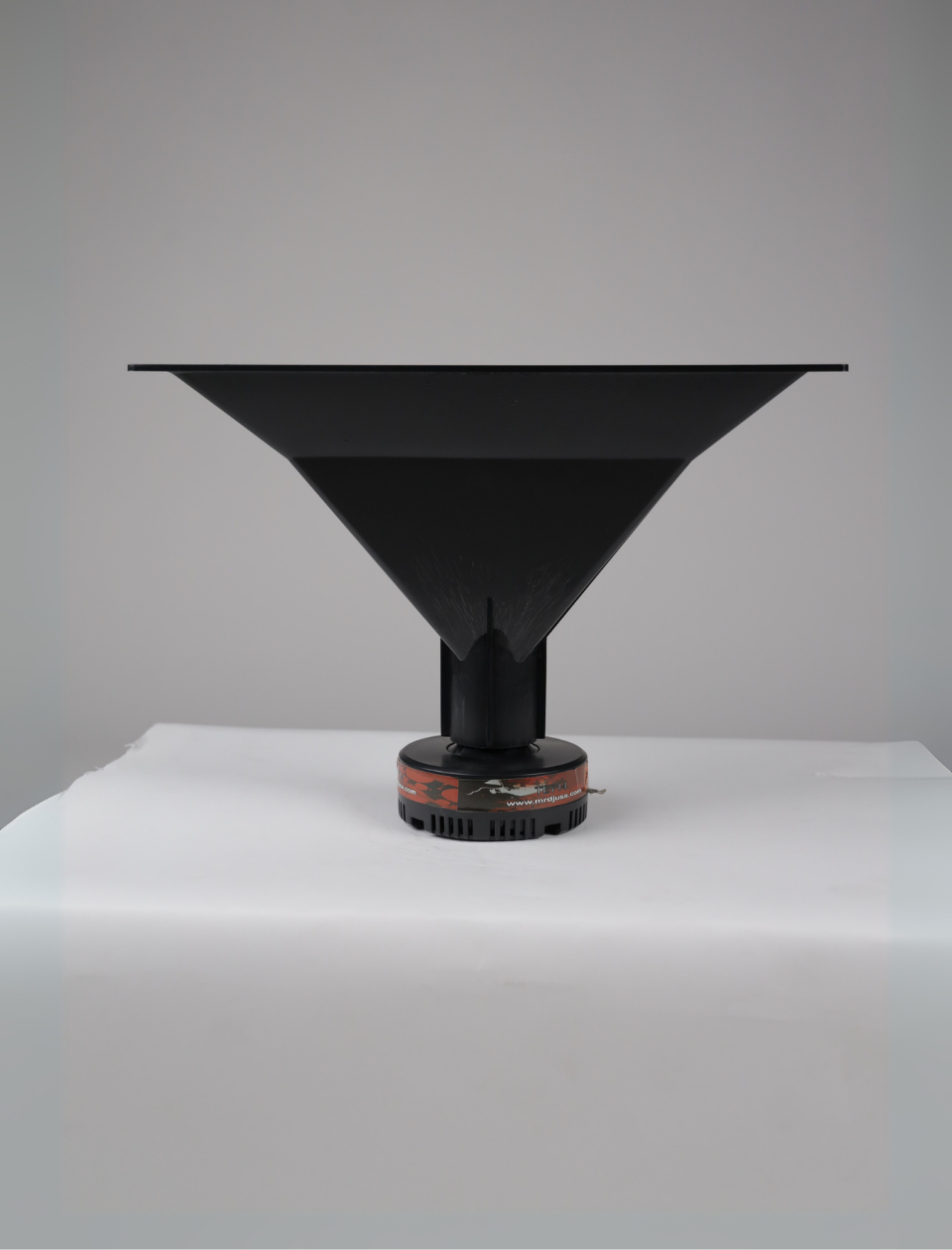

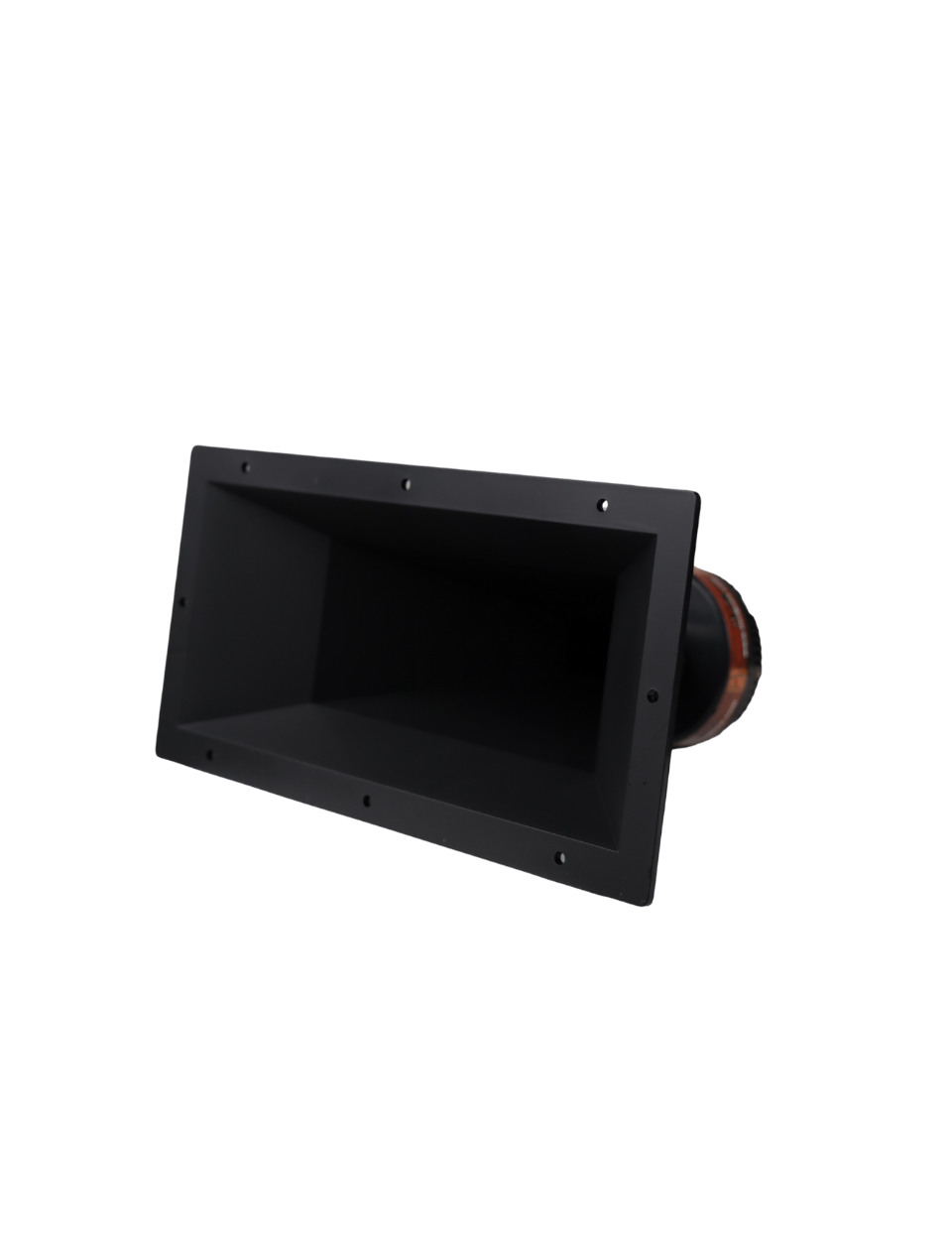

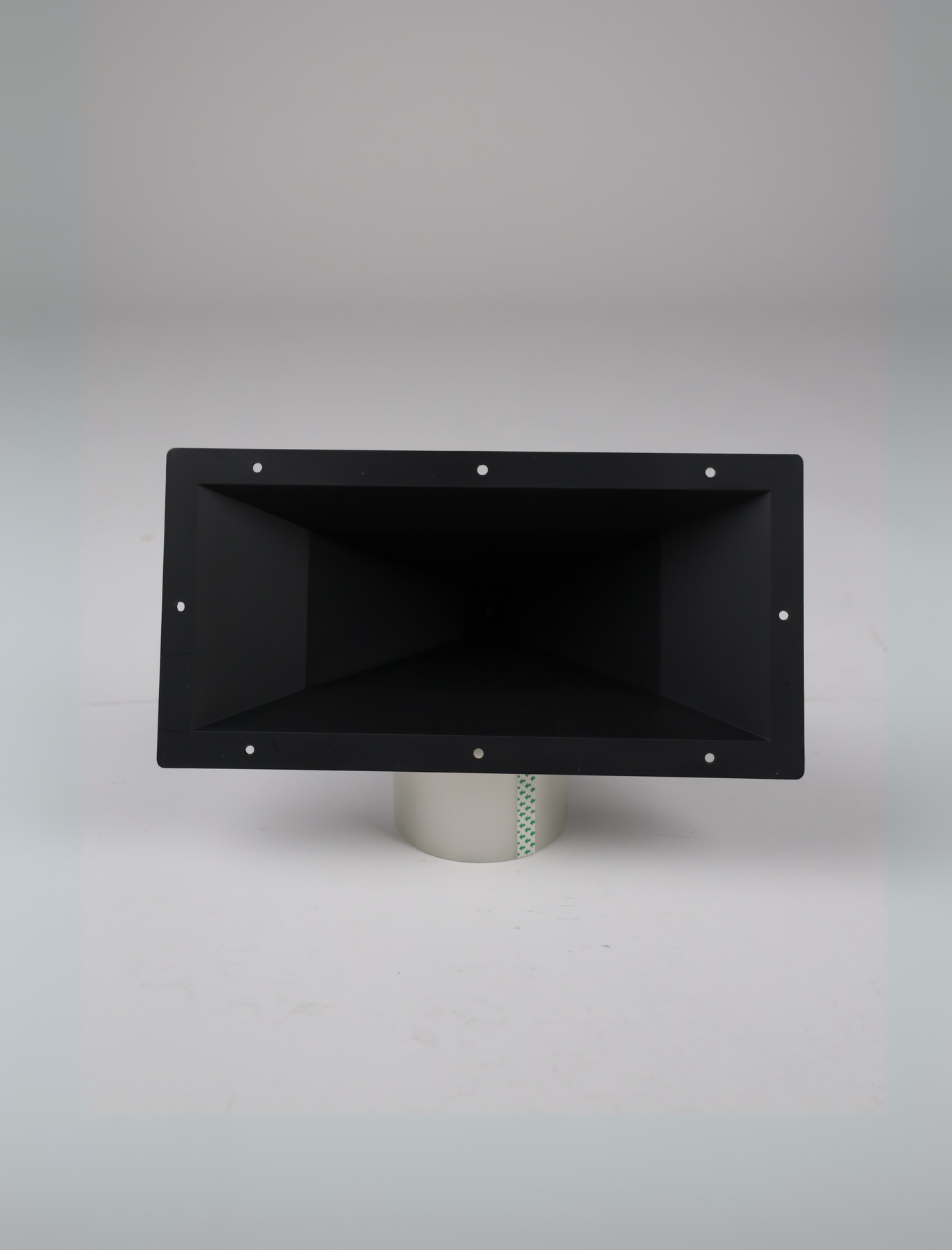

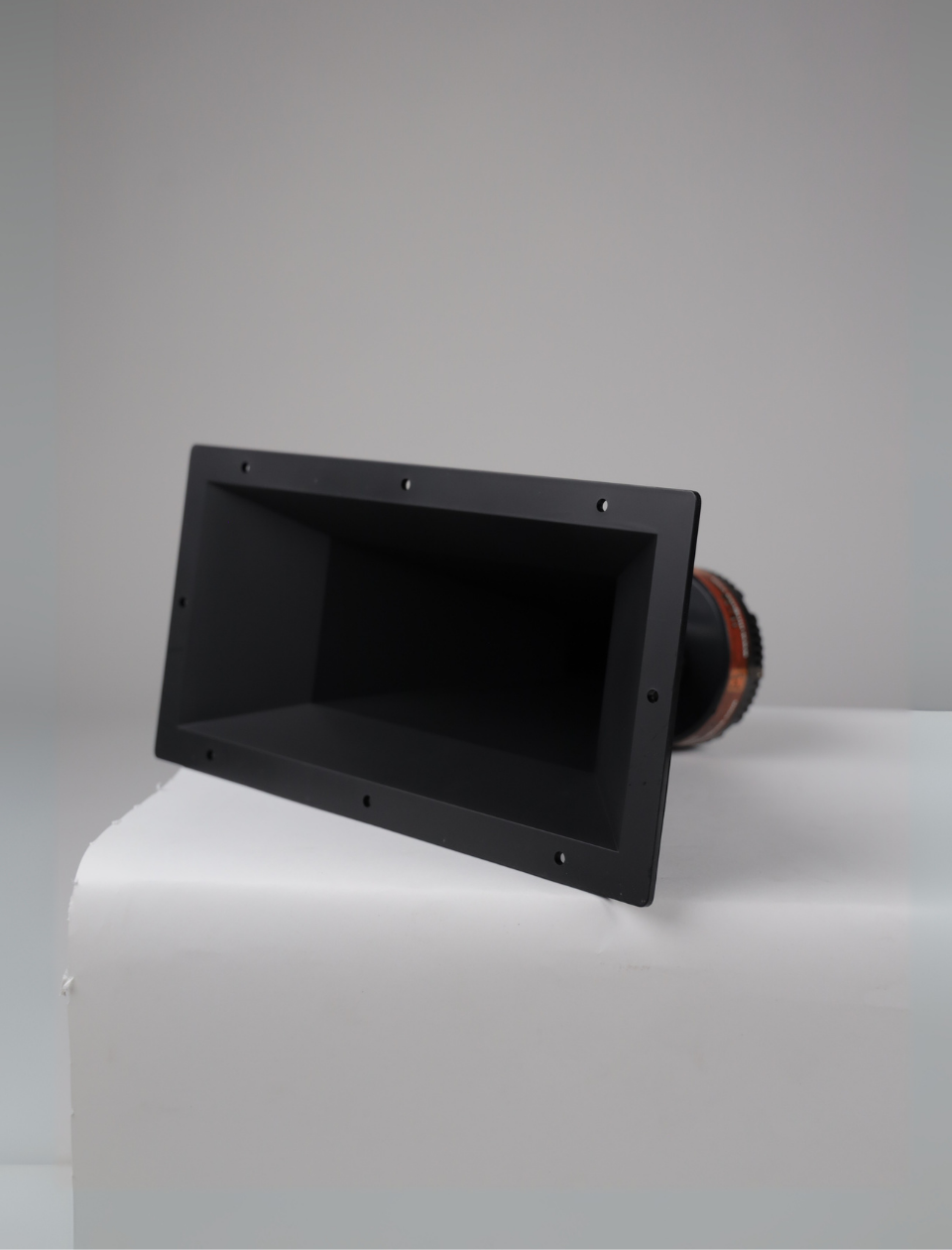

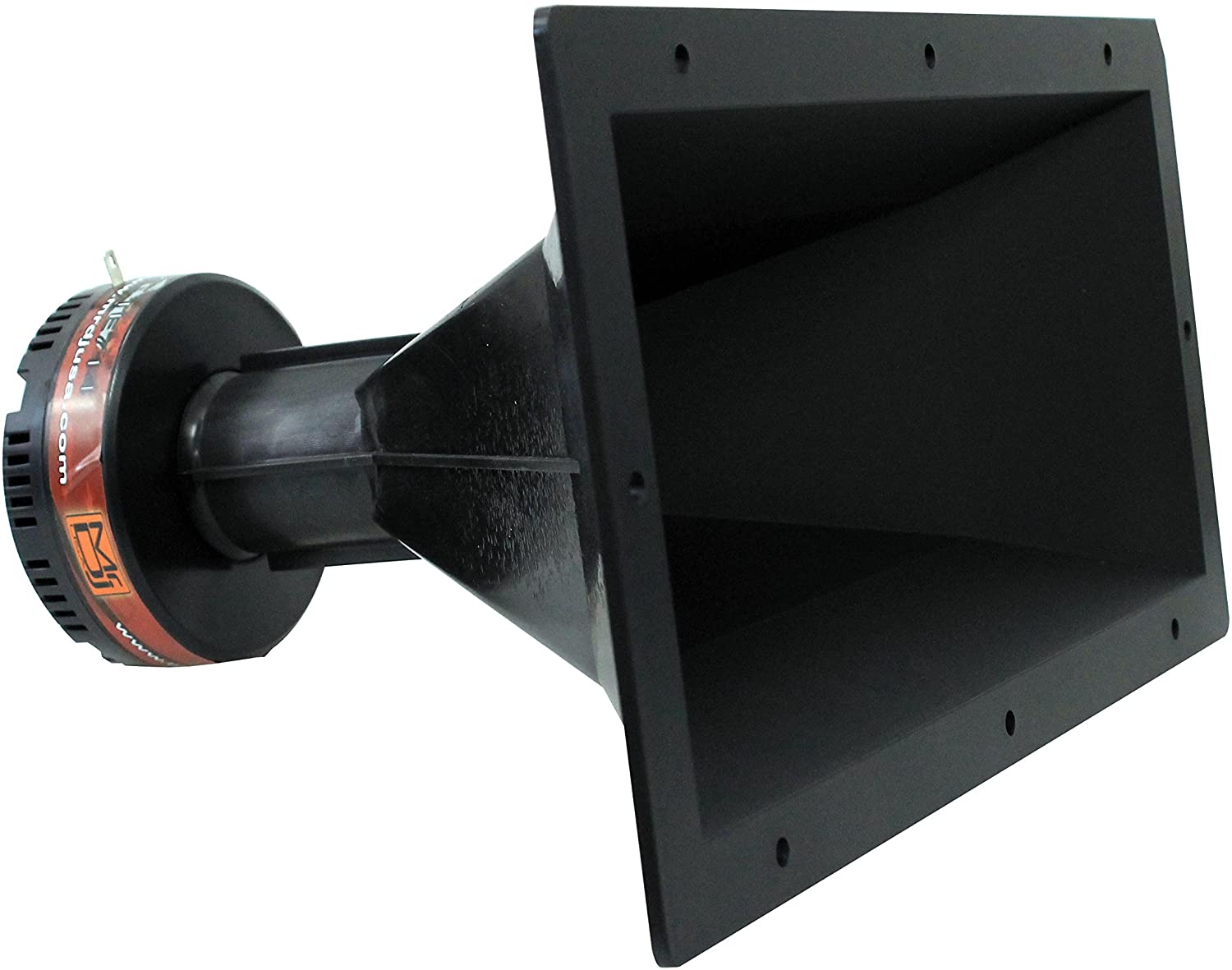

MR DJ USA TE-714 7" x 14" 300W PRO PA/DJ Piezo Compression Horn Tweeter - Wide Screw-On Driver, 108dB High Efficiency

Upgrade your sound system with the MR DJ TE-714 Compression Horn Tweeter, engineered for powerful high-frequency output, exceptional clarity, and wide dispersion. Designed for PA/DJ speakers, DIY builds, and replacement applications, this high-efficiency horn delivers crisp highs with low distortion—perfect for professional and enthusiast setups.

General Features:

• 🔊 High-Power Performance - 300W Peak / 100W Max / 50W RMS for strong, clean high-frequency output

• 🎯 Wide Dispersion Horn Design - 7" x 14" horn provides broad sound coverage for PA and DJ systems

• ⚡ High Sensitivity (108 dB) - Delivers loud output with minimal power input

• 🎶 Extended Frequency Response - Covers 1.5kHz-20kHz for crisp highs and detailed sound reproduction

• 🛠️ Screw-On Compression Driver - Standard 1" throat for easy installation and compatibility

• 🔥 Titanium Diaphragm + Ferrofluid Cooling - Enhances durability, clarity, and heat dissipation

• 🔄 Universal Replacement Tweeter - Works with JBL, Peavey, Cerwin Vega, EV, Yamaha, Pyle-Pro & more

• 🚗 Multi-Application Use - Ideal for PA speakers, DJ systems, stage monitors, home cabinets, and automotive audio

• 🧱 Durable ABS Construction - Lightweight yet rugged housing for long-lasting performance

• 🧰 DIY Friendly - Perfect upgrade from entry-level tweeters for custom speaker builds

Technical Specifications:

• Type: Compression Horn Tweeter with Driver

• Horn Size: 7" x 14"

• Impedance: 8 Ohms

• Frequency Range: 1.5kHz - 20kHz

• Extreme HF Response: 3.5kHz - 30kHz

• Sensitivity: 108 dB

• RMS Power: 50 Watts

• Max Power: 100 Watts

• Peak Power: 300 Watts

• Voice Coil / Cooling: Ferrofluid Cooled

• Diaphragm Material: Titanium

• Magnet: 22 oz

Dimensions & Weight:

• Front Dimensions: 7.25" x 14.43"

• Mounting Cutout: 6.06" x 13.31"

• Depth (Front to Magnet): 8.81"

• Item Weight: 1.95 lbs

• Overall Size: 14" x 4" x 7"

Applications:

• PA / DJ Speaker Systems

• Stage Monitors

• Home Speaker Cabinets

• Car Audio Custom Builds

• Replacement for Damaged Horn Tweeters

What's in the Box:

• (1) MR DJ TE-714 Compression Horn Tweeter
