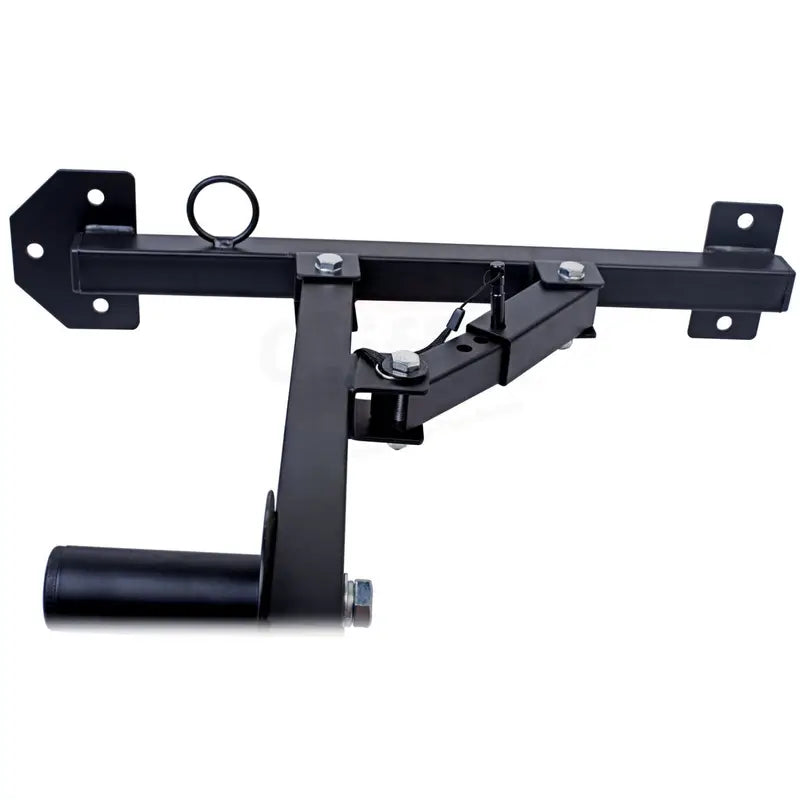

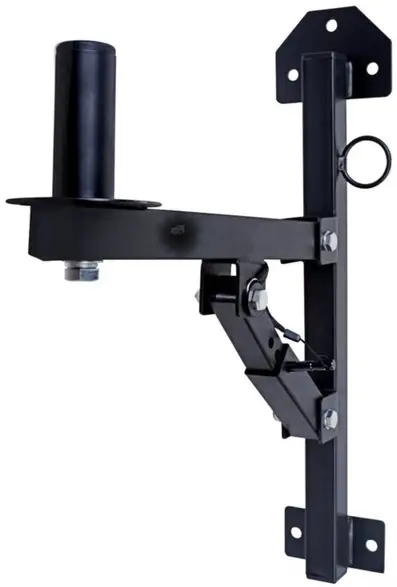

MR DJ USA WM970 Universal Adjustable Wall-Mount PA Speaker Bracket - Heavy-Duty Steel, 1-3/8" Pole Mount

The MR DJ USA WM970 is a heavy-duty adjustable wall-mount speaker bracket designed for permanently mounting one compatible PA speaker in churches, schools, clubs, bars, theaters, auditoriums, restaurants, businesses, and other professional sound installations.

Featuring an industry-standard 1-3/8" (35mm) speaker mounting post, the WM970 works with many PA speaker cabinets equipped with a compatible bottom pole-mount socket. Its adjustable arm and multi-angle positioning allow the speaker to be aimed toward the desired listening area for improved sound coverage.

Built from heavy-duty steel, the WM970 provides a sturdy, space-saving alternative to floor speaker stands for permanent and semi-permanent installations.

Key Features

🔊 SINGLE PA SPEAKER WALL MOUNT - Includes one wall-mount bracket designed to support one compatible pole-mount PA speaker.

💪 HEAVY-DUTY STEEL CONSTRUCTION - Rugged metal construction provides a strong mounting platform for professional installed-sound applications.

⚖️ UP TO 88 LB CAPACITY - Manufacturer-stated maximum load capacity of up to 88 lbs. when properly installed to an appropriate structural surface.

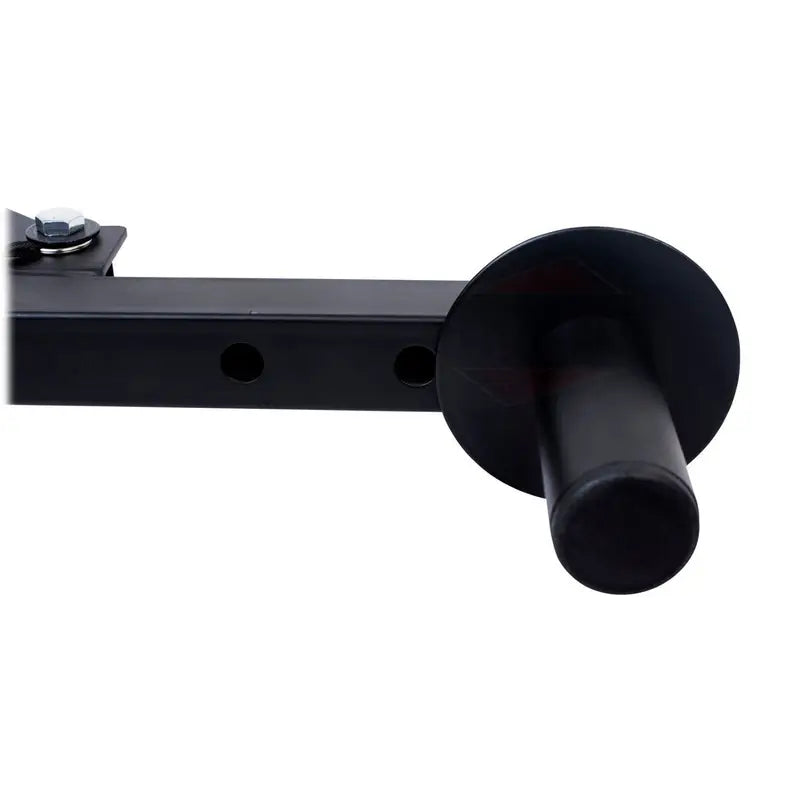

📏 1-3/8" STANDARD SPEAKER POST - Industry-standard 1-3/8" (35mm) mounting stud fits many professional PA speaker cabinets equipped with compatible pole-mount sockets.

↔️ ADJUSTABLE 12"-19" ARM LENGTH - Adjustable extension allows the distance between the speaker and wall to be changed for different cabinet sizes and installation requirements.

🎯 MULTI-ANGLE ADJUSTABILITY - Adjustable positioning helps direct the speaker toward the audience or listening area.

📐 3 PRESET TILT POSITIONS - Provides 0°, 5°, and 13° preset arm positions for convenient speaker aiming.

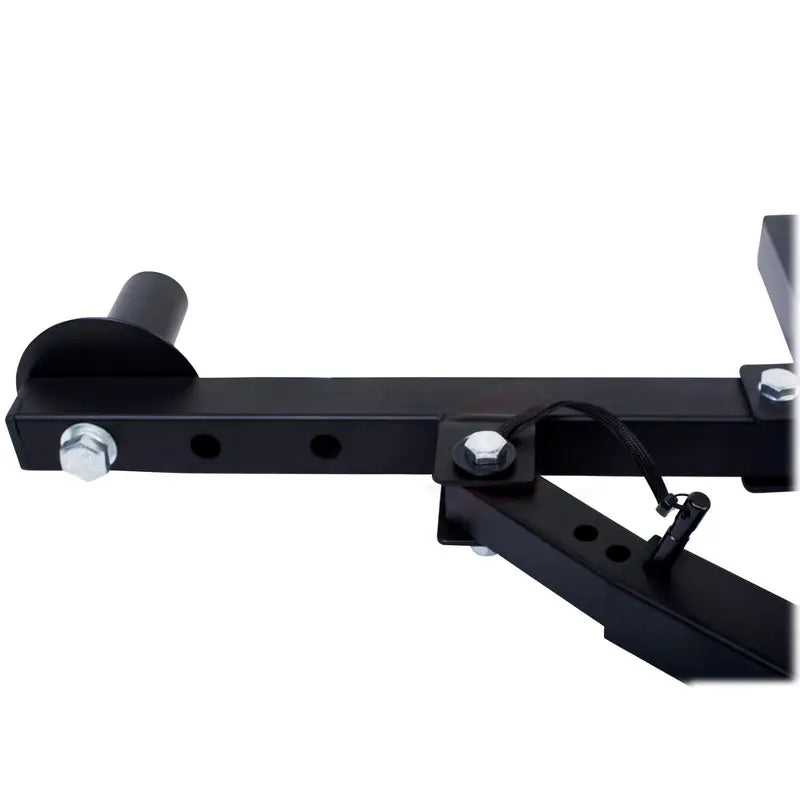

🔒 STEEL SAFETY PIN WITH CHAIN - Locking safety pin helps secure the selected arm position and remains attached to the bracket for convenience.

🔩 MULTI-POINT WALL-MOUNTING PLATE - Multiple mounting points provide a secure mounting platform when properly installed using appropriate hardware and structural support.

🏢 SPACE-SAVING INSTALLATION - Ideal for applications where traditional floor speaker stands are impractical or take up valuable floor space.

General Features

• One Universal PA Speaker Wall-Mount Bracket

• Designed to Mount One Compatible PA Speaker

• Heavy-Duty Steel Construction

• 1-3/8" (35mm) Speaker Mounting Post

• Up to 88 lb Manufacturer-Stated Load Capacity

• Adjustable Arm Length

• Approximately 12"-19" Extension Range

• Multi-Angle Speaker Positioning

• Three Preset Tilt Positions

• 0°, 5° & 13° Tilt Settings

• Adjustable Speaker Positioning

• Steel Locking / Safety Pin

• Safety Pin Retaining Chain

• Multi-Point Wall-Mounting Plate

• Space-Saving Wall-Mount Design

• Suitable for Permanent & Semi-Permanent Installations

• Professional PA & DJ Applications

• Black Finish

Specifications

• Brand: MR DJ USA

• Model: WM970

• Product Type: Adjustable PA Speaker Wall-Mount Bracket

• Quantity: 1 Piece / 1 Bracket

• Speaker Capacity: 1 Speaker

• Construction: Heavy-Duty Steel

• Speaker Post Diameter: 1-3/8" / 35mm

• Adjustable Arm Length: Approximately 12"-19"

• Preset Tilt Positions: 0° / 5° / 13°

• Maximum Load Capacity: Up to 88 lbs.*

• Mounting Type: Wall Mount

• Speaker Compatibility: Compatible with PA speakers with appropriate pole-mount sockets

• Finish: Black

• Product Weight: Approximately 5 lbs.

• Application: PA / DJ / Installed Sound

• Weight: 5 lps

• Dimensions: 25.5" x 7" x 5"

Ideal Applications

• Churches & Houses of Worship

• Schools

• Bars & Nightclubs

• Restaurants

• Theaters

• Auditoriums

• Function Halls

• Wedding & Event Venues

• Bowling Alleys

• Gyms & Fitness Centers

• Retail Businesses

• Conference Rooms

• Karaoke Venues

• Professionally Installed Sound Systems

• DJ & PA Speaker Installations

Package Includes

• (1) MR DJ USA WM970 Adjustable Wall-Mount PA Speaker Bracket

• (1) Locking / Safety Pin with Retaining Chain

Important Safety & Installation Note

The WM970 must be attached to a structurally suitable wall or support that can safely carry the installed load. The stated load capacity assumes proper installation with appropriate mounting hardware.

Always verify the speaker's actual weight, pole-mount socket size, bracket capacity, wall construction, fasteners, and mounting method before installation. For elevated speaker installations, professional installation and an appropriate secondary safety restraint are strongly recommended.
