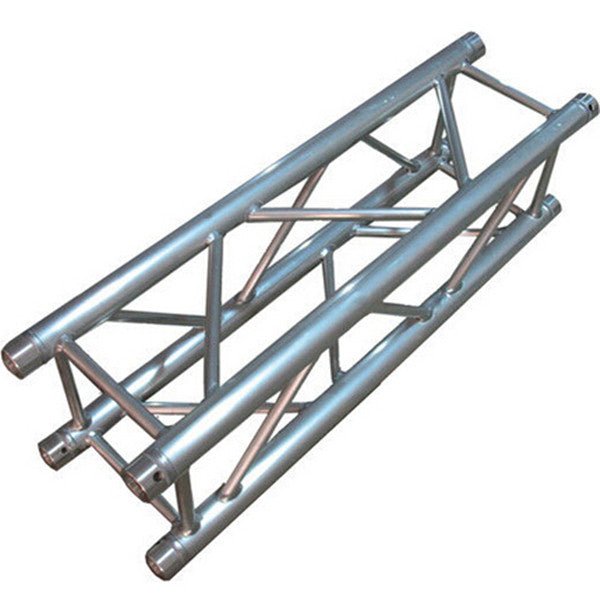

MR TRUSS MTTSQ1312 13.12 FT (4 Meter) 12" Square Aluminum Box Truss Segment - 2" Main Tubes

The MR TRUSS MTTSQ1312 is a professional 13.12-foot (4-meter) square aluminum box truss segment designed for stage lighting, DJ systems, concerts, exhibitions, trade shows, theaters, clubs, and event-production applications.

Built with 2-inch (50mm) main tubes and 3/4-inch (20mm) diagonal bracing, the MTTSQ1312 provides a modular truss solution for compatible lighting, display, signage, video, and production systems. Its nominal 12-inch square format is designed to integrate with compatible square truss components when all connection dimensions and hardware specifications match.

Key Features

🔩 13.12 FT / 4 METER SQUARE TRUSS SEGMENT - Full-length professional truss section for larger stage, lighting, exhibition, and production structures.

⬜ NOMINAL 12" SQUARE BOX TRUSS DESIGN - Four-chord square configuration provides multiple mounting surfaces for compatible production equipment.

💪 ALUMINUM CONSTRUCTION - Lightweight aluminum design provides a practical strength-to-weight balance for professional event applications.

📏 2" / 50MM MAIN TUBES - Heavy-duty main chords are designed for compatible professional square truss systems.

🔗 3/4" / 20MM DIAGONAL BRACING - Integrated bracing supports the square truss structure throughout the 4-meter section.

💡 LIGHTING & DISPLAY APPLICATIONS - Suitable for compatible lighting fixtures, moving heads, signage, display hardware, and production accessories when properly engineered and mounted.

🧩 MODULAR SYSTEM DESIGN - Can be used to expand compatible square truss systems or create custom event-production configurations.

✨ ALUMINUM FINISH - Professional appearance suitable for concerts, trade shows, theaters, clubs, corporate events, and installations.

General Features

• Professional Square Aluminum Box Truss

• 13.12 FT / 4 Meter Length

• Nominal 12" Square Truss Format

• Four-Chord Box Truss Design

• Aluminum Construction

• 2" / 50mm Main Tubes

• 3/4" / 20mm Brace Tubes

• Approximately 290mm Outside Dimension

• Modular Expandable Design

• Designed for Professional Lighting & Event Production

• Suitable for Compatible Indoor & Outdoor Event Applications

• Professional Aluminum Finish

• Compatible with Matching Truss Connection Systems

Specifications

• Brand: MR TRUSS

• Model: MTTSQ1312

• Product Type: Square Aluminum Box Truss Segment

• Truss Style: 4-Chord Square Box Truss

• Nominal Size: 12"

• Length: 13.12 FT / 4 Meters

• Outside Dimension: Approximately 11-7/16" / 290mm

• Main Tube Diameter: 2" / 50mm

• Brace Diameter: 3/4" / 20mm

• Material: Aluminum

• Approximate Overall Dimensions: 12"W × 12"D × 13.12'L

• Shipping Weight: Approximately 60 lb.

Compatibility

Designed for use with compatible professional square truss systems having matching tube dimensions, connector geometry, spacing, pins, and hardware.

Potential compatibility may include appropriately matched systems from:

• MR TRUSS

• Global Truss

• ProX Truss

• Total Structures

• Tomcat

• Xtreme Structures

• Show Solutions

• Other Compatible Square Truss Systems

Compatibility must be verified before installation. Brand names are provided only as general fitment references and do not imply guaranteed interchangeability or manufacturer affiliation.

Ideal Applications

• DJ Lighting Systems

• Concert Productions

• Stage Lighting

• Theater Installations

• Nightclubs

• Trade Show Booths

• Exhibition Displays

• LED Video Display Structures

• Entrance Structures

• Corporate Events

• Festival Production

• Signage Support Systems

• Custom Truss Configurations

• Professional Event Production

Package Includes

• (1) MR TRUSS MTTSQ1312 13.12 FT / 4 Meter Square Aluminum Truss Segment

Important Rigging & Safety Note

Professional truss is part of a load-bearing structural system and should be assembled, supported, and rigged only by qualified personnel familiar with entertainment structures and applicable safety requirements.

Do not determine allowable load from the truss dimensions alone. Actual system capacity depends on the manufacturer's engineering data, span length, support configuration, connection hardware, load placement, dynamic forces, orientation, and the lowest-rated component in the complete system.

For suspended or overhead installations, use properly rated hardware and independent secondary safety devices where required. Outdoor installations require additional engineering consideration because wind can substantially increase structural loads.

Product Information Correction

The supplied description referenced MTTSQ984 and TSQ1312 in two places. To match the stated product title and specifications, this listing uses MTTSQ1312 throughout.
