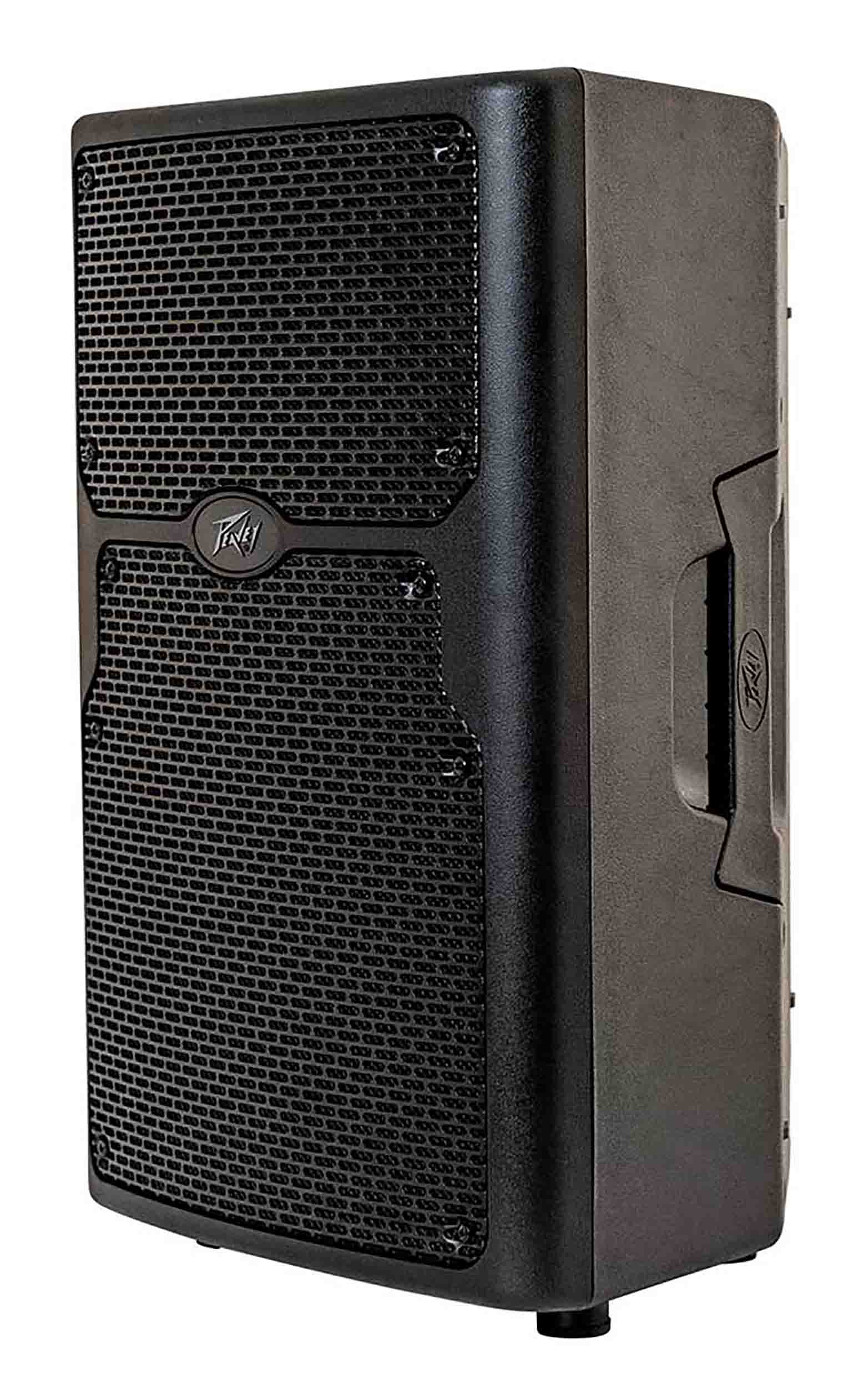

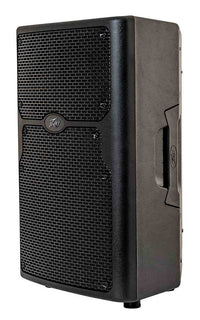

Peavey PVXp 10-inch 520-watt Powered Speaker with 1" Compression Driver, Quadratic Throat Waveguide Technology, Asymmetrical Horn, Combo XLR and 1/4" TRS Input, 1/8" Input, Bluetooth, EQ, and DSP

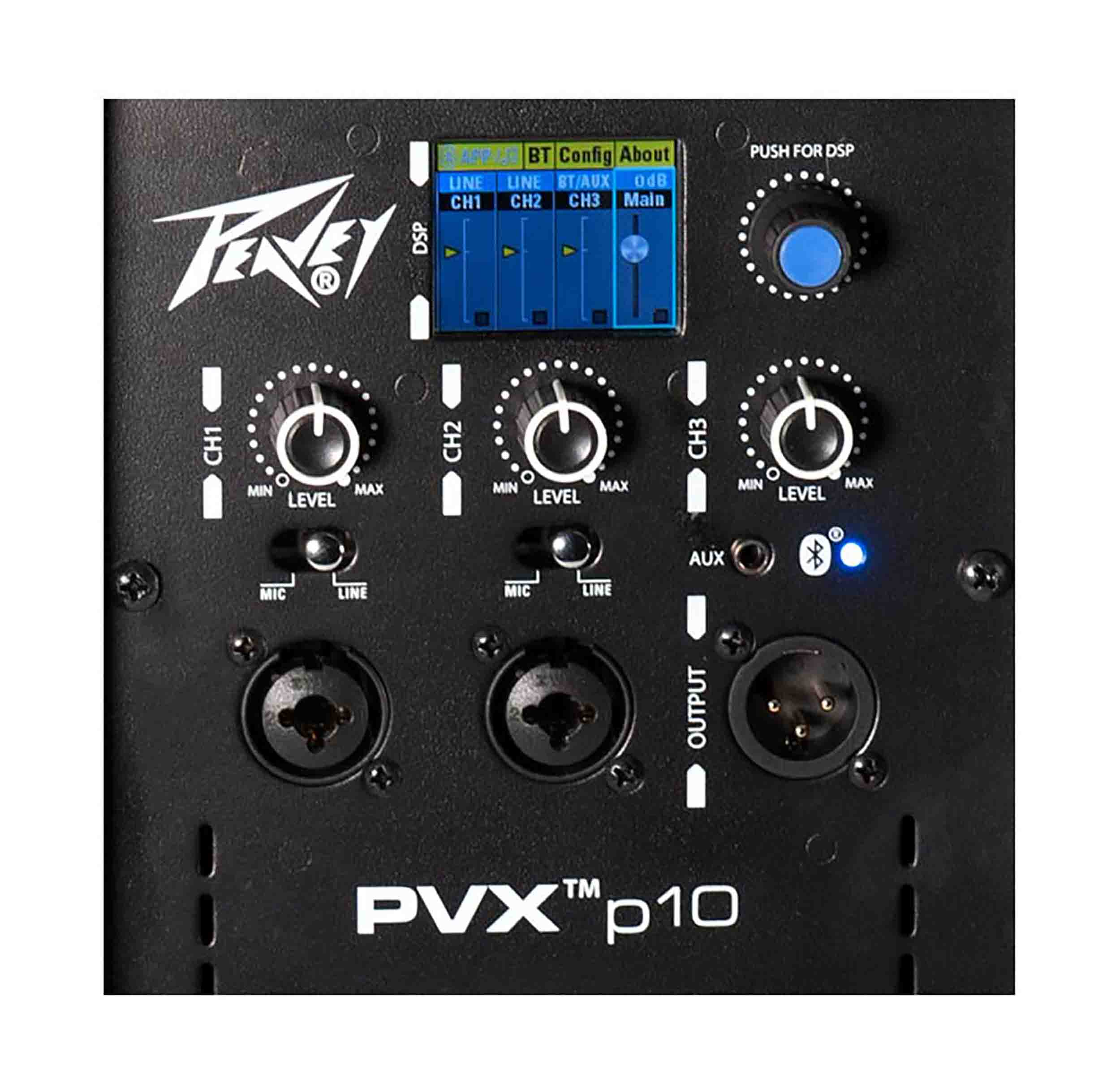

The Peavey PVXp 10 is a Bluetooth-powered 10-inch loudspeaker. The PVXp 10 Bluetooth features a reliable bi-amped power section that provides 520 Watts of peak dynamic power with DSP-based compression and limiting. This enclosure features a 10" heavy-duty woofer with a 2 3/8-inch voice coil and 50-ounce magnet, and the RX10 compression driver with a 1-inch titanium diaphragm on a 100-degree horizontal x 60-degree vertical pattern asymmetrical horn. The PVXp 10 Bluetooth provides two channels with a balanced input via a combination jack that accepts a balanced TRS 1/4" inch input and a balanced XLR input. A switch is provided to change between line and mic level gain. A third channel is for a Bluetooth source or a 1/8" AUX input jack. Each channel has an adjustable Level control and a three-band EQ section. A balanced output, a Male XLR, can feed the mixed signals from the three channels to another component. A front baffle LED indicator that can be set to light when power is on and when the "soft-limiting" DDT circuit is activated, or it can be turned off altogether. The LCD, EQ preset, and other DSP operating parameters are accessed via a one-knob selector, featuring full-coverage, heavy-duty perforated steel grilles with a powder-coat finish. DSP I/O is 48 kHz and 24 bits; internal processing is 56-bit double-precision: Peavey's Quadratic Throat Waveguide technology, 100 by 60-degree coverage. The asymmetrical horn aims the sound down 10 degrees at the audience, not over their heads. Analog input is available via a combination of a female XLR and a 1/4" TRS phone jack with balanced input. There are three channels in total: two for analog and one for Bluetooth or AUX input via a 1/8" jack. Each channel features a level control and a 3-band EQ section, allowing you to adjust and shape the input signals.

General Features:

• Two-way bi-amped sound reinforcement enclosure
• RX™10 compression driver, with 1-inch titanium diaphragm
• Reliable fan-cooled power amps with DSP protection
• Total of 520W peak dynamic power
• DSP control for precise crossover, EQ, and limiting functions
• Bluetooth® input is via a dedicated input channel
• Mix/Thru Output is via a male XLR jack
• Durable plastic injection-molded trapezoidal enclosure
• The extra angled section on the right side allows floor monitor use

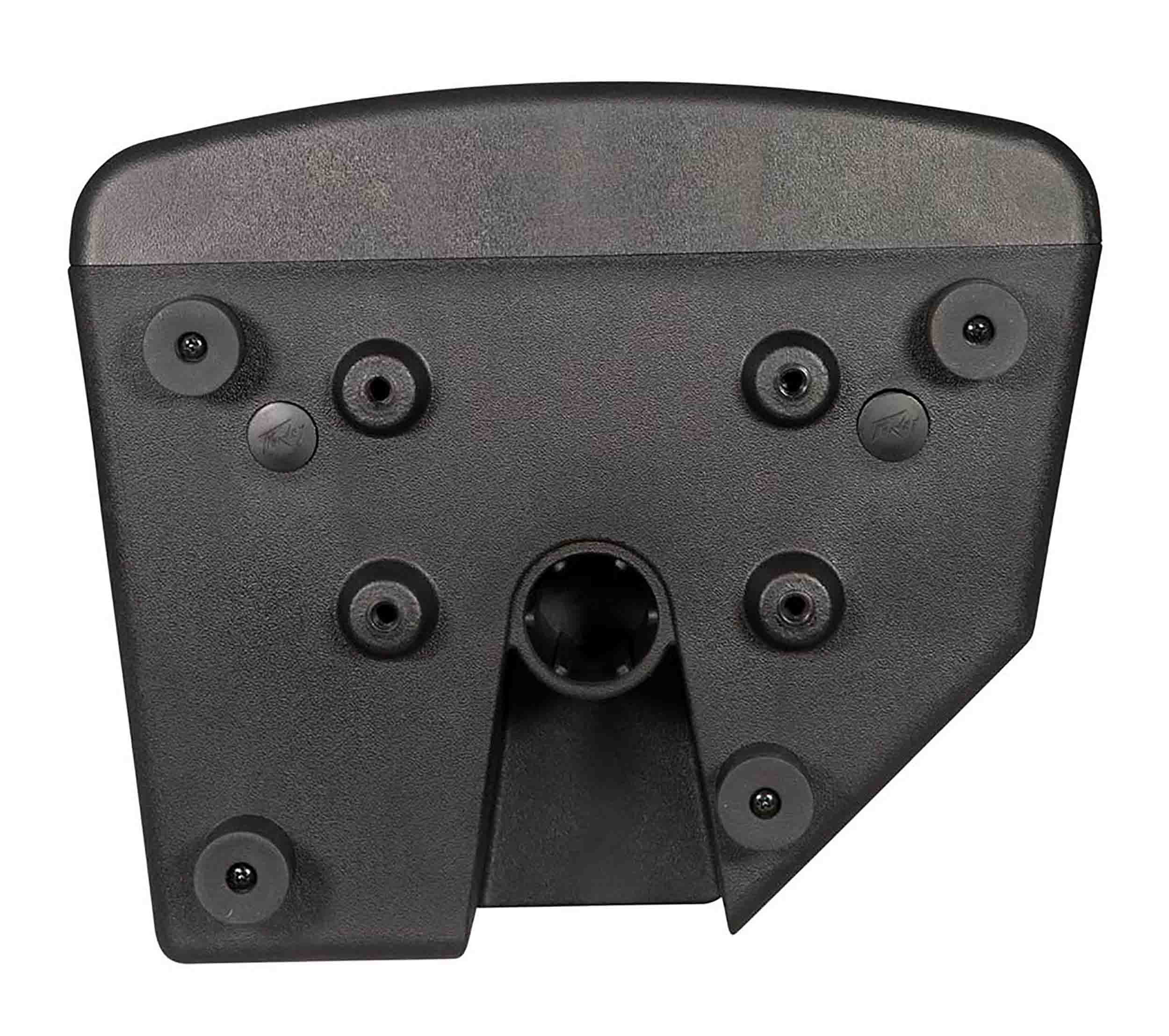

• Pole mount molded-in for 1 3/8" diameter poles
• Top and bottom flying point inserts
• 10" heavy-duty woofer with 2 3/8" voice coil & 50 oz. magnet

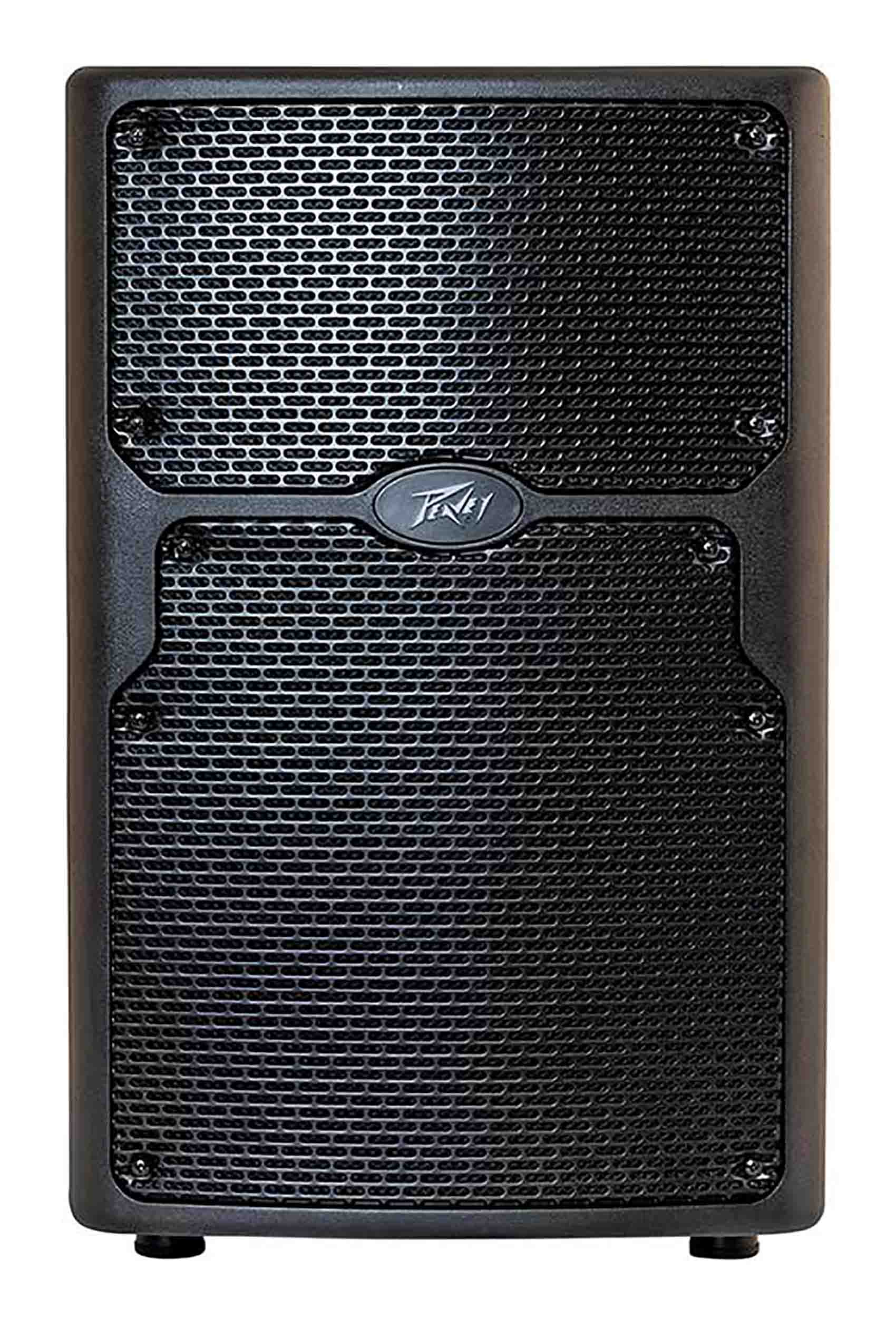

• Full-coverage heavy-duty perforated steel grilles with powder-coat finish
• DSP I/O is at 48 kHz and 24 bits; internal processing is 56-bit double-precision
• Peavey's Quadratic Throat Waveguide™ technology, 100 by 60-degree coverage
• Asymmetrical horn aims the sound down 10 degrees at the audience, not over their heads
• Analog input is via a combo female XLR and 1/4" TRS phone jack with balanced input
• Three channels in total, two for analog and one for Bluetooth or AUX input via a 1/8" jack
• Each channel has a level control and a 3-band EQ section to adjust and shape the input signals
• Packed Weight: 34.18 lb (15.5 kg)
• Packed Length: 22.441" (57 cm)
• Packed Width: 15.945" (40.5 cm)
• Packed Height: 14.37" (36.5 cm)
