Peavey PVXP15 DSP 15 inch Powered Speaker 800W 15" Powered Speaker with 1.4" Compression Driver
- Regular price
- $699.99
- Sale price
- $699.99
- Regular price
-
$899.99
Peavey PVXP15 DSP 15 inch Powered Speaker 800W 15" Powered Speaker with 1.4" Compression Driver
Peavey PVXp 15-inch 980-watt Powered Speaker with 1.4" Compression Driver, Quadratic Throat Waveguide Technology, Asymmetrical Horn, Combo XLR and 1/4" TRS Input, 1/8" Input, Bluetooth, EQ, and DSP

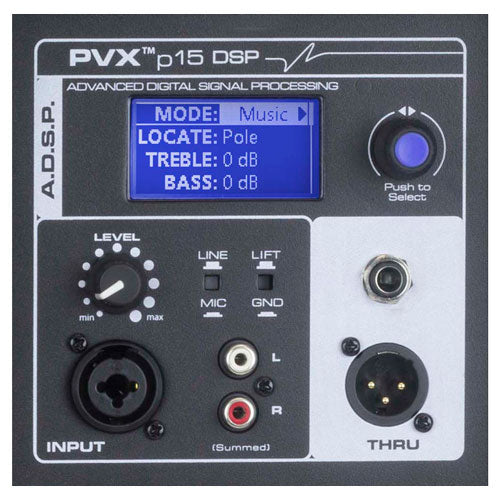

The PVXp 15 Bluetooth features a reliable bi-amped power section that provides 980 Watts peak dynamic power with DSP-based compression and limiting. This enclosure features a 15" heavy-duty woofer with a 2 3/8 inch voice coil and 50-ounce magnet and the speaker RX14 compression driver with a 1.4-inch titanium diaphragm on a 100-degree horizontal x 50-degree vertical pattern asymmetrical horn. The PVXp 15 Bluetooth provides two channels with a balanced input via a combination jack that accepts a balanced TRS 1/4 inch input and a balanced XLR input. A switch is provided to change between line and mic level gain. A third channel is for a Bluetooth source or a 1/8" AUX input jack. Each channel has an adjustable Level control and a three-band EQ section. A balanced output, a Male XLR, can feed the mixed signals from the three channels to another component. A front baffle LED indicator can be lit when power is on and the "soft-limiting" DDT circuit is activated or turned off. The LCD, EQ preset, and other DSP operating parameters are accessed via a one-knob selector.
General Features:
- 15" heavy-duty woofer delivers chest-thumping low-end
- RX 14 compression driver with 1.4" titanium diaphragm delivers smooth, high-end response
- Ultra-reliable fan-cooled power amps with DDT compression
- Patented Quadratic Throat Waveguide technology, 150 by 50-degree coverage
- Asymmetrical horn aims the sound down to 15 degrees (at the audience, not over their heads)
- Mic/Line switch provides two different gain settings
- Tailor your sound to different environments and configurations with built-in DSP
- Durable plastic injection-molded trapezoidal enclosure
- Full-coverage heavy-duty perforated steel grilles with powder-coat finish
- Pole mount molded-in for 1-3/8" diameter poles
- Top and bottom flying point inserts
- The extra angled section on the right side allows for floor monitor use
Tech Specs
- Powered: Yes
- Power Configuration: Bi-amped
- LF Driver Size: 15" woofer, 2.3" voice coil
- HF Driver Size: RX14 1.4" titanium compression driver
- LF Driver Power Amp: 630W Peak
- HF Driver Power Amp: 200W Peak
- Total Power: 830W Peak
- Inputs: 1 x XLR-1/4" combo (mic/line), 2 x RCA (stereo line)
- Outputs: 1 x XLR (thru), 1 x 1/4" (thru)
- Frequency Range: 49Hz-20kHz
- Frequency Response: 58Hz-20kHz (±3dB)
- Crossover Frequency: 2.1kHz
- Maximum Peak SPL: 128 dB SPL @ 1m
- Horizontal Coverage Angle: 100 Degrees
- Vertical Coverage Angle: 50 Degrees
- Signal Processing: EQ Modes, Crossover, Limiter
- Enclosure Material: Plastic injection-molded trapezoidal enclosure
- Mounting Options: Pole Mount with 1.37" socket, 4 x M10 Fly Points, 12 x M8 Fly Points (for Versamount 70+ bracket)
- Power Source: Standard IEC AC cable
- Height: 28.25"
- Width: 18.9"
- Depth: 18.7"
- Weight: 51 lbs.
- Manufacturer Part Number: 03616470
