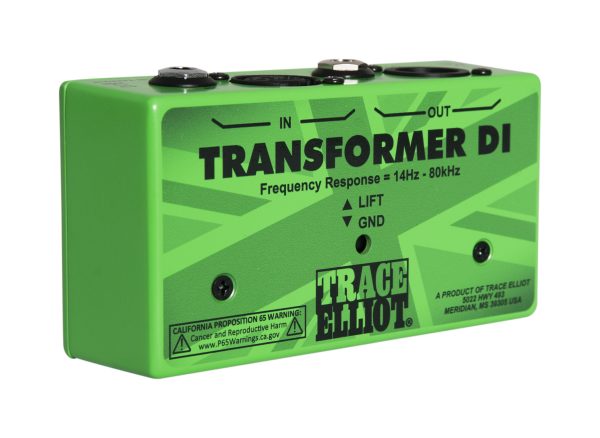

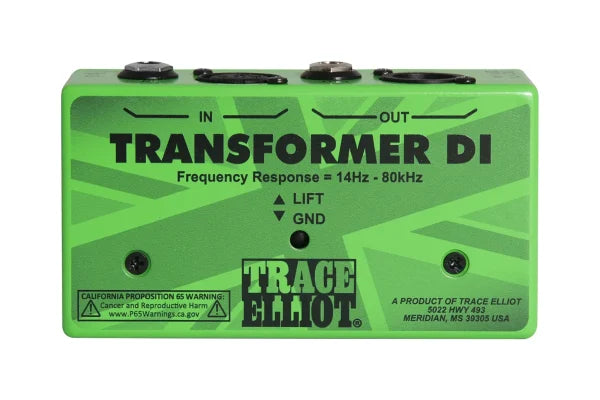

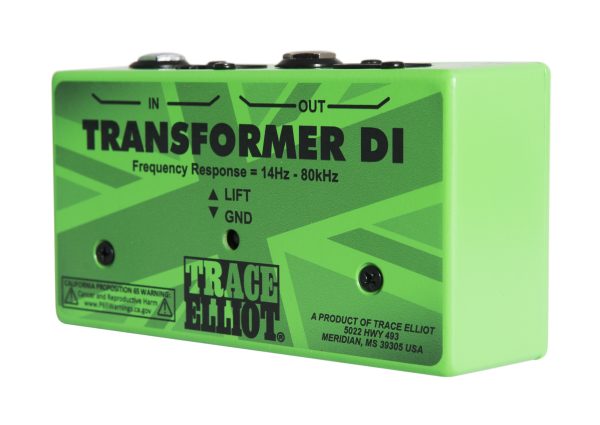

Peavey Trace Elliot® Transformer DI Pedal

When you need to convert between balanced and unbalanced signals to connect your gear, the Trace Elliot Transformer DI does so with 1-to-1 audiophile quality. Equipped with a p erfectly balanced proprietary transformer design , the Transformer DI solves the balanced/unbalanced conversion challenge with total transparency. Never lose your low B - full clarity down to 14Hz means nothing you play gets lost.

When you need to convert between balanced and unbalanced signals to connect your gear, the Trace Elliot® Transformer DI does so with 1-to-1 audiophile quality. Equipped with a p erfectly balanced proprietary transformer design , the Transformer DI solves the balanced/unbalanced conversion challenge with total transparency. Never lose your low B - full clarity down to 14Hz means nothing you play gets lost.

General Features:

• General purpose audiophile quality 1:1 line level audio transformer interface.

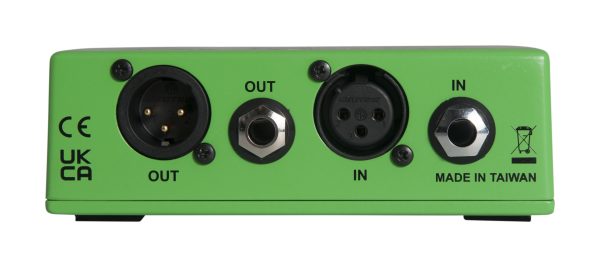

• Transforms balanced to unbalanced line signals or unbalanced to balanced line signals.
• Perfectly balanced proprietary transformer design with ultra-high permeability Ni-Fe core.
• Frequency Response of 20Hz to 20kHz (-0.5dB) with no more than +/-1.0dB of variation from 14Hz to 80kHz.
• Total Harmonic Distortion is <0.015% from 70Hz to 80kHz.
• Total Harmonic Distortion is 0.5% at 20Hz.
• Electrical isolation of >500V between secondary and primary winding or windings.
• Insertion loss <1.0dB.
• Input levels up to +22.2dBu are acceptable.
• Ground lift with RF rejection circuitry.
• Excellent for low to mid impedance signal sources.
• Never lose your low B - full clarity down to 14Hz means nothing you play gets lost.
• Item Number: 3620100

Professional Signal Conversion

Convert instrument and line-level signals between balanced and unbalanced with complete 1:1 transparency.

Audiophile Quality

Perfectly balanced proprietary transformer design with ultra-high permeability Ni-Fe core for true sonic transparency.

Solution for Stage and Studio

Transforms balanced to unbalanced line signals or unbalanced to balanced line signals.

For Bass, Acoustic and More

Accepts instrument and line-level signals up to +22.2dBu.
