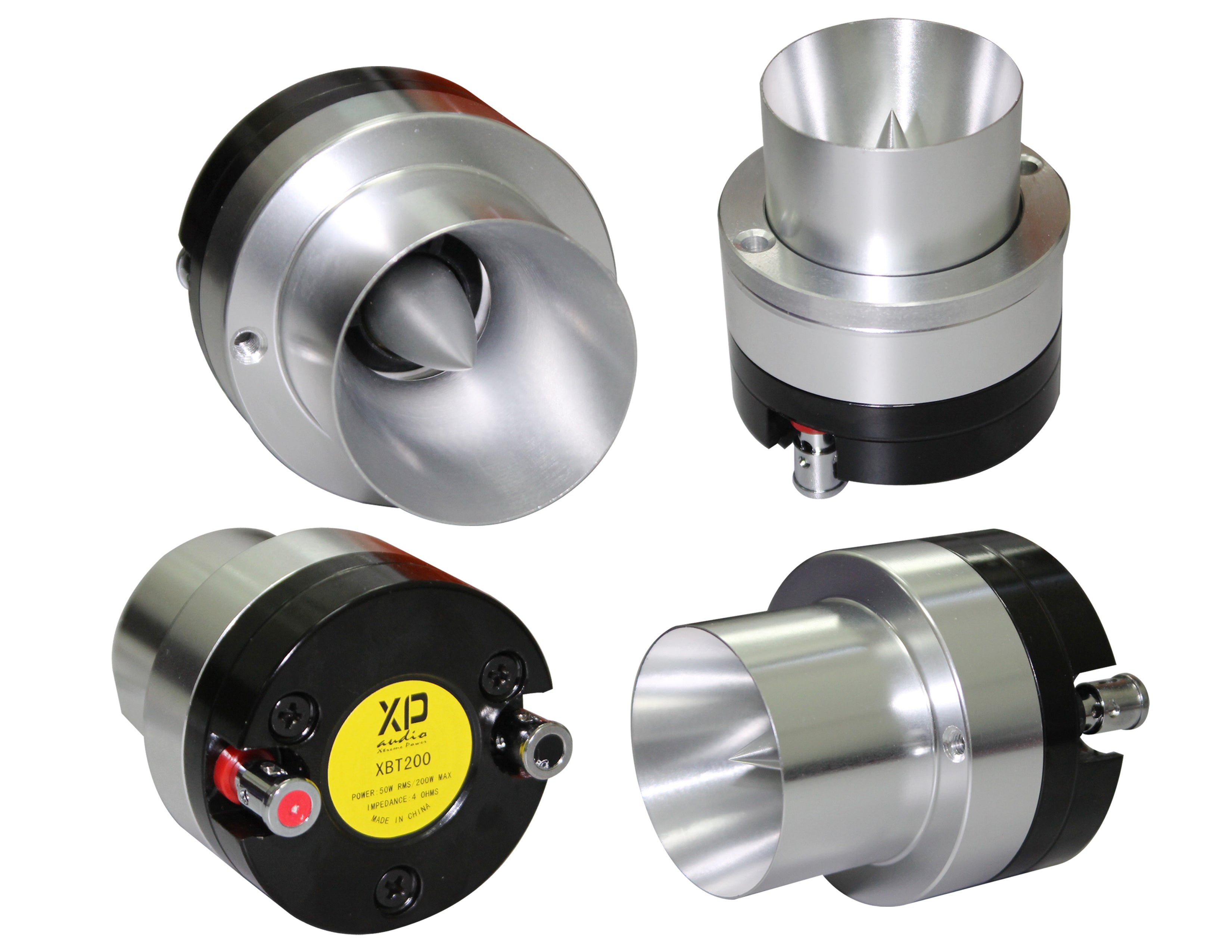

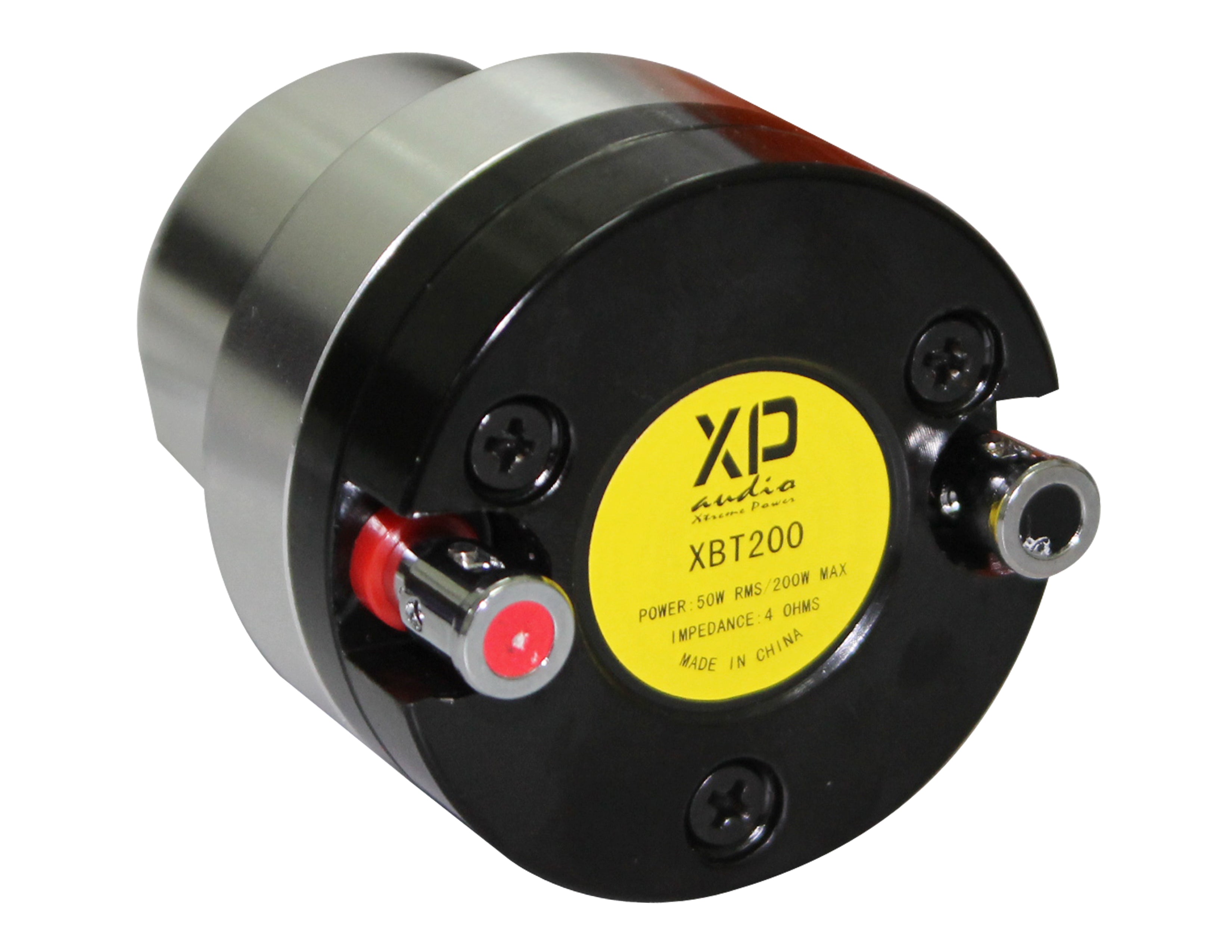

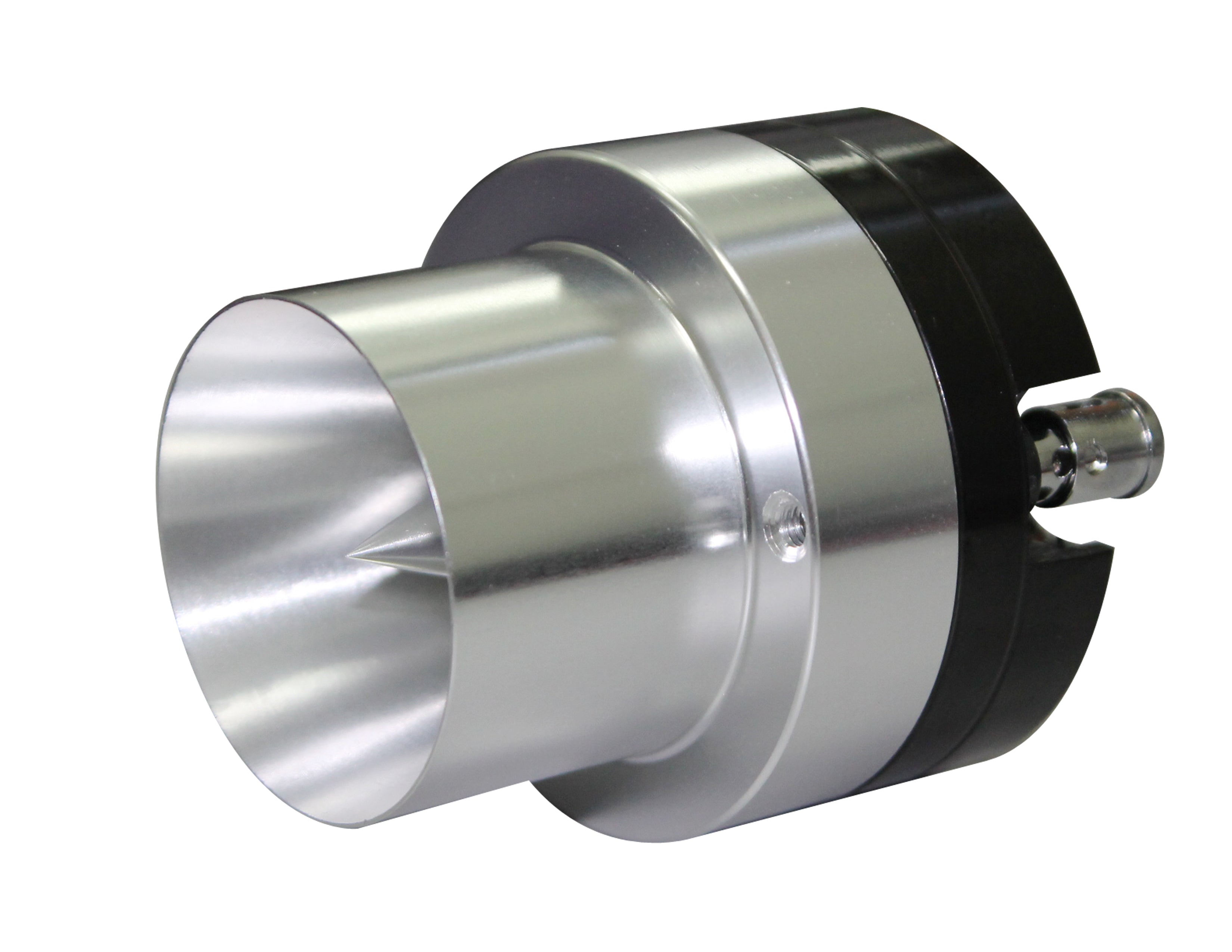

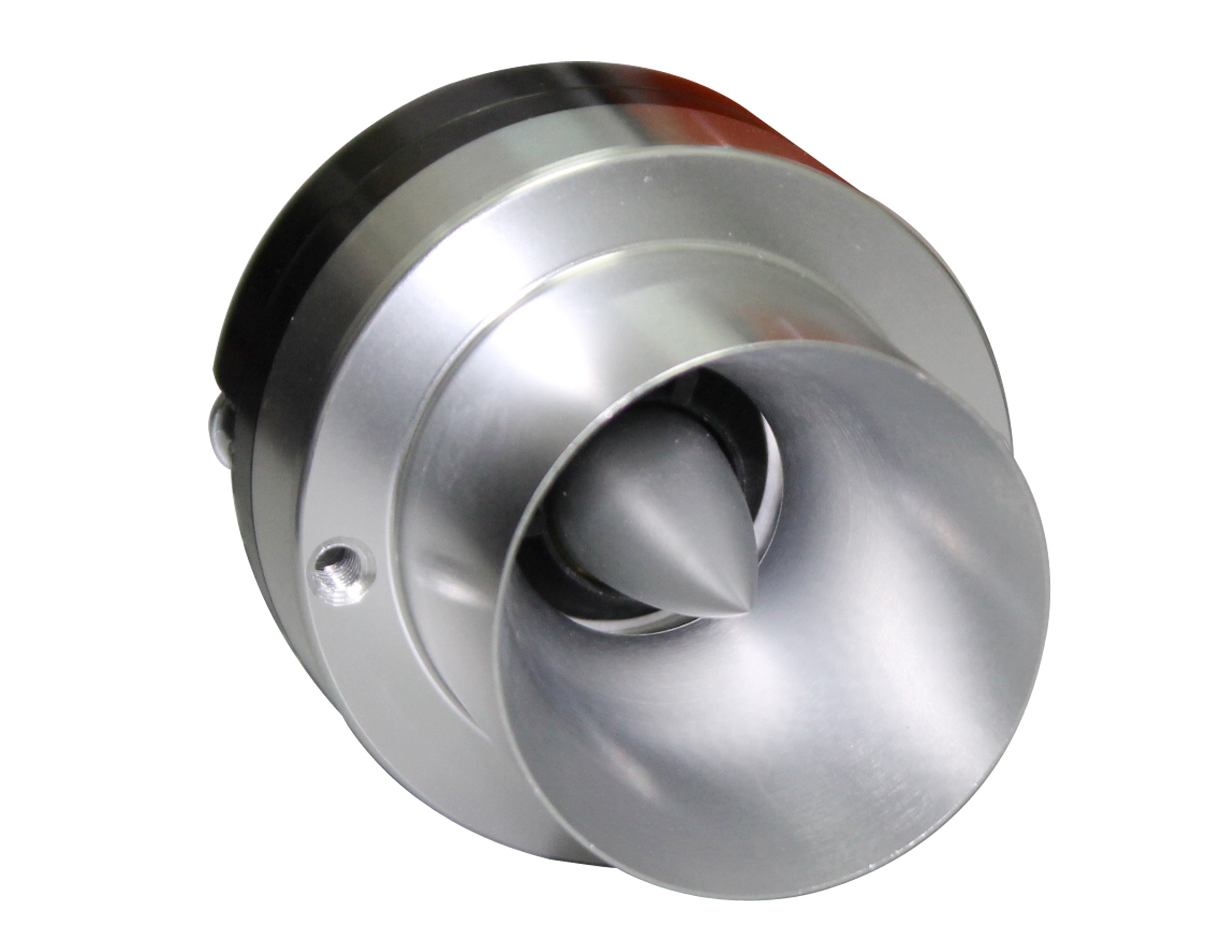

XP Audio XBT200 1" Titanium Bullet High-Compression Super Tweeter - 200W Max, 50W RMS, 4 Ohm

The XP Audio XBT200 is a professional titanium bullet super tweeter designed for high-output car audio systems, custom speaker builds, SPL applications, and other compatible high-frequency installations.

It features a titanium diaphragm, high-compression driver design, 1.75" high-temperature Kapton voice coil, 11 oz ferrite magnet, die-cast aluminum housing, ferro-fluid cooling, and a manufacturer-stated sensitivity of 108 dB. An in-line capacitor crossover is included to help protect the tweeter from lower-frequency signals.

Key Features

🔊 200 WATTS MAX POWER - Manufacturer-rated at 200 watts peak and 50 watts RMS per tweeter for high-frequency applications.

🎵 1" TITANIUM HIGH-COMPRESSION DRIVER - Titanium diaphragm and bullet-style high-compression design provide strong, detailed high-frequency output.

⚡ 4-OHM IMPEDANCE - 4-ohm design makes the XBT200 suitable for many automotive and custom audio systems when properly matched to the amplifier and crossover network.

💪 108 DB HIGH SENSITIVITY - Manufacturer-stated 108 dB sensitivity provides high acoustic output with relatively modest amplifier power.

⚙️ 1.75" HIGH-TEMPERATURE KAPTON VOICE COIL - Designed for reliable operation in demanding high-frequency audio applications.

🧲 11 OZ FERRITE MAGNET - Ferrite motor structure provides strong magnetic force for efficient high-frequency reproduction.

❄️ FERRO-FLUID COOLING - Ferro-fluid voice-coil cooling helps manage heat during extended operation.

🏗️ DIE-CAST ALUMINUM HOUSING - Rigid aluminum construction provides a durable mounting structure for custom audio installations.

✨ DIAMOND-CUT CHROME FINISH - Decorative chrome-style finish gives the tweeter a distinctive appearance for exposed installations.

🔌 IN-LINE CAPACITOR CROSSOVER INCLUDED - Pre-installed capacitor provides basic high-pass protection for the tweeter.

General Features

• 1" titanium bullet super tweeter

• High-compression driver design

• 200 watts maximum stated power

• 50 watts RMS

• 4-ohm impedance

• Titanium diaphragm

• 1.75" high-temperature Kapton voice coil

• 11 oz ferrite magnet

• Die-cast aluminum housing

• Ferro-fluid voice-coil cooling

• Rubber suspension diaphragm

• Diamond-cut chrome finish

• Front-mount design

• High-efficiency SPL configuration

• In-line capacitor crossover included

• Suitable for custom high-frequency audio installations

Specifications

• Brand: XP Audio

• Model: XBT200

• Product Type: Titanium Bullet Super Tweeter

• Quantity: 1

• Tweeter Size: 1" / 25mm

• Tweeter Type: Titanium Bullet High Compression

• Impedance: 4 Ohms

• Maximum Stated Power: 200 Watts

• RMS Power: 50 Watts

• Frequency Response: 2.5 kHz-20 kHz

• Sensitivity: 108 dB (1W/1M) Manufacturer-Stated

• Diaphragm Material: Titanium

• Voice Coil: 1.75" High-Temperature Kapton

• Magnet Type: Ferrite

• Magnet Weight: 11 oz

• Frame Material: Die-Cast Aluminum

• Cooling: Ferro-Fluid

• Finish: Diamond-Cut Chrome

• Overall Depth: 2.71" / 69mm

• Mounting Depth: 1.74" / 44mm

• Overall Width: 2.28" / 58mm

Ideal Applications

• Car audio systems

• SPL systems

• Competition audio builds

• Custom speaker enclosures

• Trucks

• SUVs

• Vans

• Motorcycles

• ATVs

• UTVs

• Compatible marine applications

• Boats

• Custom professional sound systems

Package Includes

• (1) XP Audio XBT200 Titanium Bullet Super Tweeter

Important Installation Note

• The XBT200 is a 4-ohm tweeter and should be connected only to an amplifier or crossover configuration that supports the resulting impedance load.
